LC/APC-LC/APC | 24 Fibers Universal Fanout | Single Mode G657.A2 | 4.8/1.8mm

Product Code MT06756
Lead Time 10 work days
To View the Price, Please Contact Us.

Length

Campaign
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • LC/APC-LC/APC | 24 Fibers Universal Fanout | Single Mode G657.A2 | 4.8/1.8mm

    Features

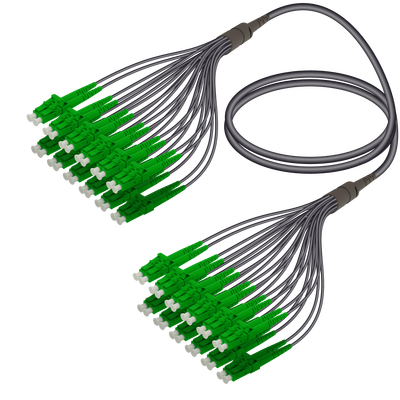

    This universal (indoor/outdoor) fanout assembly has 24 green LC/APC connectors on both sides, and they are connected by 24 single-mode A2 1.8mm fiber cords that have 24 fibers with 9µm core diameter and 125µm cladding diameter, and they are bonded within a 4.8mm main cord. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The connector ferrule on one side is APC, which means it is polished in an 8° angle for a high precision angled physical contact.

    Specifications

    • Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB
    • Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC),  60 dB (APC)
    • Durability: ≥ 1000 mating cycles
    • Flammability: UL94 V-0
    • Operating Temperature: -40°C to +85°C
    • Connector End Face Geometry: IEC 61755-3
    • LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS
    • SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS
    • FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS
    • ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS
    • E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS
    Packing Weight (Kg)
    0.45
