LC/UPC-LC/UPC | Multi Mode G651.OM4 Corrugated Steel FTTA Breakout | 7.0x2.85mm

Name: LC/UPC-LC/UPC | Multi Mode G651.OM4 Corrugated Steel FTTA Breakout | 7.0x2.85mm
Brand: Samm Teknoloji
SKU: T940
Price: 1080.07 ₺
Availability: InStock

Product Code

T940

Lead Time

5 work days

To View the Price, Please Contact Us.

{"vat":20,"m_o_p":0,"variant_ids":{"151_0":"8114","150_0":"8113","158_0":"8112","157_0":"8107","159_0":"8111","195_0":"8110","194_0":"8109","193_0":"8108","192_0":"8106","197_0":"8115","201_0":"8116","200_0":"8117","199_0":"8118","198_0":"8119"},"variant_prices":{"151_0":900.057213,"150_0":1156.901913,"158_0":1413.746613,"157_0":1670.591313,"159_0":1927.436013,"195_0":2184.280713,"194_0":2441.125413,"193_0":2697.970113,"192_0":2954.814813,"197_0":3468.504213,"201_0":3982.193613,"200_0":4495.883013,"199_0":5009.572413,"198_0":5523.261813},"variant_price_raws":{"151_0":24.53,"150_0":31.53,"158_0":38.53,"157_0":45.53,"159_0":52.53,"195_0":59.53,"194_0":66.53,"193_0":73.53,"192_0":80.53,"197_0":94.53,"201_0":108.53,"200_0":122.53,"199_0":136.53,"198_0":150.53},"buying_prices":{"151_0":0,"150_0":0,"158_0":0,"157_0":0,"159_0":0,"195_0":0,"194_0":0,"193_0":0,"192_0":0,"197_0":0,"201_0":0,"200_0":0,"199_0":0,"198_0":0},"not_discounted_prices":{"151_0":900.057213,"150_0":1156.901913,"158_0":1413.746613,"157_0":1670.591313,"159_0":1927.436013,"195_0":2184.280713,"194_0":2441.125413,"193_0":2697.970113,"192_0":2954.814813,"197_0":3468.504213,"201_0":3982.193613,"200_0":4495.883013,"199_0":5009.572413,"198_0":5523.261813},"variant_supplier_codes":{"151_0":"MT11109","150_0":"MT11110","158_0":"MT11111","157_0":"MT11112","159_0":"MT11113","195_0":"MT11114","194_0":"MT11115","193_0":"MT11116","192_0":"MT11117","197_0":"MT11118","201_0":"MT11119","200_0":"MT11120","199_0":"MT11121","198_0":"MT11122"},"active_ids":{"one_151":["0"],"two_0":["151","150","158","157","159","195","194","193","192","197","201","200","199","198"],"one_150":["0"],"one_158":["0"],"one_157":["0"],"one_159":["0"],"one_195":["0"],"one_194":["0"],"one_193":["0"],"one_192":["0"],"one_197":["0"],"one_201":["0"],"one_200":["0"],"one_199":["0"],"one_198":["0"]},"variant_informations":{"151_0":{"additional_information":""},"150_0":{"additional_information":""},"158_0":{"additional_information":""},"157_0":{"additional_information":""},"159_0":{"additional_information":""},"195_0":{"additional_information":""},"194_0":{"additional_information":""},"193_0":{"additional_information":""},"192_0":{"additional_information":""},"197_0":{"additional_information":""},"201_0":{"additional_information":""},"200_0":{"additional_information":""},"199_0":{"additional_information":""},"198_0":{"additional_information":""}},"variant_stocks":{"151_0":"50","150_0":"50","158_0":"50","157_0":"50","159_0":"50","195_0":"50","194_0":"50","193_0":"50","192_0":"50","197_0":"50","201_0":"50","200_0":"50","199_0":"50","198_0":"50"}}

Length

Features
Documents
Comments (0)
Refund Terms
Request for Quote

LC/UPC-LC/UPC | Multi Mode G651.OM4 Corrugated Steel FTTA Breakout | 7.0x2.85mm
Features

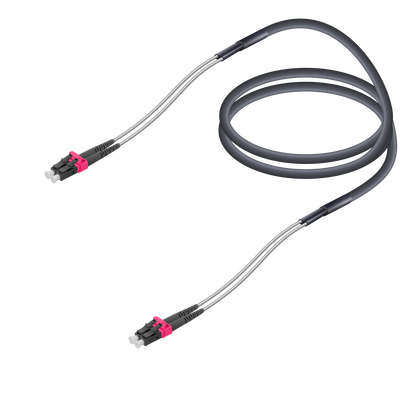

This 7.0mm universal (indoor/outdoor) FTTA breakout with corrugated steel has two multi-mode violet LC/UPC connectors on each side, and they are connected by two multi-mode OM4 fibers with 50µm core diameter and 125µm cladding diameter.

LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The UPC ferrule of each side connector means its surface is straightly polished for ultra physical contact. Duplex means the cord has two fiber cables bonded together and that it can be used with Rx and Tx systems.

Specifications

Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB

Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC)

Durability: ≥ 1000 mating cycles

Flammability: UL94 V-0

Operating Temperature: -40°C to +85°C

Connector End Face Geometry: IEC 61755-3

LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS

SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS

FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS

ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS

E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS

Packing Weight (Kg)
0.2
Fiber Optic Universal Breakout | Multi Mode 7.0mm | Datasheet
