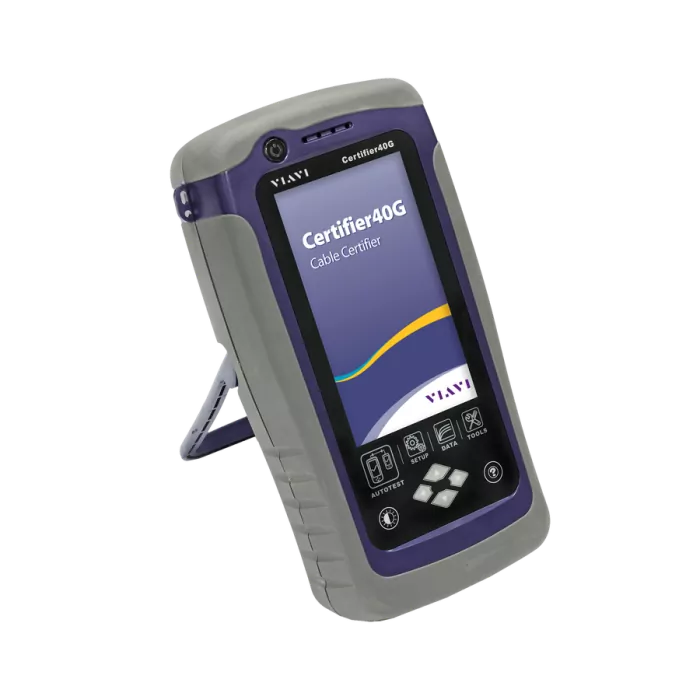

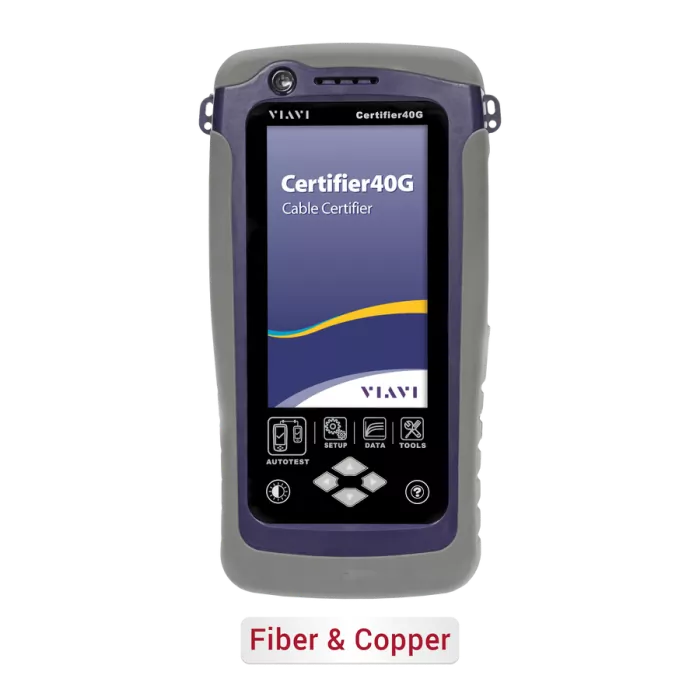

Certifier 40G

VIAVI Certifier40G is one of the best copper and fiber certification devices. Certifier40G provides technicians with all the capabilities they need to certify both copper and fiber optic networks. 40G copper and fiber certifier can tests many types of networks quickly, completely, and correctly, and it is compatible with all current and future cabling standards for new enterprises.

The VIAVI Certifier40G is the most advanced solution available and it is also the fastest and most complete. Whether certifying copper cables or fiber optic cables, users can get the job done quickly and right from the first test.

VIAVI Certifier40G Drive User Efficiency

The Certifier40G is not only the most advanced solution available, it is also the fastest and most complete. Whether certifying copper or fiber, users will get the job done right and on time, from the first time!

• The industry’s fastest CAT6A solution can certify each cable
• within 9 seconds, saving users 30 minutes each time they
• test 150 CAT6A cables
• Tier 1 certification of multimode, single-mode, and multimode MPO fiber in less than 6 seconds
• Automate pass/fail end-face analysis for all fiber types
• Gain complete test visibility at both local and remote ends
• Pre-configured with all leading manufacturer’s cabling specifications

VIAVI Certifier40G Key Benefits

• Achieve complete network certification with one device
• Optimize productivity with the industry’s fastest test workflow
• Obtain comprehensive results for the latest TIA-568 and ISO 11801 requirements
• View test set up and results data and edit labels at both local and remote ends

VIAVI Certifier40G Key Features

• Permanent link and channel adapters for certifying to TIA category 5e/6/6A and ISO class D/E/EA/F/FA
• Multimode (850/1300 nm) and singlemode (1310/1550 nm) adapters for Tier 1 fiber certification (loss/length/polarity)
• Multimode (850 nm) MPO adapters for certifying and troubleshooting MPO links and trunks
• Industry-leading JDSU P5000i digital fiber end-face inspection probe support
• Integrated, standards-based certification labeling and reporting

VIAVI Certifier40G Key Applications

• Complete TIA 568/ISO 11801 copper and fiber certification
• TIA-942-A data center certification
• Certify plug-and-play (trunk/cassette) fiber connectors with MPO connectors
• Objective pass/fail testing for IEC 61300-3-35 fiber end-face requirements

VIAVI Certifier40G is The Only Category-8-Ready Certifier

Copper cabling systems are rapidly evolving to support the new enterprise. With the IEEE working to ratify 802.3bq (40GBASE-T), and TIA moving quickly to ratify Category 8 cabling systems, the need to test cabling systems to beyond 2000 MHz is on the horizon. The Viavi Certifier40G is the only certification tool on the market today that is ready for these new standards. The Viavi Certifier40G has been ETL verified to ANSI/TIA-1152 Level IIIe, IEC 61935-1 Levels IIIe and IV, and Level V draft accuracy specifications. The current IEC 61935-1 proposed Level V draft accuracy standard addressed the needs up to Class FA (1000 MHz). The Viavi Certifier40G is accurate beyond 2000 MHz and, therefore, will support the latest standards being developed to protect your investment.

VIAVI Certifier40G Inspects Fiber End Faces with Pass/Fail Analysis

Dirty connectors are the number one cause for troubleshooting in optical networks. Microscopic dirt particles create enough signal loss and back reflection to cause significant network errors and downtime. Proactively inspecting fiber end faces is critical for testing and certifying a fiber network. The Telecommunications Industry Association (TIA) recently revised TIA-568 to establish quality and cleanliness acceptance criteria for fiber connector end faces when testing optical connections. Whether using TIA-568 or customerspecific requirements, users can easily inspect and certify fiber connector end faces with automated pass/fail analysis at the push of a button on the Certifier40G to get the job done quickly and correctly.

• The industry’s only modular certifier with MPO test capability
• Test MPO to LC/SC
• Discover or ensure correct polarity with Fiber Map
• Conduct 5-second loss and polarity tests on 12 fibers
• Display absolute and relative power levels
• Measure MPO power on live systems

VIAVI Certifier40G Easily Tests 10/40/100 G MPO Links

In new enterprise architectures, the use of parallel optics has become essential to achieve the demand for high-speed 40 G and 100 G transmission. From active media incorporating quadrature small form-factor pluggable (QSFP) transceivers to using trunk cables and cassettes, MPO connectivity is essential for delivering speeds of 40 G and beyond in the enterprise.

• Prove compliance to the new TIA-568 end-face inspection requirements
• Get fast results at the push of a button
• Eliminate subjectivity with automated pass/fail analysis
• Ensure your network is optimized for a lifetime of performance
• Prevent costly network downtime and time-consuming troubleshooting

VIAVI Certifier40G Details

• State-of-the-art, high resolution, color touch screen
• No protruding adapter increases ruggedness
• Performs 9 second CAT-6A test and 15 second Class-FA test
• Supports USB memory stick for simple file transfer
• One screen keypad simplifies entering data
• From Viavi, the global leader in communications test and measurement
• Identical main and remote with Touch2 simplify control from both ends
• Future-proof measurement engine tests well-beyond 1 GHz
• Field-rugged, costeffective permanent link adapter
• Large memory capacity for results storage
• Complete planning and reporting software
• Upgradeable for fiber testing and inspection
• Exceeds Level-IV accuracy
