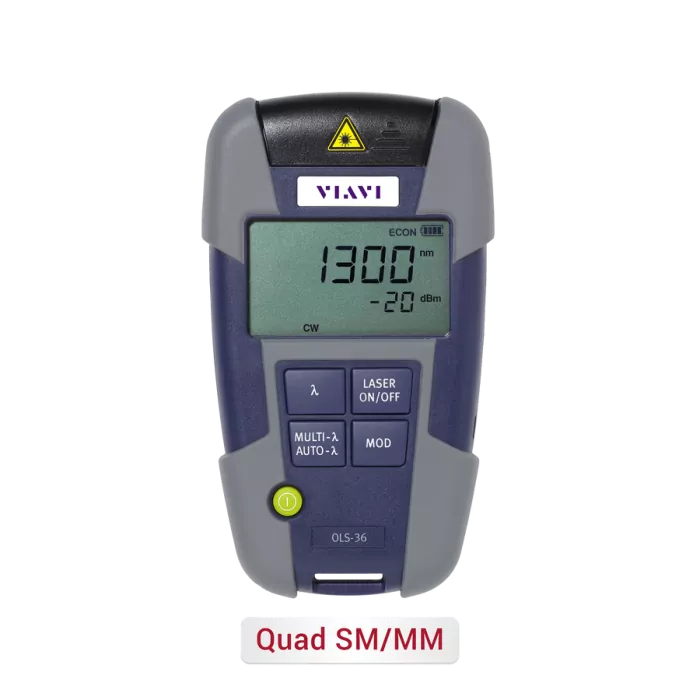

OLS-36 Optical Light Source | Quad SM/MM

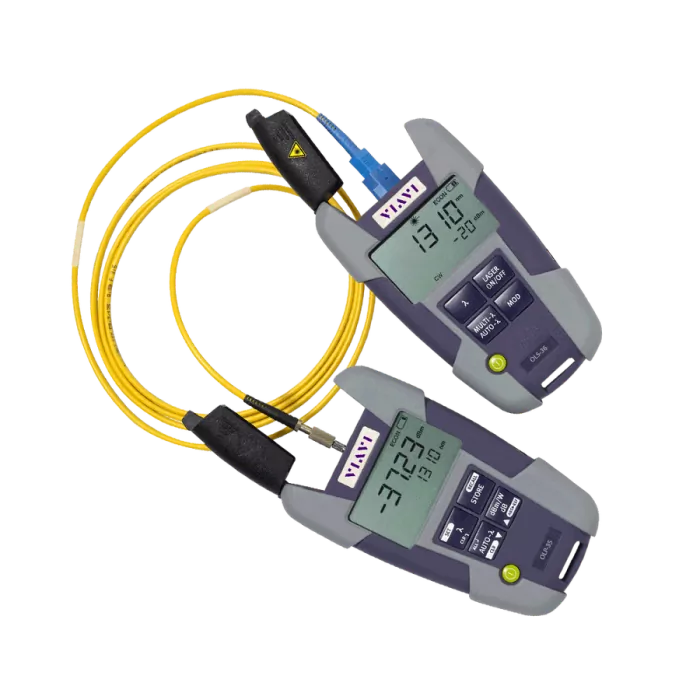

FeaturesOLS-36 is a quad-wavelength solution for both multi-mode and single-mode with 850/1300/1310/1550 nm wavelengths, it also has fixed ST and LC adapters, and switchable FC, SC, ST and LC adapters. OLS-36 optical light source is small, shock resistant, water splash resistant and can be powered by Micro USB and AA batteries, for 30 hours. SmartPocket small and rugged optical light source VIAVI OLS-36 is used with power meters for testing loss and continuity in fiber optic networks.
VIAVI OLS-36 Benefits
- Cost-effective, rugged, and compact
- Switchable optical adapters for maximum flexibility
- Auto λ and TwinTest transmission modes
- 3-year calibration
- Combines up to 4 wavelengths in MM and SM
VIAVI OLS-36 Applications
- Link insertion loss measurements
- Continuity checks
- Enterprise/LAN networks
- 850/1300/1310/1550 nm wavelengths
- Access and metro (LAN/WAN) networks
- Standard single-mode wavelengths for telecom, CATV, and military application
OLS-34
Multimode Light SourceOLS-35
Single-Mode Light SourceOLS-36
Quad Light SourceSource type LED Laser LED/Laser Laser safety IEC 60825-1: 2003
IEC 60825-1: 2007IEC 60825-1: 2007 IEC 60825-1: 2003
IEC 60825-1: 2007Fiber type MM (50/125 μm) SM (9/125 μm) MM (50/125 μm)/SM (9/125 μm) Optical interface type PC/1 single port for all wavelengths PC/1 single port for all wavelengths PC/1 port for MM and 1 port for SM Optical interface connectors Fixed: ST
Switchable: LC, FC, SC, STFixed: LC
Switchable SC, FC, ST, LCSwitchable: SC, FC, ST, LC Central wavelength 850 nm (±20 nm)
1300 nm (–20 nm/+40 nm)1310 nm (±20 nm)
1550 nm (±20 nm)850 (±20 nm)
1300 (–20 nm/+40 nm)
1310 (±20 nm)
1550 (±20 nm)Spectral width1 <170 nm <5 nm <170 nm/<5 nm Output power –20 dBm2 –7 dBm –20 dBm2/–7 dBm Stability short term (15
min)3±0.02 dB ±0.02 dB ±0.02 dB Stability long term (8h)3 ±0.05 dB ±0.05 dB ±0.05 dB Tone generation 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz Auto λ mode4 Yes Yes Yes Multi λ mode4 Yes (2 λs) Yes (2 λs) Yes (4 λs) Launch conditions CPR capability for MM launch
conditionsCPR capability for MM launch
conditions
