LC/UPC-LC/UPC | Multi Mode G651.OM3 Universal FTTA Breakout | 7.0x2.0mm
Features

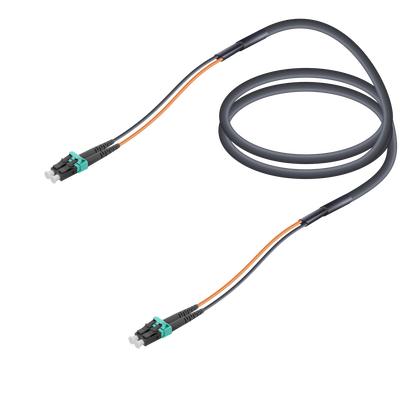

This 7.0mm universal (indoor/outdoor) FTTA breakout has two multi-mode aqua LC/UPC connectors on each side, and they are connected by two multi-mode OM3 fibers with 50µm core diameter and 125µm cladding diameter.

LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The UPC ferrule of each side connector means its surface is straightly polished for ultra physical contact. Duplex means the cord has two fiber cables bonded together and that it can be used with Rx and Tx systems.

Specifications

Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB

Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC)

Durability: ≥ 1000 mating cycles

Flammability: UL94 V-0

Operating Temperature: -40°C to +85°C

Connector End Face Geometry: IEC 61755-3

LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS

SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS

FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS

ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS

E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS

Packing Weight (Kg)
0.2
Fiber Optic Universal Breakout | Multi Mode 7.0mm | Datasheet
