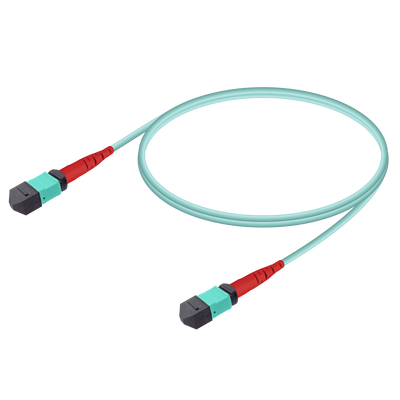

MTP Elite Male-Male Patch Cord | Base-24 | Multi-Mode G651.OM3 | 3.0mm

Product Code MT07810
Lead Time 5 work days
To View the Price, Please Contact Us.

Length

Campaign
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • MTP Elite Male-Male Patch Cord | Base-24 | Multi-Mode G651.OM3 | 3.0mm

    Features

    This MTP to MTP patch cord has one Male Base-24 MTP connector on each side, and they are connected by a Multi-mode OM3 fiber cord that has 24 fibers with 50µm core diameter and 125µm cladding diameter.

    The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12 or 24 fibers in a single connector, and provide a great 'space advantage' especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response.

    Features

    • Lower Insertion Loss & Higher Performance
    • Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942
    • Low IL and stable signal transmission ensuring your network safety
    • High-quality MTP connectors and guaranteed by 3D interferometer
    • 100% factory tested

    Applications

    • QSFP+ to QSFP+ Connection
    • QSFP to QSFP Connection
    • 40GE to 40GE Interconnection
    • PSM4 to PSM4 Connection
    • 4x25G to 4x25G connection
    • 400G to 400G Interconnection

    Specifications

    Insertion Loss (IEC 61300-3-4-Method-B) Average: 0.10 dB, Max: 0.35 dB
    Return Loss (IEC 61300-3-6-Method-B) ≥ 60 dB
    Durability >100 mating cycles
    Flammability UL94 V-0
    Operating Temperature -10°C to +70°C
    Cable Diameter 3.0 mm
    MTP Connector Compliance IEC 61754-7, TIA 604-5, RoHS

    Fiber Structure for Transceiver Modules

    TRANSCEIVER FORM FACTOR CONNECTOR FIBER COUNT FIBER TYPE
    100G CFP/CFP2/CPAK SR10 / XSR10 24F MTP (MPO) 20 OM3/OM4
    SR4 CPAK 12F MTP (MPO) 12 OM3/OM4
    SR4 / XSR4 QSFP28 12F MTP (MPO) 8 OM3/OM4
    PSM4 QSFP28 12F MTP (MPO) 8 OS2
    CWDM4  QSFP28 LC 2 OS2
    LRL4 CFP2/CPAK/QSFP28 LC 2 OS2
    SWDM4 QSFP28 LC 2 OM3/OM4
    SR-BD QSFP28 LC 2 OM3/OM4
    40G SR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4
    40G-C/X/ESR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4
    BIDI QSFP+ LC 2 OM3/OM4
    LX4 QSFP+ LC 2 OM3/OM4
    UNIV QSFP+ LC 2 OM3/OM4, OS2
    LR4 / LRL4 / IR4 QSFP+ LC 2 OS2
    SWDM4 QSFP+ LC 2 OM3/OM4
    PLRL4 / PLR4 QSFP+ 12F MTP (MPO) 8 OS2
    4x10G IR / LR QSFP+ 12F MTP (MPO) 8 OS2
    10x10G LR  CPAK 24F MTP (MPO) 20 OS2
    25G SR SFP28 LC 2 OM3/OM4
    LR SFP28 LC 2 OM3/OM4
    10G SR SFP+ LC 2 OM3/OM4
    LR SFP+ LC 2 OM3/OM4
    1G SX SFP LC 2 OM3/OM4
    LX SFP LC 2 OS2



    Packing Weight (Kg)
    0.2
