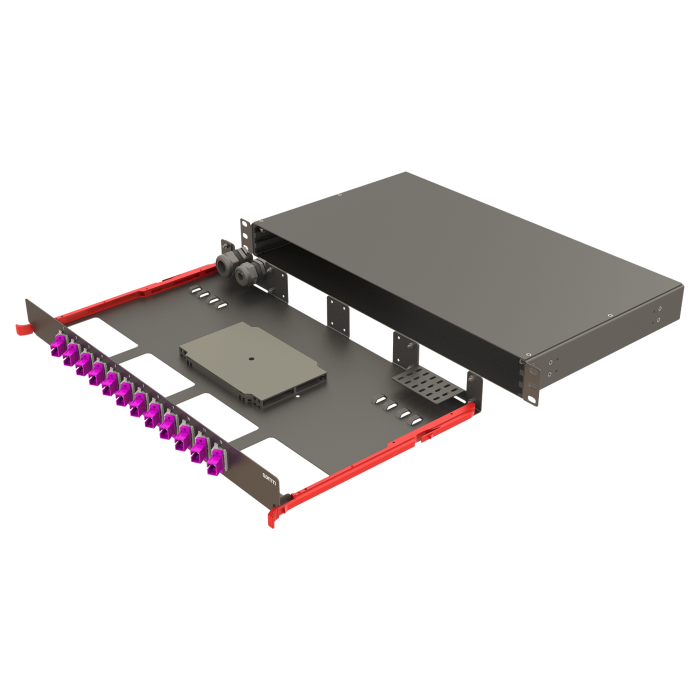

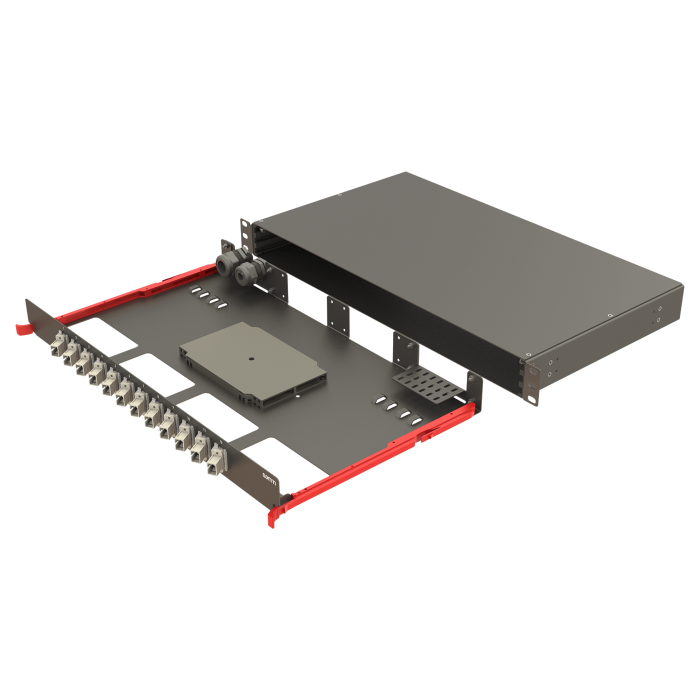

Bright Series | Rail Sliding | 12 Angled SC Simplex | FP09 | 12 FiberFeatures
Fixed-Type Bright Series Rail-Sliding FP09 Patch Panel Systems are designed for termination of up to 12 optical fibers according to the SC adapter. These panels can be opened and closed on a plastic rail mechanism.
These panels are used in telecom rooms, main distribution rooms and system rooms to terminate, distribute and manage fiber optic infrastructure in many different applications.
- Easy manage patch cables with angled adapter clips.
- Different cable entry options
- Special plastic rail and locking mechanism
- Robust and installer-friendly design - providing reduced installation and operating costs
- Different rear cable entry options with PG16 and PG13.5 gland holes
- Screwable desing for adapters on front plates
- Patented adapter clips for angled applications
- Removable shelf design for installation easiness
- Powder-coated RAL 9000 (Black)
- Operating temperature: -20°C / +80°C
- 1 pc - FP09 Panel
- 1 pc - BS-REP_SET_02
- 1 pc - BS-REP_SET_03
- 1 pc - Rack Mounting Set
- 4 pc - Tire Wrap
- 1 pc - BS-SPLKIT1-12F-1T-BLK
- 12 pc - SC Simplex Adapters pre-assembled with screws
- 12 pc - SC Pigtail (Un-assembled)
Packing Size (cm) Packing Weight (Kg) 50 x 28 x 6 2.53
