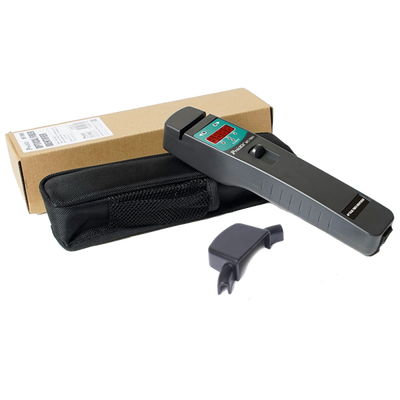

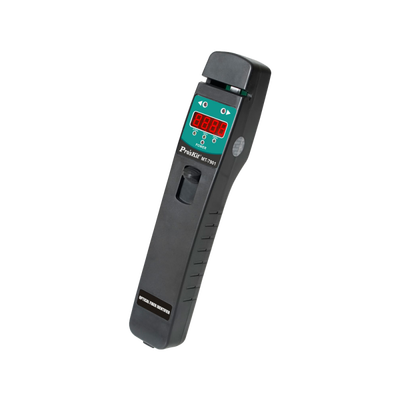

Fiber Optic Live Identifier | MT-7901

Product Code MT08823
Remaining Stock 0
To View the Price, Please Contact Us.
Campaign
Alarm Icon Heart icon
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • Fiber Optic Live Identifier | MT-7901

    Features

    MT-7901 optical fiber identifier can perform live fiber identification and detection without no damage to fibers, MT-7901 can detect optical signals without disrupting traffic.

    Features

    • Indicate the signal direction in fiber
    • Detect a variety of optical tones,270Hz, 1kHz and 2kHz;
    • Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, and no need to replace the clamp block, more convenient than others
    MT-7901 Optical Fiber Identifier Specs
    Sensitivity 250um fiber@1550nm=-35dBm
    900um fiber@1550nm=-35dBm
    2.5mmmm fiber@1550nm=-30dBm
    Max. Input +5dBm
    Wave Respond 800nm~1700nm
    Clamp Loss <2.5db Typical
    Power Supply AA Alkaline Cell or Ni-Mh Cell
    Frequency Identify 270Hz/1KHz/2KHz
    Fiber Type Dia. 250um/900um/2.5mm/3mm SM fiber
    Sound  Yes
    Fiber Press <100KPSI
    Auto Power Off Yes
