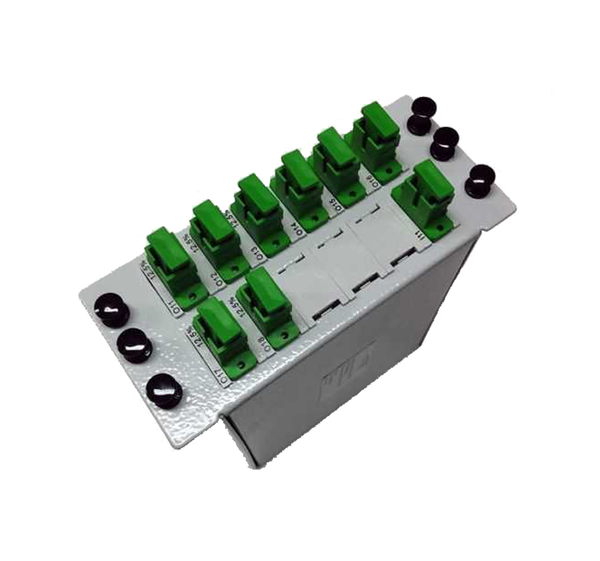

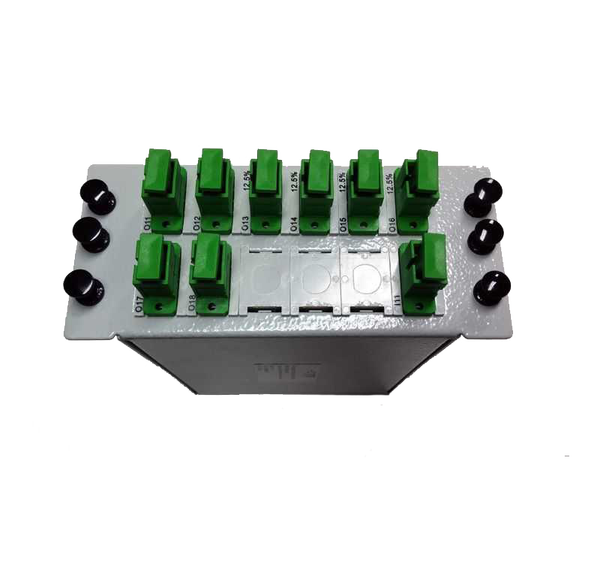

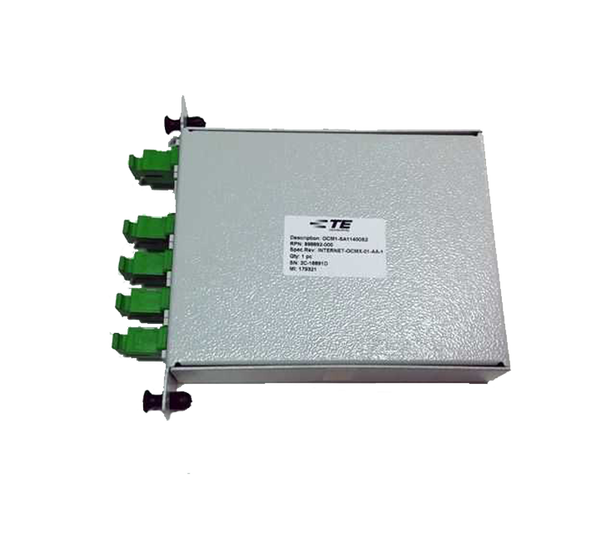

LGX Module Type Splitter

Product Code : F-SPL-CABINET
Request for Quote
Campaign
  • Features
  • Comments (0)
  • Request for Quote
  • LGX Module Type Splitter

    Features

    The cassette shaped optical passive splitter, which is designed for fiber optic distribution panels, cabinet, boxes and closures, uses PLC (Planar Light-wave Circuit) to distribute the optical power 1 input to desired number of ports with a compact body. Compact optical splitter using PLC (Planar Light-wave Circuit) and suitable for installation in optical equipment. This splitter is the best choice for constructing Passive Optical Networks. Generic specifications 1xn standard and premium grade Without connector loss.

    Features

    • Compact packaging size
    • Efficient for usage in optical equipment
    • High reliability
    • Low Insertion Loss.
    • Suitable for Installation In a splicing closure.
    • High reliability
    • Can be mounted on shelves or cabinets.
    Parameter Unit 1 x 2 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64
    Operating wavelength nm 1260 – 1650
    Insertion loss standard grade dB ≤ 4.0 ≤ 7.3 ≤ 10.5 ≤ 13.8 ≤ 17.0 ≤ 20.6
    Uniformity standard grade dB ≤ 0.6 ≤ 0.6 ≤ 0.8 ≤ 1.2 ≤ 1.5 ≤ 1.8
    PDL standard grade dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3
    Insertion loss premium grade dB ≤ 3.8 ≤ 7.0 ≤ 10.2 ≤ 13.5 ≤ 16.8 ≤ 20.3
    Uniformity premium grade dB ≤ 0.5 ≤ 0.5 ≤ 0.8 ≤ 1.2 ≤ 1.2 ≤ 1.8
    PDL premium grade dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.3
    Return loss dB ≥ 55
    Directivity dB ≥ 55
    Operating temperature °C –40 to +85
    Package dimension (L x W x H) mm 40 x 4 x 4 47 x 7 x 4 58 x 12 x 4
