M29504/14 and /15 Military Fiber Optic Termini
| Product Code | MT12591 |
| Remaining Stock | 0 |
Military Termini
- Features
- Comments (0)
- Request for Quote
-
M29504/14 and /15 Military Fiber Optic Termini

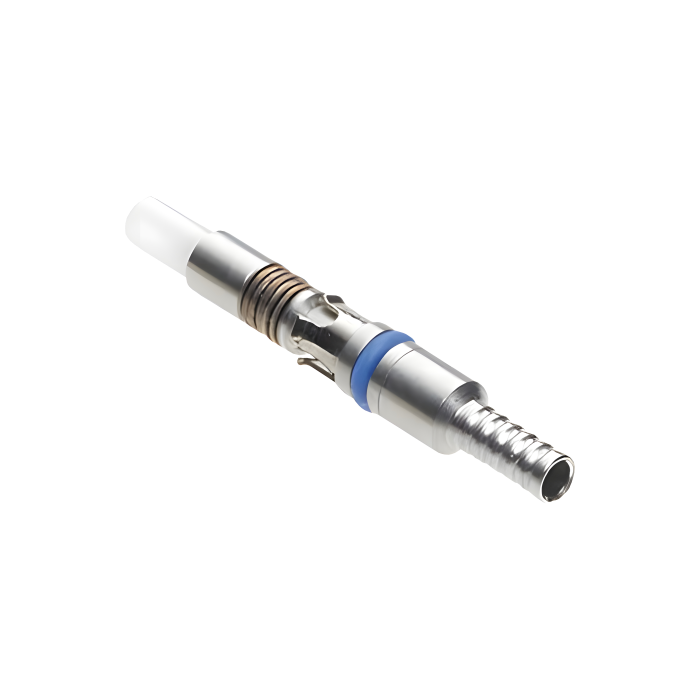

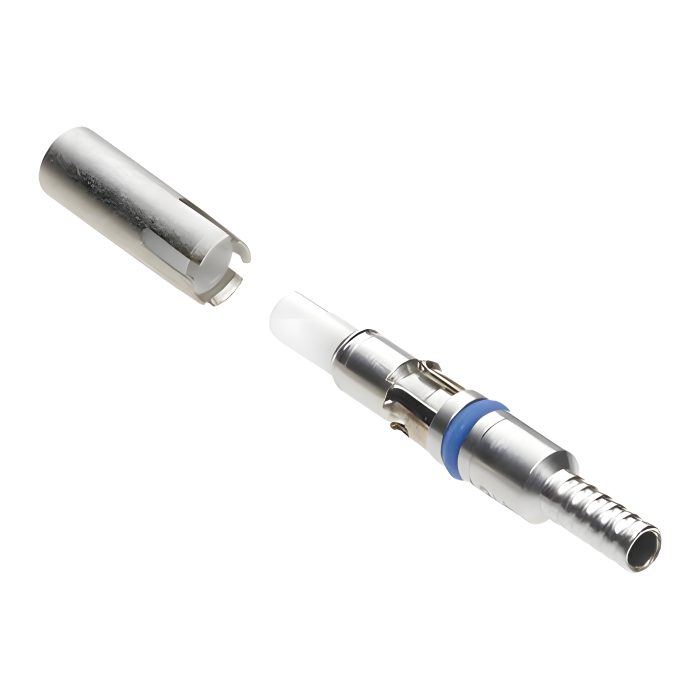

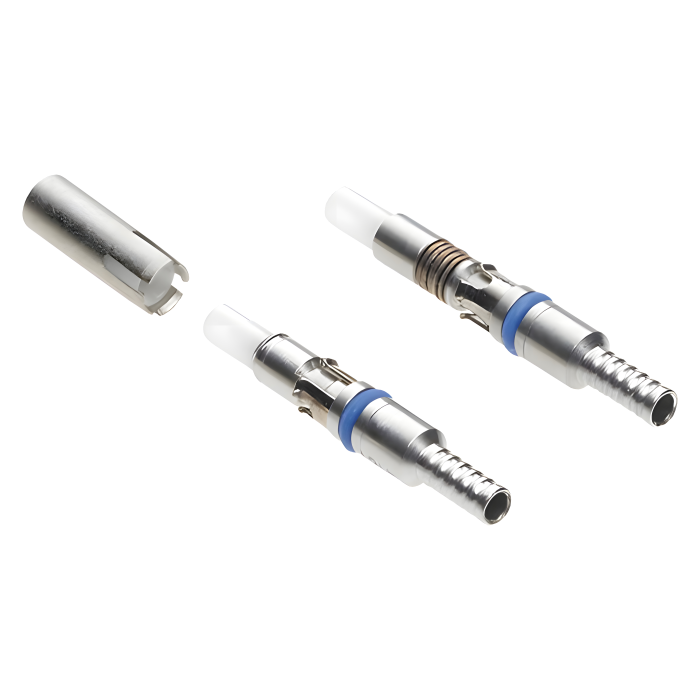

FeaturesMIL-PRF-29504/14 and /15 fiber optic termini are designed for outstanding optical performance in extreme environments.
M29504/14 & /15 termini are qualified to MIL-PRF-29504B specifications. This series of fiber optic termini provide superior optical and mechanical performance and are compatible with M28876 and comparable military-style connectors. MIL-PRF-29504B QPL listed.
The M29504/14 and /15 termini design features pre-radius 2.00mm zirconia ultra high-tolerance ferrules, an enhanced cable retention using serrated crimp areas and removable captivated split alignment sleeves.
Performance Specification – M29504/14 PINS and M29505/15 SOCKETS
Metric
Parameters
Operating Temperature
-65°C to +150°C (dependent on epoxy and cable)
Thermal Cycling
-54°C to +65°C
Thermal Shock
-55°C to +85°C
Temperature Life
+110°C for 240 hours
Vibration
68 G random
Physical Shock
500 G
Mating Durability
500+ cycles
Salt Spray
500 hours
Pressure Sealing
32psi, (2,000 psi with wiper seal option)
Terminus Mating Force
5 lbs. [22.2 N] nominal
Terminus Retention Force
22 lbs. [97.9 N]
Cable Retention Force
25 lbs. [111.2 N] (dependent on cable construction)
Weight
0.7 grams max
Standard Materials and Finishes
Description
Material
Finish
Terminus Bod
Stainless Steel
Passivated
Alignment Sleeve
Zirconia
None
Alignment Sleeve Hood
Beryllium Free
Nickel Plated
Ferrule (bushing)
Zirconia
None
Retaining Clip
Beryllium Free
None
Belleville Springs
Beryllium Free
None
-Ring Seal
Fluorosilicone
None
Optical Performance
Fiber Size
Insertion Loss (Max.)
Insertion Loss (Typ.)
9/125
*-0.75 dB
*-0.35 dB
50/125
*-0.75 dB
*-0.35 dB
62.5/125
*-0.75 dB
*-0.35 dB
Back Reflection (BR) – Single-Mode
Fiber Type
Back Reflection (dB)
Single-mode
≤ -40 dB (PC Finish)
Single-mode
≤ -50 dB (UPC Finish)
