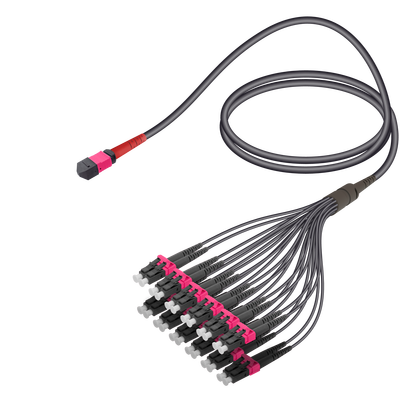

Male MTP Elite to LC/UPC Universal Fanout | Base-24 | Multi Mode G651.OM4 | 4.8/1.8mm

Product Code MT10861
Lead Time 10 work days
To View the Price, Please Contact Us.

Length

Campaign
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • Male MTP Elite to LC/UPC Universal Fanout | Base-24 | Multi Mode G651.OM4 | 4.8/1.8mm

    Features
    MTP to 24-LC Fanout yapıları toplam 25 adet konnektörden oluşur. Multi Mode kablo G651. OM4 fiberlerden oluşur. OM4 fiberler 50 µm core; 125 µm cladding çapına sahiptir. MTP konektör, daha iyi mekanik ve optik performans için tasarlanmış yüksek performanslı bir MPO (Multifiber Push On) konnektördür. MTP konnekörler 8, 12 veya 24 fiberi tek bir konnektörde sonlandırabilir. Özellikle veri merkezlerinde büyük bir 'yer avantajı' sağlar.

    MTP Erkek konnekörde iki adet pin bulunurken; MTP Dişi konnektörde karşılık olarak iki adet pin yuvası bulunur. LC Konnektör (Lucent Connector), 1.25mm çaplı ferul yapısına sahiptir, SC konnektörün tam yarısı kadar taban alanına sahiptir; UPC ise konnektörün içindeki seramik ferül yapısının ekstra parlatılmış düz bir yapıya sahip olduğunu ifade eder (Ultra Physical Contact).

    MTP/LC Fanout'u oluşturan ana kablo 24 fiberli olup 4.8mm çapa sahiptir. Bir ucunda 'divider' denilen yapı bulunur ve fiberleri 24 farklı tüpe ayırır. Tüplerin çapı 1.8mm'dir.

    Özellikler

    • Düşük Insertion Loss ve Yüksek Verimlilik
    • ANSI / TIA-568-C.3,
    • IEEE 802.3ba
    • ANSI / TIA-942'ye bağlı
    • 3D interferometre ile 100% garanti verilir
    • 100% fabrika testi

    Uygulamalar

    • CFP to CFP+ Connection
    • CFP+ to CFP+ Connection
    • CXP to CXP Connection
    • 10x10G to 10x10G connection
    • 100G to 100G Interconnection

    Detaylar

    Yansıma Kaybı (IEC 61300-3-4-Method-B) MTP: ≤0.35 dB, avg:0.1 dB
    LC: ≤0.40 dB
    Geri Dönüş Kaybı (IEC 61300-3-6-Method-B) MTP: ≥ 20 dB
    LC: ≥ 40 dB
    Sağlamlık >100 mating cycles
    Yanmazlık UL94 V-0
    Çalışma Sıcaklığı -10°C to +70°C
    Kablo Çapı 4.8 mm
    MTP Konnektör Uyumluluğu IEC 61754-7, TIA 604-5, RoHS


    Transceiver Modüller'in Fiber Optik Yapıları

    TRANSCEIVER FORM FACTOR CONNECTOR FIBER COUNT FIBER TYPE
    100G CFP/CFP2/CPAK SR10 / XSR10 24F MTP (MPO) 20 OM3/OM4
    SR4 CPAK 12F MTP (MPO) 12 OM3/OM4
    SR4 / XSR4 QSFP28 12F MTP (MPO) 8 OM3/OM4
    PSM4 QSFP28 12F MTP (MPO) 8 OS2
    CWDM4  QSFP28 LC 2 OS2
    LRL4 CFP2/CPAK/QSFP28 LC 2 OS2
    SWDM4 QSFP28 LC 2 OM3/OM4
    SR-BD QSFP28 LC 2 OM3/OM4
    40G SR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4
    40G-C/X/ESR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4
    BIDI QSFP+ LC 2 OM3/OM4
    LX4 QSFP+ LC 2 OM3/OM4
    UNIV QSFP+ LC 2 OM3/OM4, OS2
    LR4 / LRL4 / IR4 QSFP+ LC 2 OS2
    SWDM4 QSFP+ LC 2 OM3/OM4
    PLRL4 / PLR4 QSFP+ 12F MTP (MPO) 8 OS2
    4x10G IR / LR QSFP+ 12F MTP (MPO) 8 OS2
    10x10G LR  CPAK 24F MTP (MPO) 20 OS2
    25G SR SFP28 LC 2 OM3/OM4
    LR SFP28 LC 2 OM3/OM4
    10G SR SFP+ LC 2 OM3/OM4
    LR SFP+ LC 2 OM3/OM4
    1G SX SFP LC 2 OM3/OM4
    LX SFP LC 2 OS2

    MTP-LC-Polarity-24 Fibers.jpg (924 KB)
    Packing Weight (Kg)
    0.4
