MTP Elite Male-Male Universal Patch Cord | Base-24 | Single Mode G657.A2 | 4.8mm

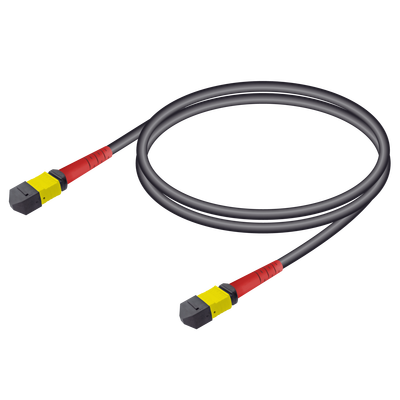

FeaturesThis MTP to MTP universal (indoor/outdoor) patch cord has one Male Base-24 MTP connector on each side, and they are connected by a single-mode A2 4.8mm fiber cord that has 24 fibers with 9µm core diameter and 125µm cladding diameter.
The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12 or 24 fibers in a single connector, and provide a great 'space advantage' especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response.
Features
- Lower Insertion Loss & Higher Performance
- Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942
- Low IL and stable signal transmission ensuring your network safety
- High-quality MTP connectors and guaranteed by 3D interferometer
- 100% factory tested
Applications
- QSFP+ to QSFP+ Connection
- QSFP to QSFP Connection
- 40GE to 40GE Interconnection
- PSM4 to PSM4 Connection
- 4x25G to 4x25G connection
- 400G to 400G Interconnection
Specifications
Insertion Loss (IEC 61300-3-4-Method-B) Average: 0.10 dB, Max: 0.35 dB Return Loss (IEC 61300-3-6-Method-B) ≥ 60 dB Durability >100 mating cycles Flammability UL94 V-0 Operating Temperature -10°C to +70°C Cable Diameter 4.8 mm MTP Connector Compliance IEC 61754-7, TIA 604-5, RoHS
Fiber Structure for Transceiver Modules
TRANSCEIVER FORM FACTOR CONNECTOR FIBER COUNT FIBER TYPE 100G CFP/CFP2/CPAK SR10 / XSR10 24F MTP (MPO) 20 OM3/OM4 SR4 CPAK 12F MTP (MPO) 12 OM3/OM4 SR4 / XSR4 QSFP28 12F MTP (MPO) 8 OM3/OM4 PSM4 QSFP28 12F MTP (MPO) 8 OS2 CWDM4 QSFP28 LC 2 OS2 LRL4 CFP2/CPAK/QSFP28 LC 2 OS2 SWDM4 QSFP28 LC 2 OM3/OM4 SR-BD QSFP28 LC 2 OM3/OM4 40G SR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4 40G-C/X/ESR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4 BIDI QSFP+ LC 2 OM3/OM4 LX4 QSFP+ LC 2 OM3/OM4 UNIV QSFP+ LC 2 OM3/OM4, OS2 LR4 / LRL4 / IR4 QSFP+ LC 2 OS2 SWDM4 QSFP+ LC 2 OM3/OM4 PLRL4 / PLR4 QSFP+ 12F MTP (MPO) 8 OS2 4x10G IR / LR QSFP+ 12F MTP (MPO) 8 OS2 10x10G LR CPAK 24F MTP (MPO) 20 OS2 25G SR SFP28 LC 2 OM3/OM4 LR SFP28 LC 2 OM3/OM4 10G SR SFP+ LC 2 OM3/OM4 LR SFP+ LC 2 OM3/OM4 1G SX SFP LC 2 OM3/OM4 LX SFP LC 2 OS2
Packing Weight (Kg) 0.2
