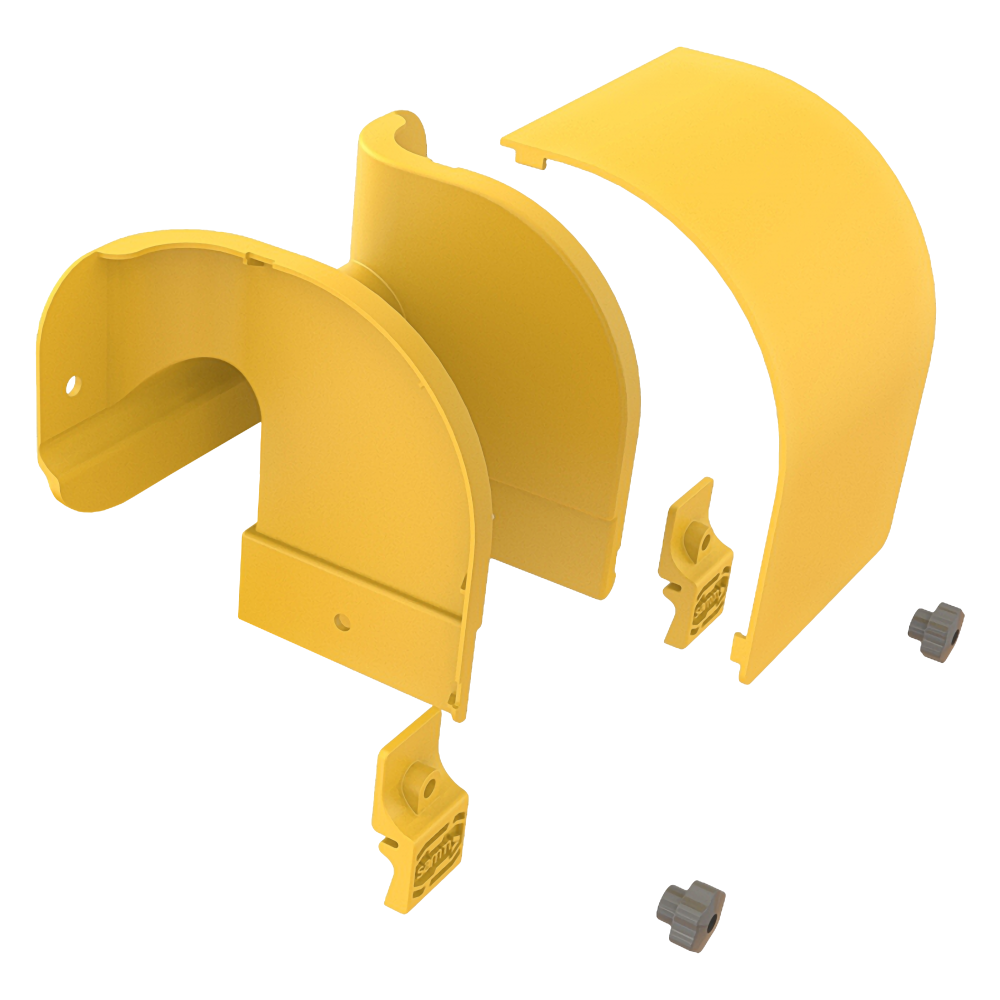

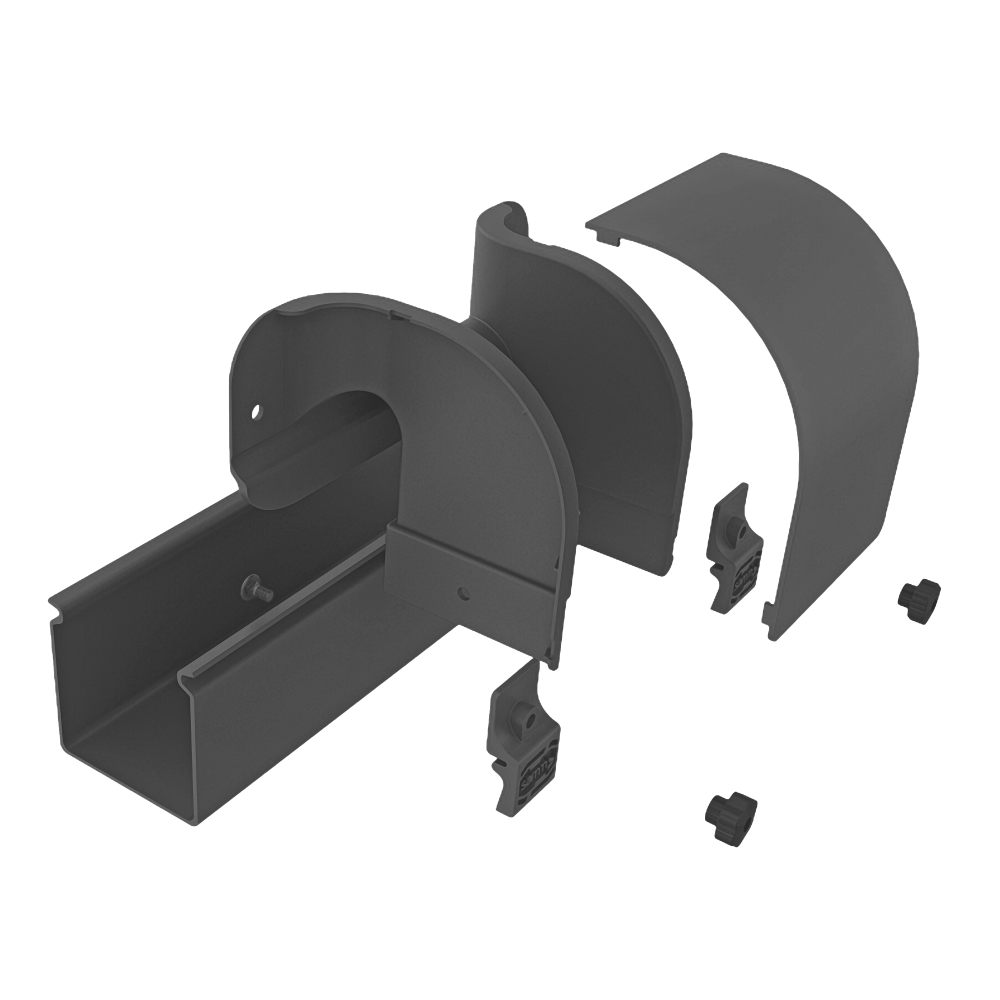

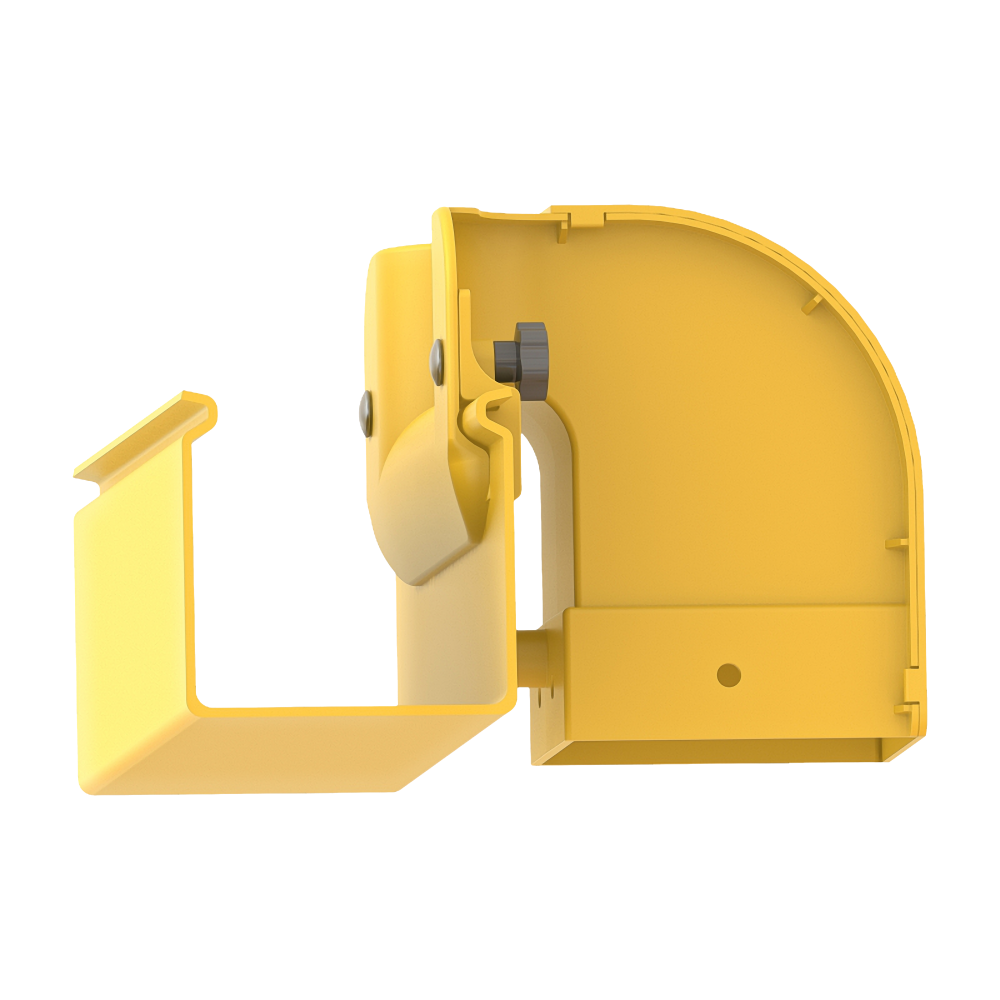

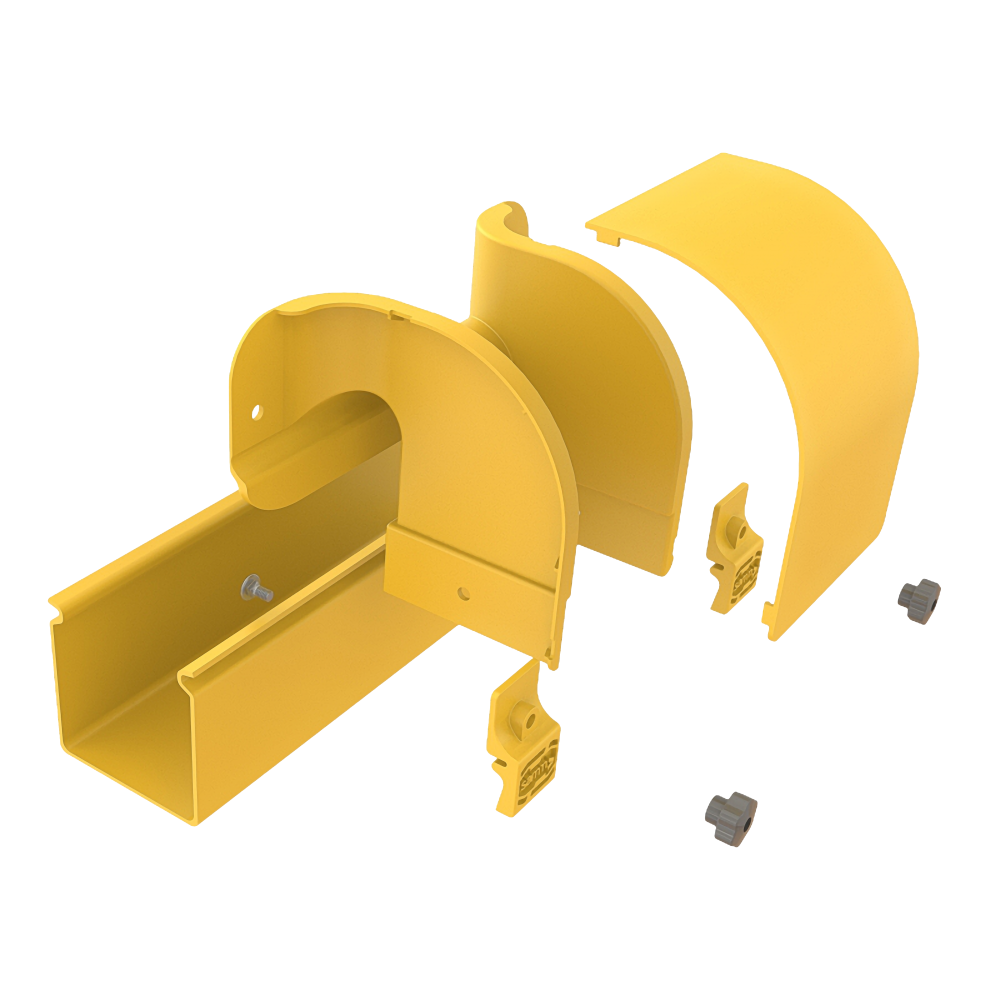

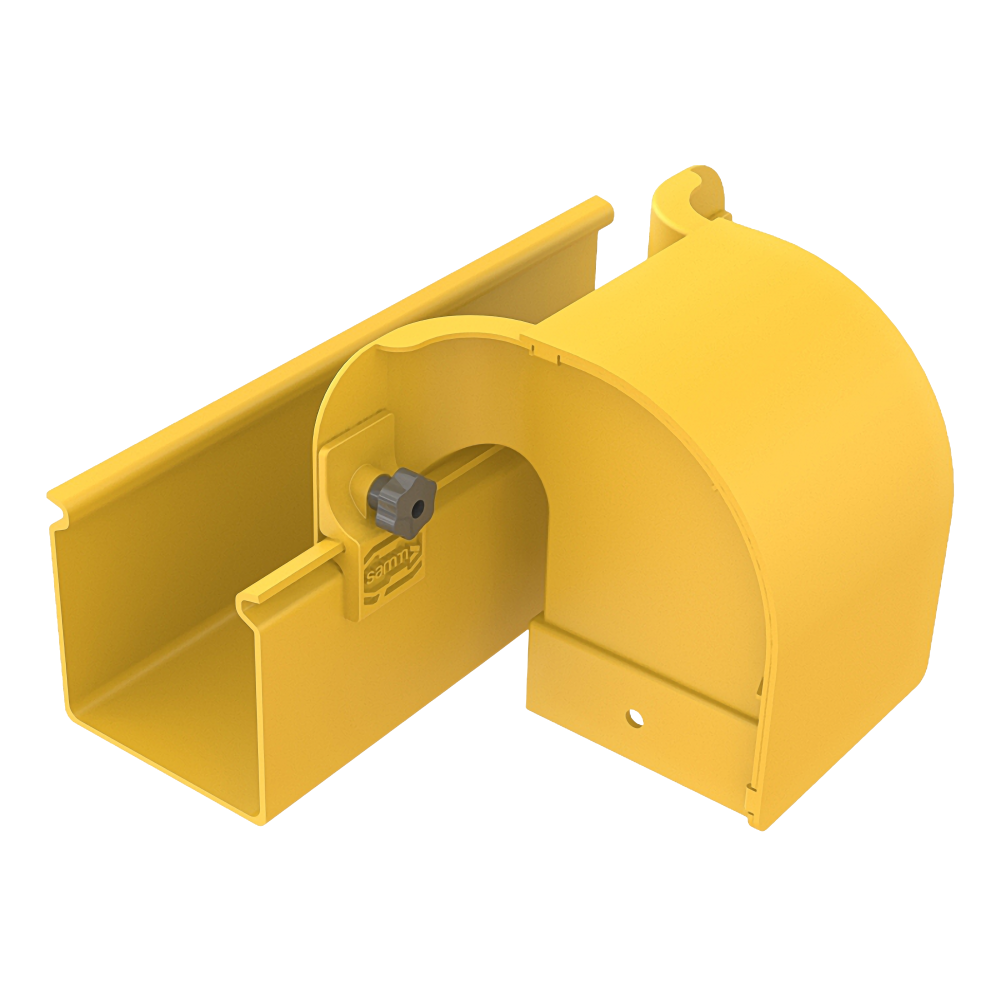

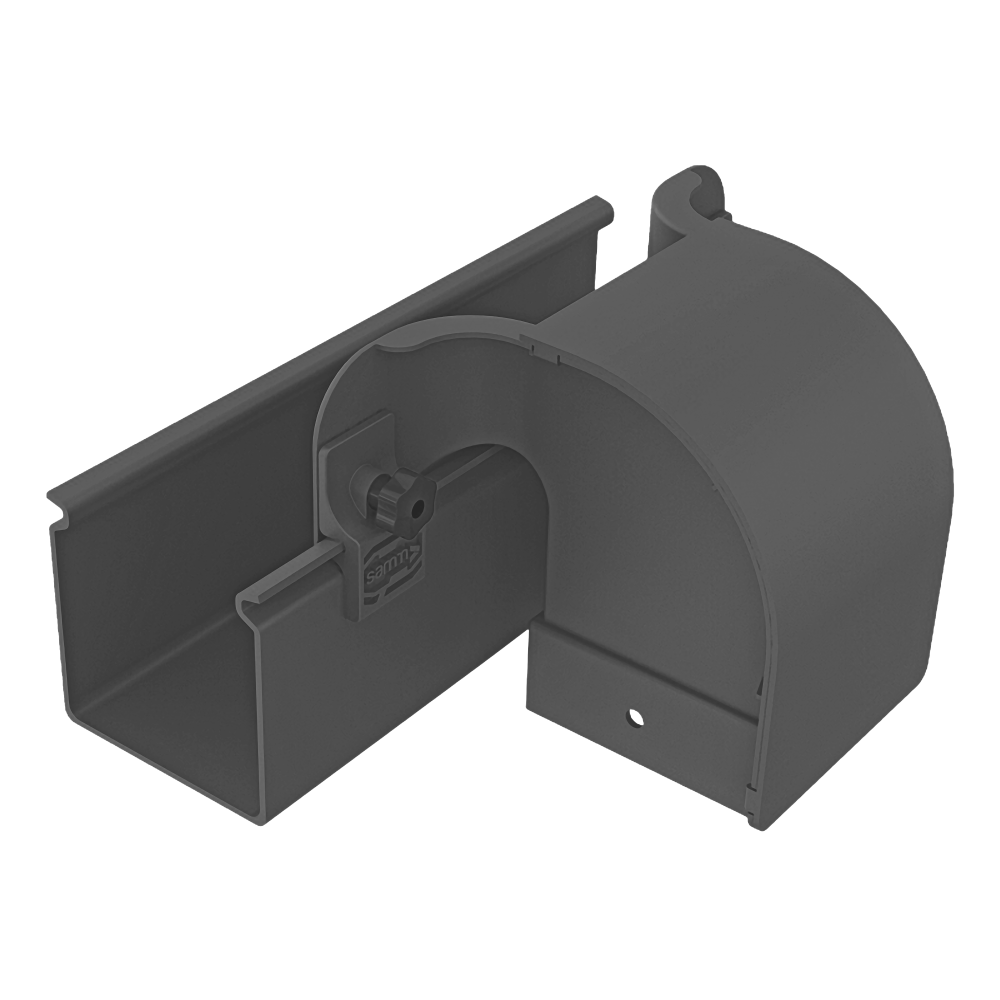

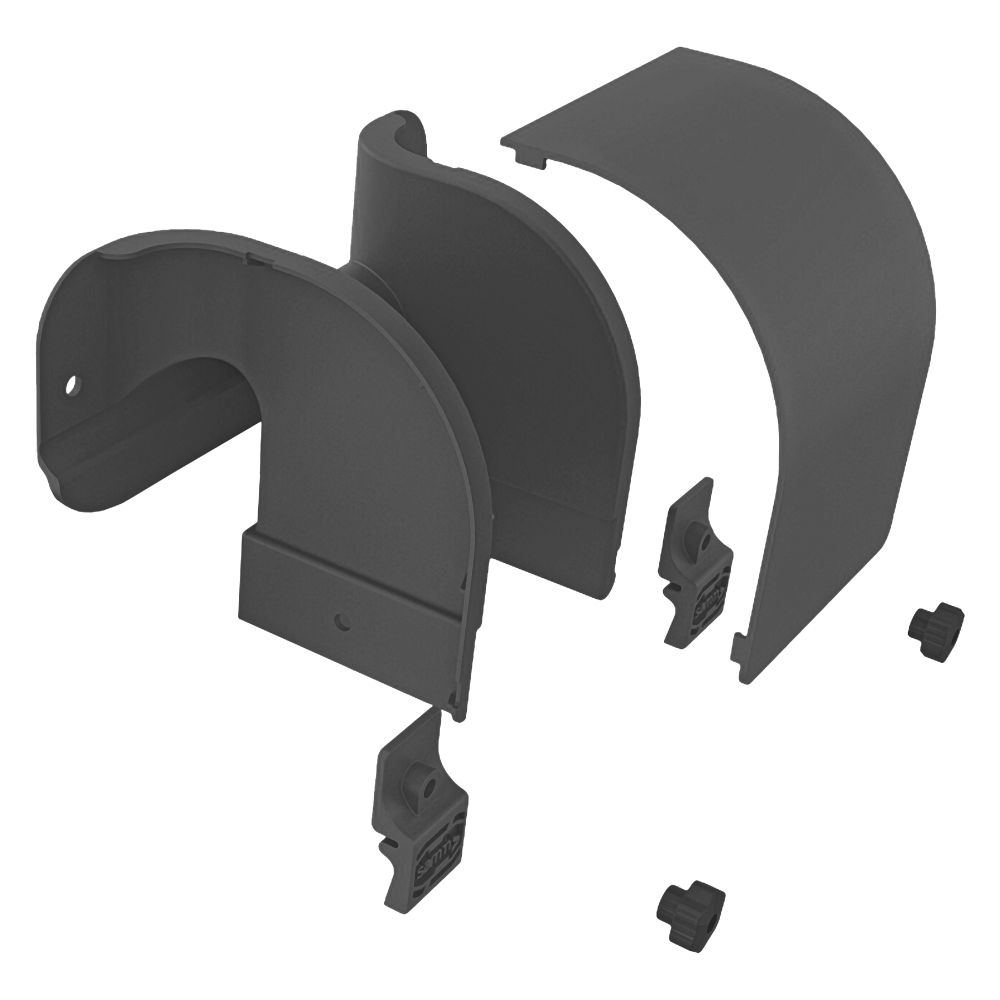

Raceways | Quick Drop 100mmFeaturesThis 100mm quick drop channel outlet is a part of Samm fiber optic raceway system, which is a fully enclosed ducting system that segregates, routes, and protects fiber optic cables and jumpers, starting from building entry point to fiber termination and distribution equipment. With Samm raceway system, fiber is easily traced and accessed through its convenient fully wrap-around, lay-in design. Straight channels and curved fittings are specifically designed to prevent fibers from violating a 50mm minimum bend Radius requirement and they protect fibers from snagging, crimping, and stress.
The system’s modular design and extensive mounting kit selection enable the project engineer to meet cable capacity requirements and future expansion needs using existing superstructure, cable racking and equipment racking. The flexibility and simplicity of the fiber optic raceway systems from Samm raceway ensures cost-effective installations for new or existing cable routes in Central Offices, CEVs, Head-ends, Remote Offices, Data Centers, and Wiring Closets.
- All exposed surfaces are textured
- High impact thermoplastic robust design,PC/ABS blend
- Flammability rating of V-0 according to UL 94
- Hardware-free covers on all components
- Halogen-free (RoHS complaint )
- Robust and strong product design
- Versatile mounting kits
- Internal cable retainers
