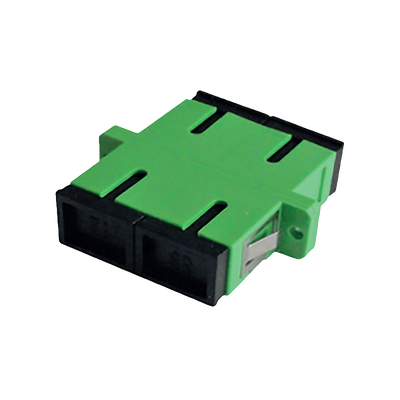

SC Duplex Adapter | w/ Flange

Product Code SC-DX-B1
Remaining Stock 19199
To View the Price, Please Contact Us.

Select Color

Campaign
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • SC Duplex Adapter | w/ Flange

    Features

    The SC Duplex flanged adapters are used to patch connect two SC Duplex connectors to each other. They come is 5 color options to indicate the fiber type as the following: Single Mode adapters come in Blue for UPC or Green for APC and Multi-mode adapters come in Beige for OM1/OM2, Aqua for OM3 and Violet for OM4.

    Properties

    Insertion Loss (Max./Typical) 0.2 / 0.1 dB
    Repeatability ΔIL/mating ± 0.1 dB
    Operational Temperature -25 ≤ T ≤ +70 °C
    Storage Temperature -40 ≤ T ≤ +80 °C
    Mating Cycles 1000 matings
    Allignment Sleeve Ceramic
    Material LSZH
    Flammability UL94-V0
    RoHS Compliant

About Samm Teknoloji

Fiber Optic Cable Manufacturer

Being a Turkish fiber optic cable manufacturer and an efficient supplier for Europe, Asia and America, SAMM Teknoloji joined the global market with very high potential. SAMM designs and manufactures a wide variety of fiber optic cable types optimized for fixed or mobile networks that can be used in indoor and outdoor environments. SAMM offers reliable, cost-effective optical products to meet the needs of customers with innovative products developed and tested in accordance with international standards.

Fiber Optic Assemblies Producer

As a fiber optic cable assemblies producer and supplier in Turkey and an optical assemblies supplier for Europe and Asia, Samm Teknoloji has been providing high-quality and reliable fiber optic cable assemblies since 2006. Due to our fully equipped production facilities, laboratories and long-term expertise in fiber optics, we are able to produce a first class fiber optic assemblies portfolio that ensure the highest level reliability. Therefore, one of the main priority is the ongoing expansion and advancement of the manufacturing capabilities.

Data Center Solutions Producer

As a Turkish producer of future-ready fiber optic data center equipment, SAMM Teknoloji produces UHD ultra high density MTP/MPO panels and cassettes, modular panels and cabling raceways. SAMM Teknoloji has also kept pace with the accelerating spread of Cloud Computing, which has increased the need for mega Data Centers. SAMM provides Data Center solutions and products that suit all structures with high data storage density, data traffic and data security.
