SC/UPC-LC/UPC | Multi Mode G651.OM3 Corrugated FTTA Steel Breakout | 7.0x2.85mm
Features

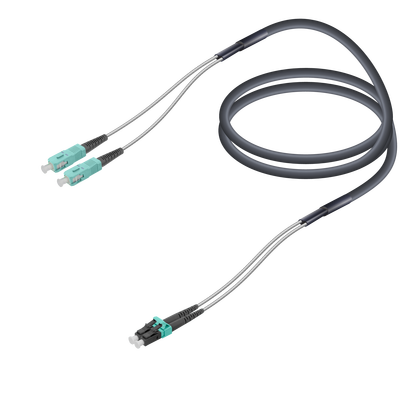

This 7.0mm universal (indoor/outdoor) breakout with corrugated steel has two aqua SC/UPC connectors on one side and two aqua LC/UPC connectors on the other, and they are connected by two aqua multi-mode OM3 fibers with 50µm core diameter and 125µm cladding diameter.

SC means "Square Connector" and it has 2.5mm diameter ceramic ferrule. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The connector ferrule on both sides is UPC, which means its surface is ultra polished for ultra physical contact. Duplex means the cord has two fiber cables bonded together and that it can be used with Rx and Tx systems.

Specifications

Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB

Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC)

Durability: ≥ 1000 mating cycles

Flammability: UL94 V-0

Operating Temperature: -40°C to +85°C

Connector End Face Geometry: IEC 61755-3

LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS

SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS

FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS

ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS

E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS

Packing Weight (Kg)
0.2
Fiber Optic Universal Breakout | Multi Mode 7.0mm | Datasheet
