  • 100GBase-LR4 QSFP28 Transceiver - Q28QD010C00D41F

    Features

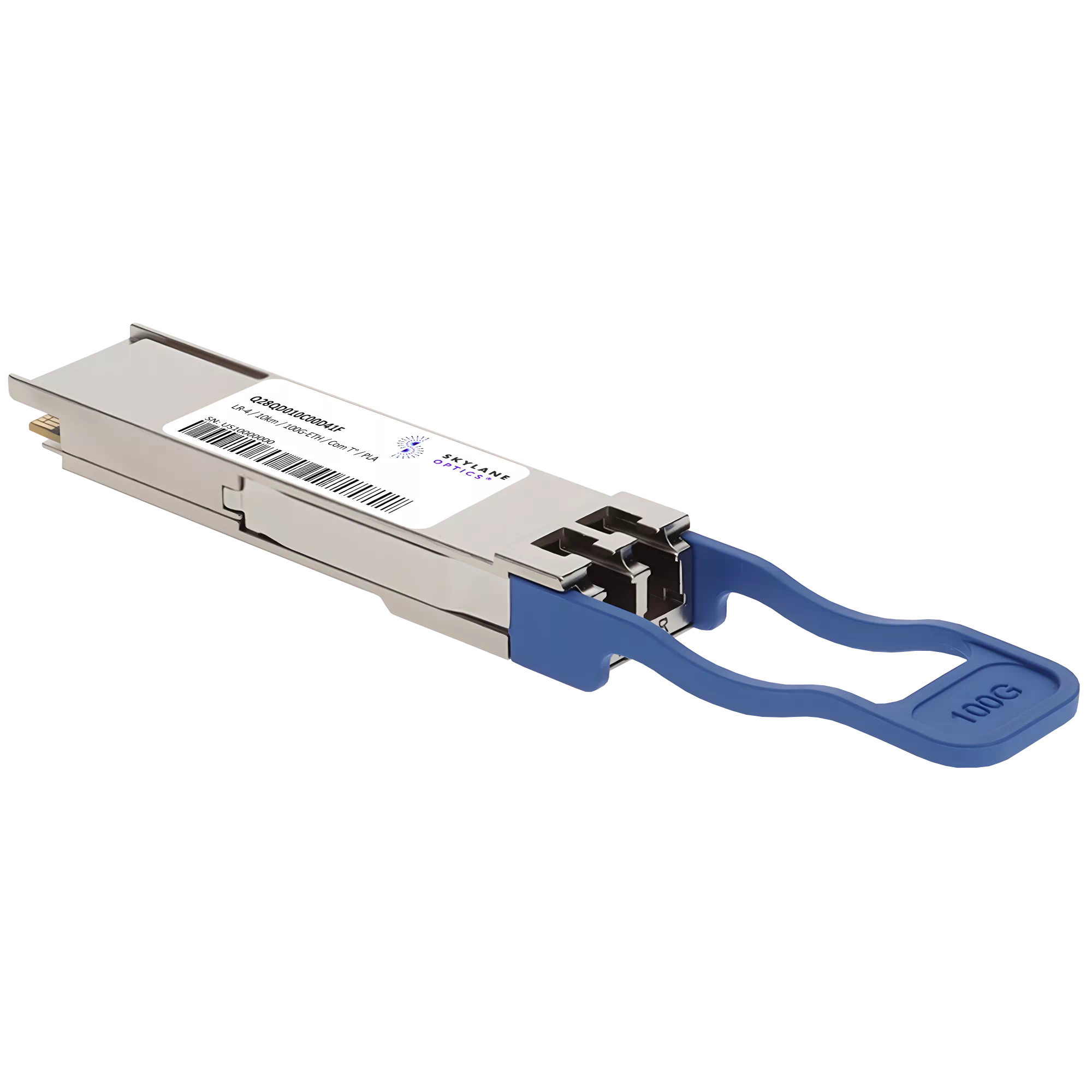

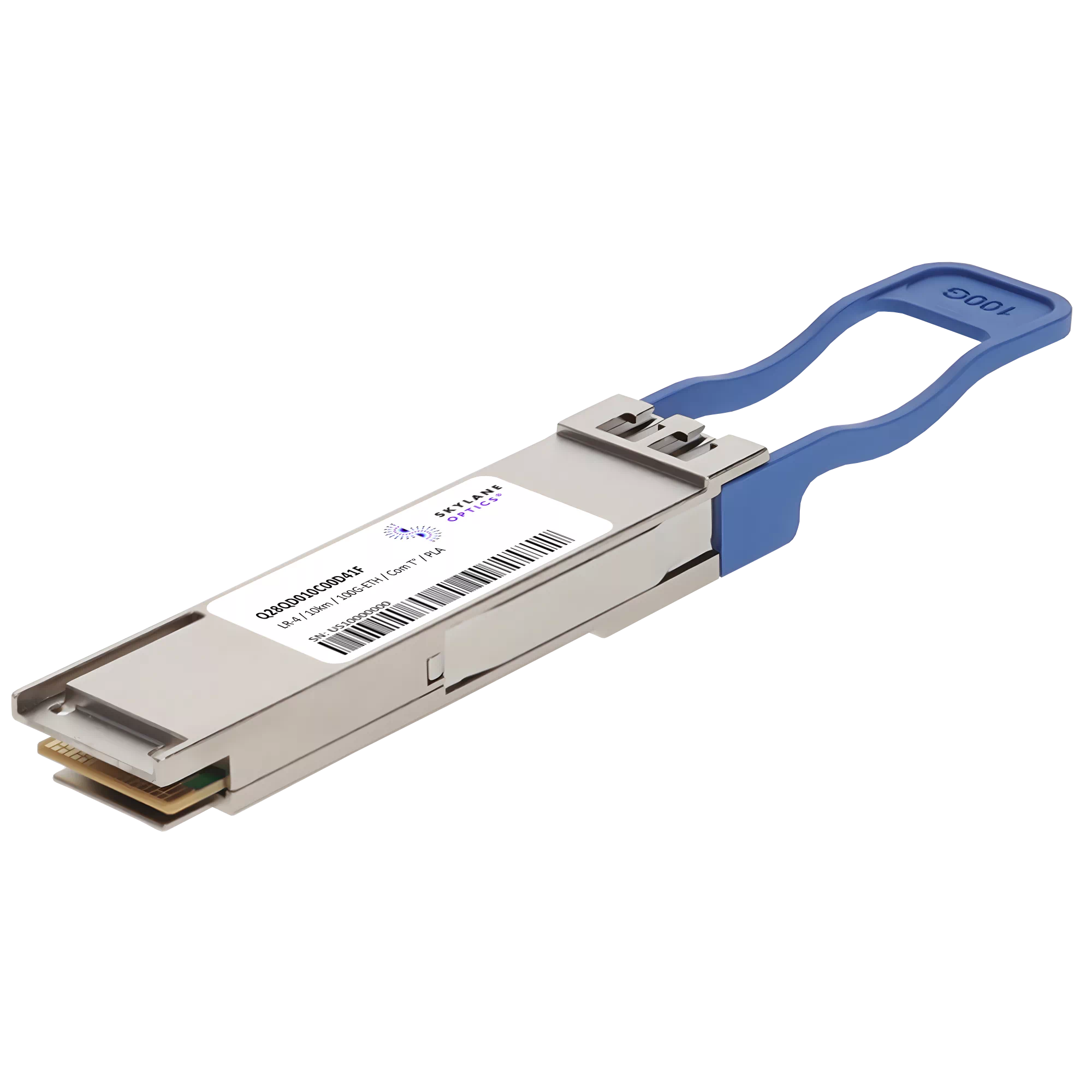

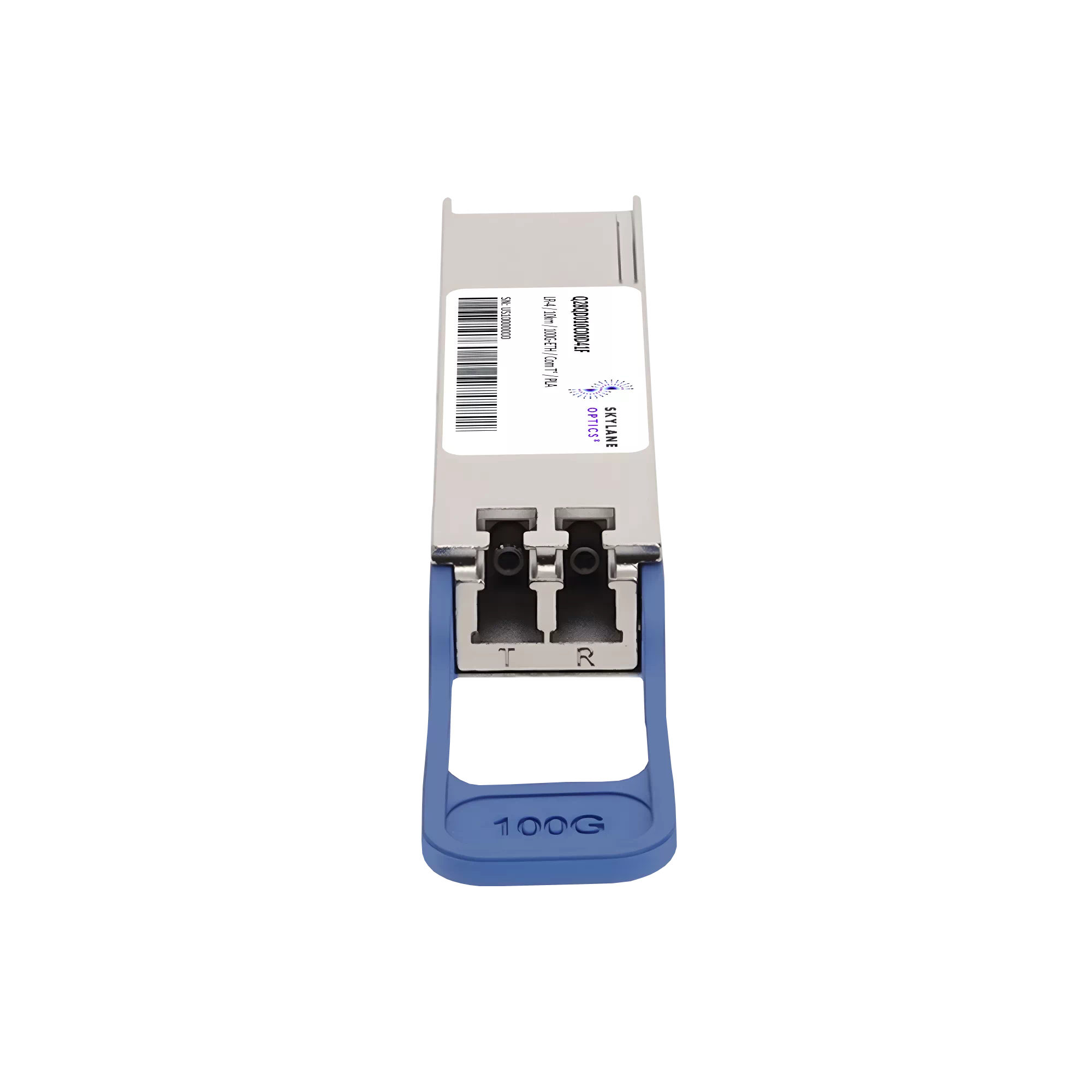

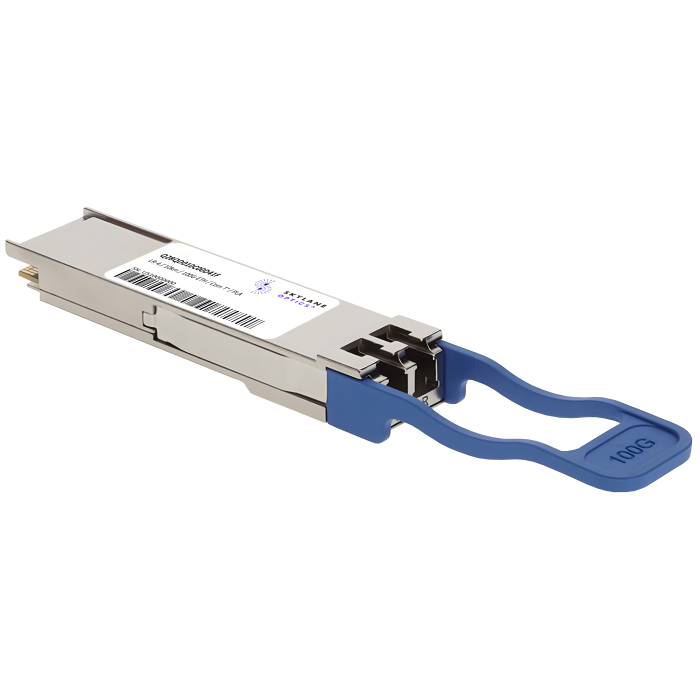

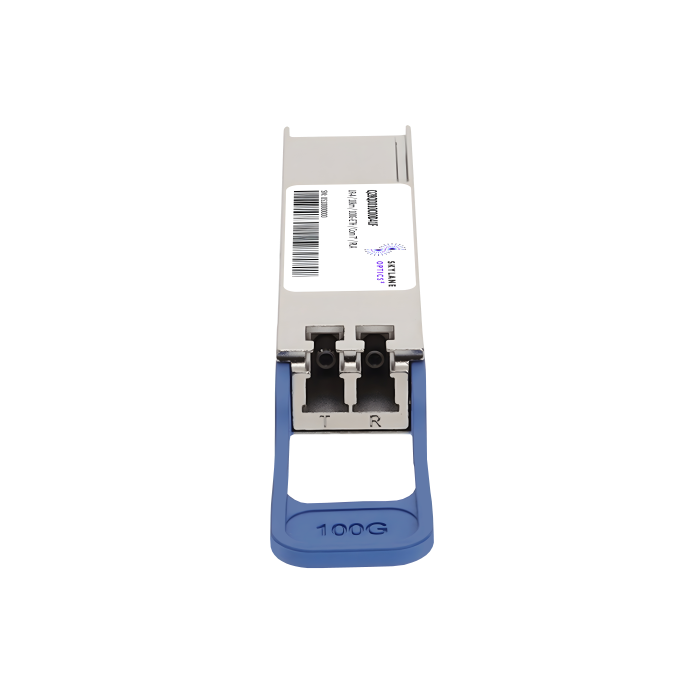

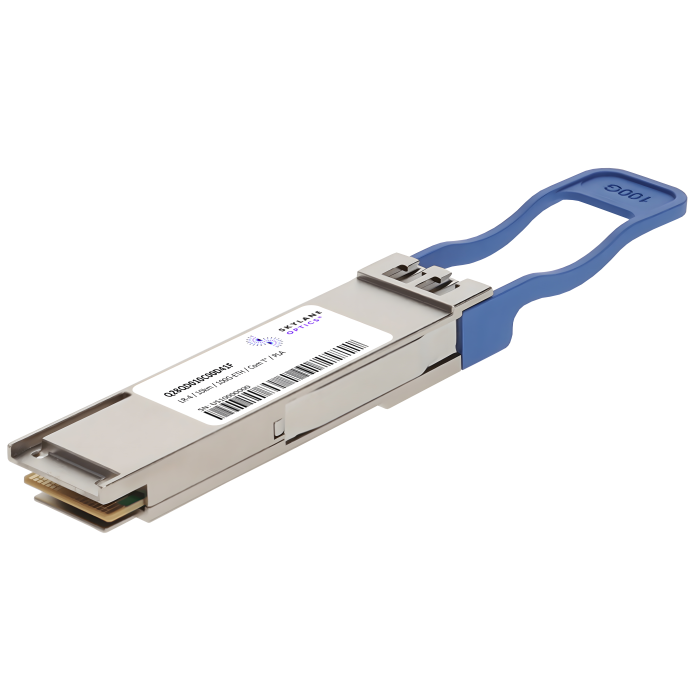

    The Skylane® Q28QD010C00D41F is a high-performance QSFP28 transceiver compatible with Cisco® QSFP-100G-LR4. It delivers 100Gbps over single-mode fiber (SMF) up to 10km using four wavelengths (1295–1309nm) via an LC duplex connector. Ideal for data center, enterprise, and access networks, this hot-pluggable module supports Digital Optical Monitoring (DOM) and is fully compliant with MSA and IEEE standards. Each unit is uniquely serialized, rigorously tested, and backed by a limited lifetime warranty.


    Applications

    • 100GBase Ethernet
    • Access and Enterprise

    Features

    • SFF-8665 Compliance
    • Duplex LC Connector
    • Commercial Temperature 0 to 70 Celsius
    • Single-mode Fiber
    • Hot Pluggable
    • Excellent ESD Protection
    • Metal with Lower EMI
    • RoHS Compliant and Lead Free

    Absolute Maximum Ratings

    Parameter Symbol Min. Typ. Max. Unit
    Maximum Supply Voltage Vcc -0.5 3.6 V
    Storage Temperature TS -40 85 °C
    Operating Case Temperature Tc 0 25 70 °C
    Operating Humidity RH 5 85 %
    Receiver Damage Threshold, per Lane Rxdmg 5.5 dBm

    Electrical Characteristics

    Parameter Symbol Min. Typ. Max. Unit Notes
    Power Dissipation PD 3.5 W
    Power Supply Voltage Vcc 3.135 3.3 3.465 V
    Transmitter
    Differential data input swing per lane Vin 900 Mvp-p
    Input Impedance (Differential) Zin 10 %
    Stressed Input Parameters
    Eye width 0.46 UI
    Applied pk-pk sinusoidal jitter IEEE 802.3bm Table 88-13
    Eye height 95 mv
    DC common mode voltage -350 2850 mv
    Receiver
    Differential output amplitude 200 900 Mvp-p
    Output Impedance (Differential) Zout 10 %
    Output Rise/Fall Time tr/tf 12 ps 20%~80%
    Eye width 0.57 UI
    Eye height differential 228 mv
    Vertical eye closure 5.5 db

    Optical Characteristics

    Parameter Symbol Min. Typ. Max. Unit Notes
    Transmitter
    Signaling Speed per Lane Brave 25.78 Gbps
    Data Rate Variation -100 +100
    Lane_0 Center Wavelength λC0 1294.53 1295.56 1296.59 nm
    Lane_1 Center Wavelength λC1 1299.02 1300.05 1301.09 nm
    Lane_2 Center Wavelength λC2 1303.54 1304.58 1305.63 nm
    Lane_3 Center Wavelength λC3 1308.09 1309.14 1310.19 nm
    Average Launch Power each Lane Peach -4.3 4.5 dBm 1
    Optical Modulation Amplitude (OMA) each Lane TxOMA -1.3 4.5 dBm
    Difference in launch power between any two lanes (OMA) 5 dB
    Launch power in OMA minus TDP, each lane -2.3 dBm
    Transmitter and dispersion penalty (TDP), each lane 2.2 dB
    Extinction Ratio ER 4 dB
    Side-mode Suppression ratio SMSRmin 30 dB
    Average launch power of OFF transmitter per lane -30 dBm
    Relative Intensity Noise RIN -130 dB/hz
    Transmitter Reflectance -12 dB
    Optical Return Loss Tolerance 20 dB
    Transmitter eye mask definitions: X1, X2, X3, Y1, Y2, Y3 0.25, 0.4, 0.45, 0.25, 0.28, 0.4 2
    Receiver
    Signaling Speed per Lane BRAVE 25.78 Gbps
    Data Rate Variation -100 +100 ppm
    Damage threshold per lane Rxdmg 5.5 dBm
    Lane_0 Center Wavelength λC0 1294.53 1295.56 1296.59 nm
    Lane_1 Center Wavelength λC1 1299.02 1300.05 1301.09 nm
    Lane_2 Center Wavelength λC2 1303.54 1304.58 1305.63 nm
    Lane_3 Center Wavelength λC3 1308.09 1309.14 1310.19 nm
    Average Receive Power per Lane Rxpow -10.6 4.5 dBm 3
    Receive Power (OMA) per Lane RxOMA 4.5 dBm
    Receive Sensitivity in OMA per Lane Rxsens -8.6 dBm
    Receiver 3 dB electrical upper cutoff frequency, per lane 31 GHz
    Stressed Receiver Sensitivity (OMA) per Lane RXSRS -6.8 dBm 4
    Optical Return Loss ORL -26 dB
    LOS Assert LOSA -25 dBm
    LOS De-Assert LOSD -12 dBm
    LOS Hysteresis 0.5 dB
    conditions of stressed receiver sensitivity test
    Vertical eye closure penalty VECP 1.8 dB 5
    Stressed eye J2 Jitter J2 0.3 UI 5
    Stressed eye J9 Jitter J9 0.47 UI 5
    Cisco® QSFP-100G-LR4 Compatible
