Bright Series | Mechanical Sliding | 12 SC Duplex | FP02 | 24 Fiber
| Product Code | MT13964 |
| Lead Time | 2 work days |
İçeriği Seçiniz
- Features
- Documents
- Comments (0)
- Request for Quote
-

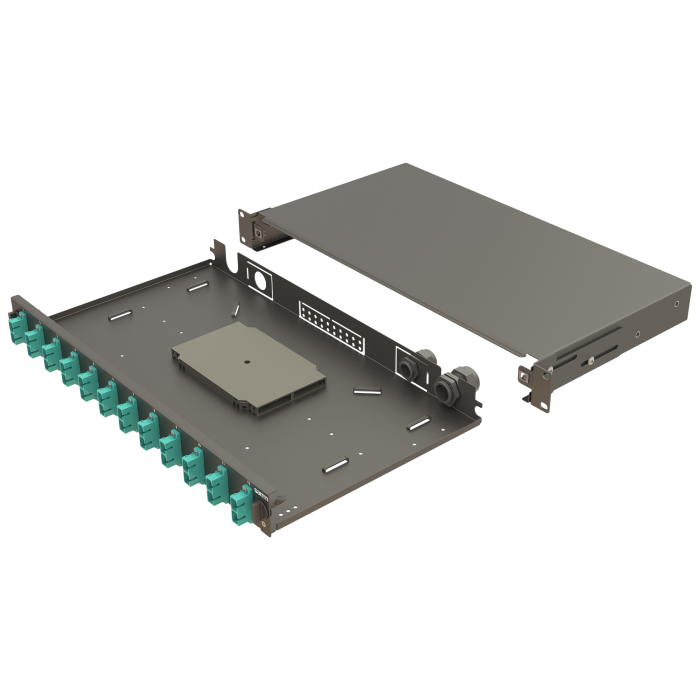

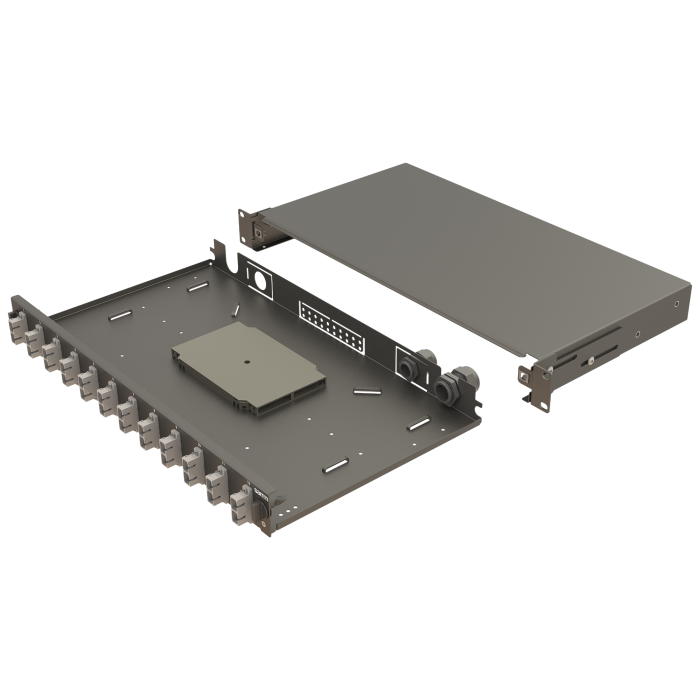

Bright Series | Mechanical Sliding | 12 SC Duplex | FP02 | 24 Fiber
FeaturesFixed-Type Bright Series Mechanical-Sliding FP02 Patch Panel Systems are designed for termination of up to 24 optical fibers according to the SC adapter. These panels can be opened and closed on a plastic rail mechanism.
These panels are used in telecom rooms, main distribution rooms and system rooms to terminate, distribute and manage fiber optic infrastructure in many different applications.Properties
- Different cable entry options
- Robust and installer-friendly design - providing reduced installation and operating costs
- Different rear cable entry options with PG16 and PG13.5 gland holes
- Screwable desing for adapters on front plates
- Removable shelf design for installation easiness
- Powder-coated RAL 9000 (Black)
- Operating temperature: -20°C / +80°C
Product Content
- 1 pc - FP02 Panel
- 1 pc - PG16 Cable Gland
- 1 pc - PG13.5 Cable Gland
- 1 pc - Rack Mounting Set
- 4 pc - Tire Wrap
- 6 pc - Bunny Clips
- 1 pc - BS-SPLKIT2-24F-1T-BLK
- 12 pc - SC Duplex Adapters pre-assembled with screws
- 24 pc - SC Pigtail (Un-assembled)
Packing Size (cm) Packing Weight (Kg) 50 x 28 x 5 2.53
