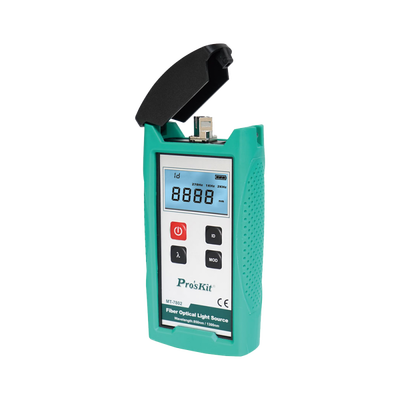

Fiber Optik Multimode Işık Kaynağı (850/1300nm) | MT-7802Ürün Özellikleri
Stability and Reliability Output
- Built-in optic isolator, larger and more stable compared to desktop source.
Full Range Supply
- MT-7801 provides single mode 1310/1550 wavelength light source
- MT-7802 provides multi mode 850/1300 wavelength light source
- MT-7803 provides single mode 1310/1490/1550 wavelength light source
- Supports SC/PC connectors
LCD display with Backlight
- Easily reading and allowing work in dark area.
- In WaveID mode, it will encode each wavelength with a unique WaveID code; output the same wavelength automatically to identify the wavelength. (Work with Pro’sKit MT-7601& MT-7603 power meter)
Selection of 3 Modulations, distinguish OPTIC fiber line
- 270Hz, 1KHz, 2KHz
- Designed with single key to switch the wavelength, easy,
- flexible and convenient.
- Power by Battery, more convenient.
- Comes with DC5V power jack allows charging the rechargeable b attery with. DC input (adaptor is not included) when using the rechargeable battery.
- Auto power off.

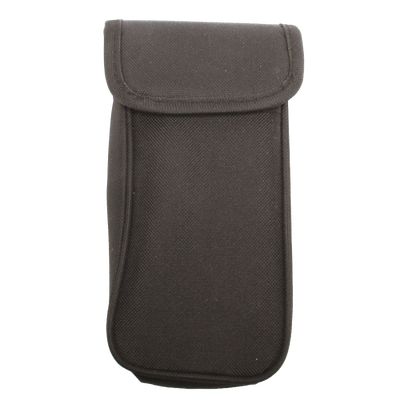

- Protective rubber boot with a soft protective case.
- Power jack
Model no. MT-7801 MT-7802 MT-7803 Wavelength 1310/1550nm±10nm 850/1300nm±10nm 1310/1490/1550nm±10nm Power Stability ±0.05dB / 1hr；±0.1dB / 8hrs output Power >-5dBm >-10dBm >-5dBm OPTIC connector SC/PC Modulation 270Hz, 1kHz,2kHz Auto power off 10 minutes (could be reset) Battery Charge Yes (when using rechargeable battery), by DC 5V power jack Low battery indication Yes Storage temperature -20~+70°C; <90%RH Operating temperature -10~+60°C; <90%RH Power source 2 x 1.5V AA batteries (not included) Dimension 165× 80 × 35mm Weight 280g package Color box
