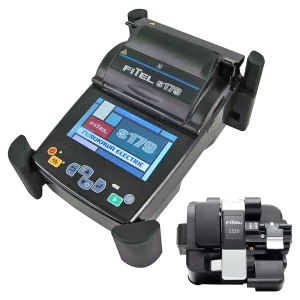

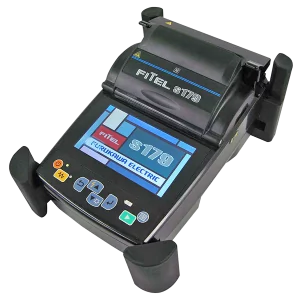

S179 Fusion Splicer Kit

Product Code MT02112
Remaining Stock 0
Brand FITEL
Request for Quote
Campaign
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • S179 Fusion Splicer Kit

    Features

    The FITEL S179 Core Alignment Fusion Splicer offers powerful performance delivering fast, low-loss and reliable optical fiber splicing even under harsh environmental conditions. By combining speed, precision, durability, portability and state of the art communication methods all in one unit, this fusion splicing machine is suitable for rapid network deployment and production assembly lines. The FITEL S179 fusion splicer is completely suitable for use with all Metro, LAN and FTTx fibres, including ultra bend-insensitive fibers. Embedded NFC (Near Field Communication), Smartphone control and data management function makes the S179 one of the most advanced and user-friendly fusion splicing machines from FITEL.

    Features

    High Speen Splicing and Heating

    • 6 Seconds splicing
    • 9 Seconds heating
    • Easy 50° heating
    • SOC connectors compatibility
    • High propulsion motor
    • 200 splicing cycles in one charge

    Usability

    • Bigger and Brighter 4.3" Screen
    • Superior fiber profile image
    • Touch Screen and Keypad control.
    • One touch Zoom.
    • Easy camera switch
    • 3 Uppers LEDs and 1 Lower LED
    • Wider Opening angle

    Design and Built

    • Ruggedized design IK07
    • Drop resistant 76 cm 5 Axis
    • Water resistant IP x2
    • Dust resistant IP 5x
    • Improved inclination by 2.5
    • Wider splicing chamber
    • Easy maintenance
    • Removable V groove
    • Removable corner pads
    • Easy grasp, great portability

    Connectivity

    • USB 2.0 port
    • USB Dongle
    • Advanced Security via NFC
    • Bluetooth pairing and control
    Fusion Splicing S179 -

    PRODUCT SPECIFICATIONS

    Applicable Fibers SM, MM, DSF, NZD, EDF, BIF/UBIF (Bend insensitive fiber)
    Cladding Diameter 80~150 µm
    Coating Diameter 100~3000 µm
    Fiber Cleave Length 5~16 mm
    Average Splice Loss SM: 0.02 dB, MM: 0.01 dB, DSF: 0.04 dB, NZD: 0.04 dB
    Splice Time 6 seconds (semi-auto mode)
      9 seconds (regular mode)
    Heat Time 9 sec (60mm, Tyco SMVOUV1120-1, coating diameter 250-900 µm, Power mode)5
      13 sec (60mm, FITEL S921, 250 µm, Power mode), 15 sec (60mm, FITEL S921, 900 µm, Power mode)
    Splice Programs Max. 300
    Automatic Splicing Selection Available
    Heat Programs Max. 100
    Automatic Heating Start Available
    Applicable Sleeves 20/40/60 mm
    Fiber Holder Tight holder (Loose tube applicable) or Removable Fiber Holder System
    Tension Test 1.96 N
    Splice Return Loss 60 dB or greater
    Attenuation Splice Function Intentional high splice loss of 0.1 dB to 15 dB (0.1 dB step) can be made for an inline fixed attenuator
    Fiber Image Magnification 278X, 556X
    Splice Memory 20 000
    Image Capture Capacity Last 100 images to be automatically captured + Up to 100 images to be stored permanently
    Dimension 138W × 211D × 114H mm (not including shock absorber)
      170W × 238D × 122H mm (including shock absorber)
    Weight 1.6kg (without battery)
      1.9 kg (with battery)
    Monitor 4.3 ” wide colour LCD monitor with touch screen
    Data Output USB ver.2.0 mini B
    Battery Capacity Typical 200 splice/heat cycles *6
      Typical 230 splice/heat cycles, 90 sec/cycle
    Altitude up to 5,000 m
    Wind Protection up to 15 m/s.
    Operating Temperature -10 to +50°C (without excessive humidity)
    Storage Temperature -40 to +60°C (without excessive humidity)
    Humidity 0 to 95% RH (non-condensing)
    Power Source AC Input 100 to 240 V (50/60 Hz), DC Input 11 to 24 V without any change of hardware
