Male MTP Elite to LC/UPC Fanout | Base-16 | Multi Mode G651.OM4 | 3.0/1.8mm
| Product Code | MT16265 |
| Remaining Stock | 1 |
Length
- Features
- Documents
- Comments (0)
- Request for Quote
-
Male MTP Elite to LC/UPC Fanout | Base-16 | Multi Mode G651.OM4 | 3.0/1.8mm

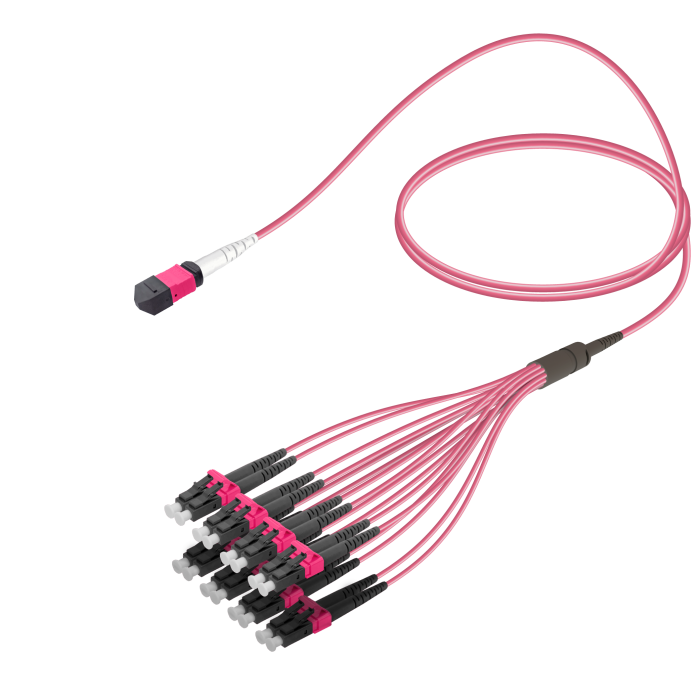

FeaturesThis MTP to LC fanout assembly has one Male Base-16 MTP connector on one side and 8 LC/UPC Duplex connectors on the other, and they are connected by 16 Multi-mode 1.8mm OM4 fiber cords that have 16 fibers with 50µm core diameter and 125µm cladding diameter, and they are bonded within a 3.0mm main cord.
LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The UPC ferrule means its surface is ultra polished for ultra physical contact. The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12,16 or 24 fibers in a single connector, and provide a great 'space advantage' especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response.
Features
- High Efficiency with Low Losses
- Low Loss, MTP Elite® Multi-Fiber Connectors
- High Quality LC Connectors
- Compliance with Standards MTP: TIA 604-18, IEC (61754-7-3), (61754-7-4)
- Compliance with Standards LC: IEC 61754-20, TIA 604-10-A
- All cables are 100% factory tested and come with a test certificate
Applications
- QSFP-DD SR8 / SFP28 SR Connections
- QSFP-DD SR8 / SFP56 SR Connections
- QSFP-DD SR8 / SFP28 SR1 Connections
Specifications
Insertion Loss (IEC 61300-3-4-Method-B) MTP≤0,35dB (avg: 0,1dB); LC≤0,3dB Return Loss (IEC 61300-3-6-Method-B) MTP: ≥60dB; LC: UPC≥50dB APC≥60dB Durability >100 mating cycles Flammability UL94 V-0 Operating Temperature -10?C to +70?C Cable Diameter 3.0 mm MTP Connector Compliance IEC 61754-7, TIA 604-5, RoHS LC Connector Compliance IEC 61754-20, TIA 604-10-A, RoHS
