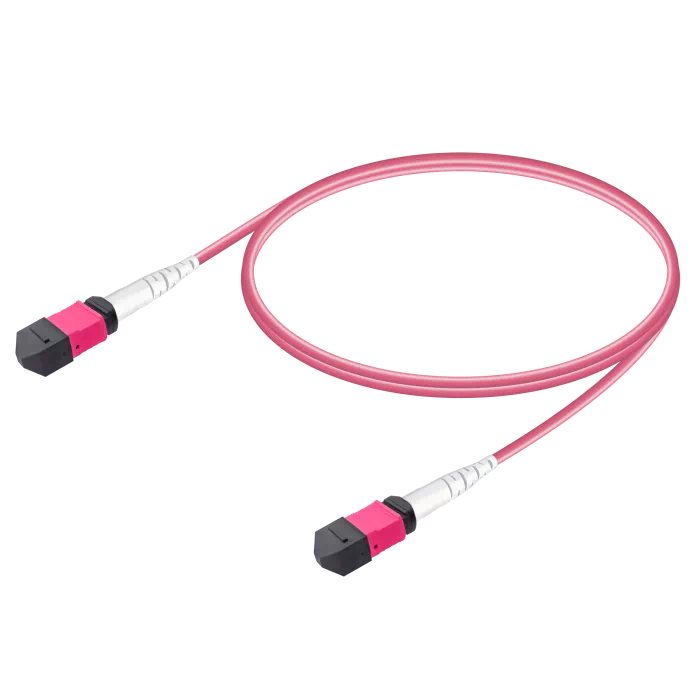

MTP Elite Male-Male Patch Cord | Base-16 | Multi-Mode G651.OM4 | 3.0mm
| Product Code | MT16248 |
| Remaining Stock | 1 |
Length
- Features
- Documents
- Comments (0)
- Request for Quote
-
MTP Elite Male-Male Patch Cord | Base-16 | Multi-Mode G651.OM4 | 3.0mm
Features16 Fibers MTP® patch cord cables are used for 200/400/800G QSFP-DD SR8 optics direct/interconect connection and supporting 200/400/800G transmission for Hyperscale Data Center. Type B 16 Fibers MTP®-16 trunk cable is suitable for 16-fiber parallel multi mode optical transceiver connections. The assemblies are offered in single row 16-fiber configurations to achieve high density physical contact for multi-fiber connectors in the market.
The connector hardware offers a unique keying feature as opposed to the centered keying feature on the traditional MPO hardware. This new keying design, standardized by TIA 604-18 (FOCIS 18), IEC (61754-7-3) and IEC (61754-7-4), ensures proper mating of the MTP®-16 connector without inadvertently mating the 16 fiber connector hardware with standard MPO compliant hardware. MTP®-16 adapters are available in full or reduced flange mounting and opposed or aligned key orientation.
Features
- Support 200G/400G/800G transmission for Hyperscale Data Center
- Type B polarity for 400GBASE-SR8 QSFP-DD link
- Different multimode fibers OM3/OM4/OM5 for 400G Ethernet applications up to applications 70 / 100 / 100 meters (at 850 nm)
- Low IL and stable signal transmission ensuring your network safety
- High-quality MTP(MPO) connectors and guaranteed by 3D interferometer
- 100% factory tested
Applications
- QSFP-DD SR8 / QSFP-DD SR8 Connections
Specifications
Insertion Loss (IEC 61300-3-4-Method-B) Average: 0.10 dB, Max: 0.35 dB Return Loss (IEC 61300-3-6-Method-B) ≥ 20 dB Durability >100 mating cycles Flammability UL94 V-0 Operating Temperature -10°C to +70°C Cable Diameter 3.0 mm MTP Connector Compliance TIA 604-18 (FOCIS 18), IEC 61754-7-3, IEC 61754-7-4, RoHS
