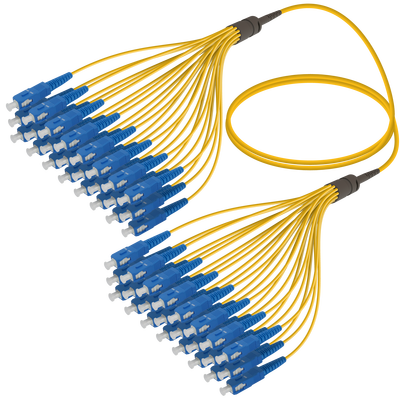

SC/UPC-SC/UPC | 24 Fibers Fanout | Single Mode G657.A2 | 3.0/1.8mm
| Product Code | MT05658 |
| Lead Time | 5 work days |
Length
- Features
- Documents
- Comments (0)
- Request for Quote
-
SC/UPC-SC/UPC | 24 Fibers Fanout | Single Mode G657.A2 | 3.0/1.8mm
FeaturesSC (Square Connector) type connectors have 2.5 mm diameter ferule structure. The abbreviations PC, UPC and APC are definitions expressing the physical differences of the surface geometries of the connectors on the ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferule structure on the connector has an extra polished flat structure; APC (Angled Physical Contact) indicates that the ceramic ferrule structure on the connector has an extra polished 8° angle structure.
3.0 mm diameter multi fiber cables that consist of 24 fibers (each diameter is 250 micron) that are manufactured with ITU-T G657.A2 bend sensitive fibers. All fibers tubed (each diameter is 1.8 mm) with use divider that a special solution, in both sides, then assembled at both end with SC type connectors.
Specifications
- Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB
- Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC)
- Durability: <0,1 dB typical change for >500 matings
- Flammability: UL94 V-0
- Operating Temperature: -40°C to +85°C
- Connector End Face Geometry: IEC 61755-3
- LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS
- SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS
- FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS
- ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS
- LSH Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS
Packing Weight (Kg) 0.45
