  • DIN Rail Termination Box | 6 LC Duplex Angled | DP2

    Features

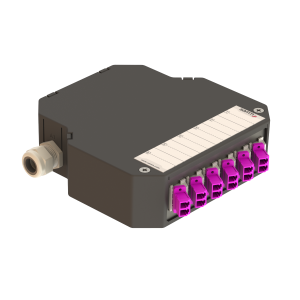

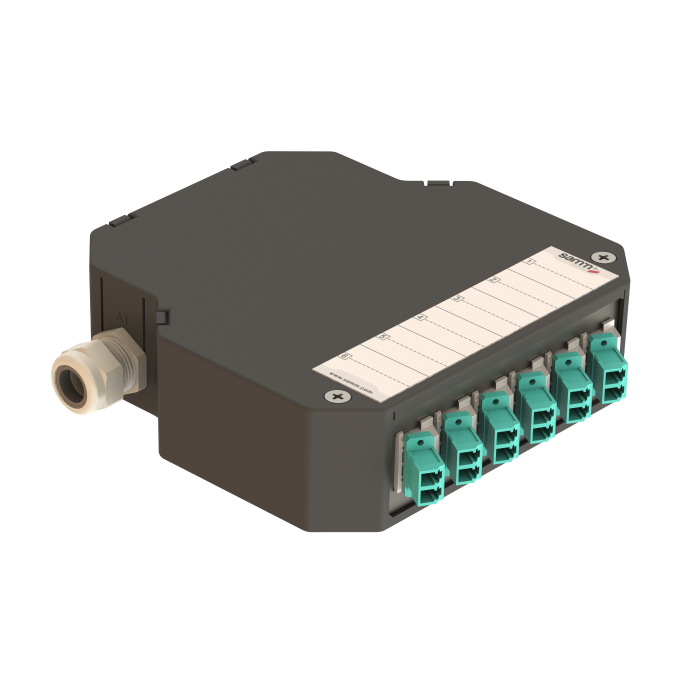

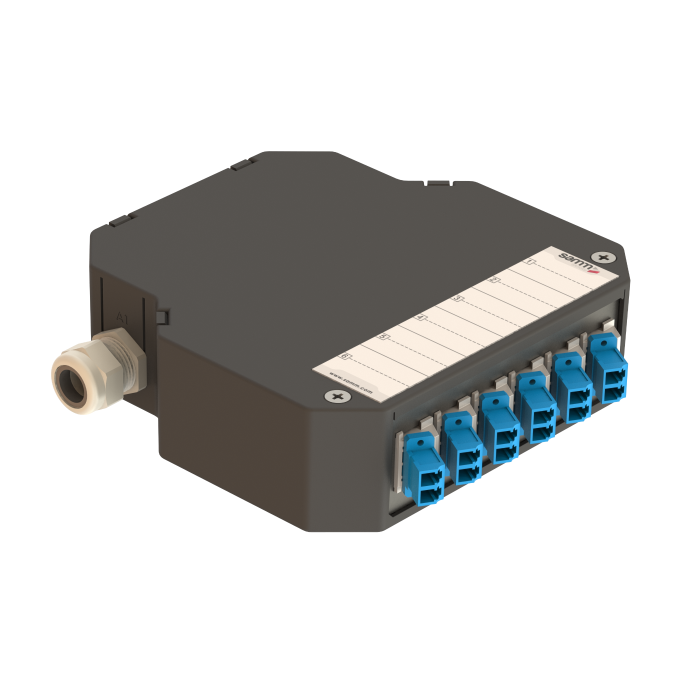

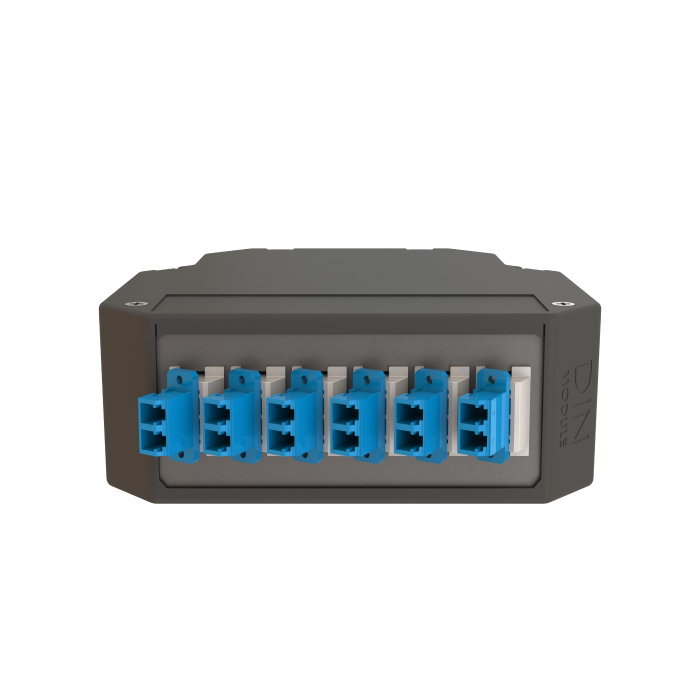

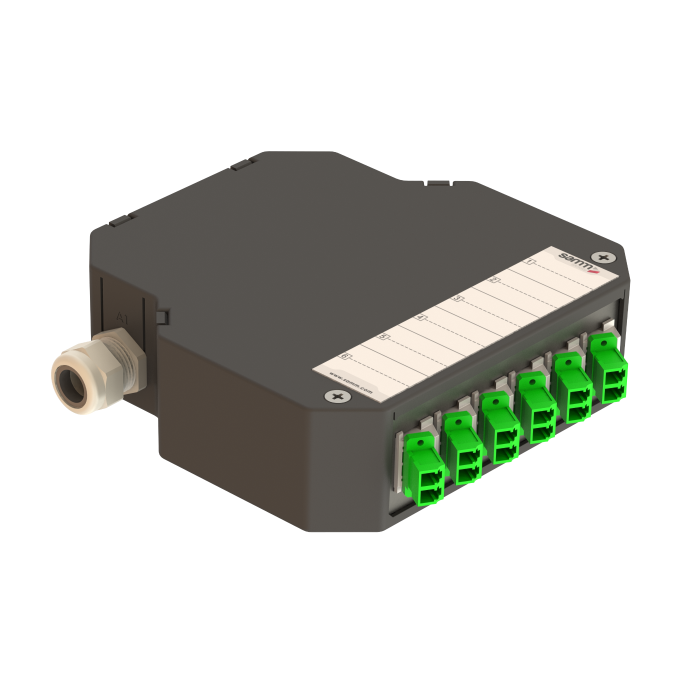

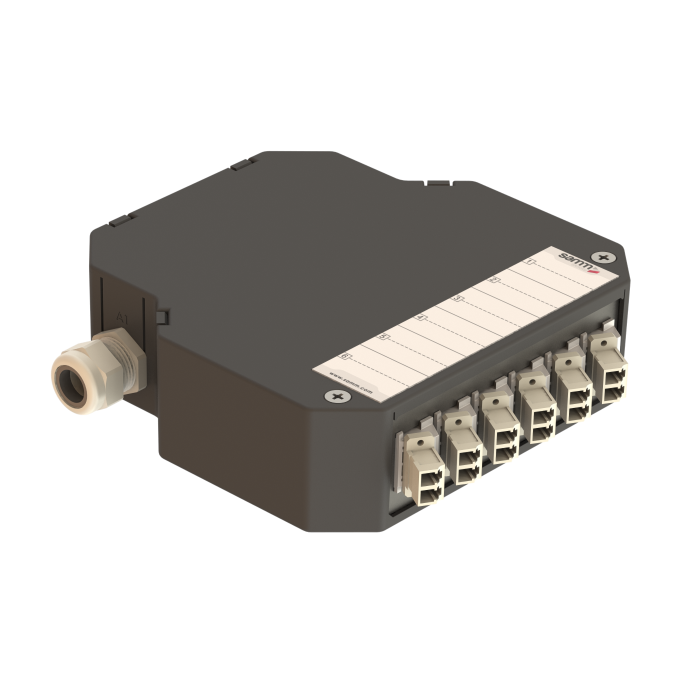

    The DP2 LC DIN rail termination box has 6 LC Duplex angled adapters with 12 fiber capacity. DP2 DIN Rail Fiber Optic Termination Boxes are a splicing / patching module that can be attached to standard 35 mm DIN Rails. These boxes provide termination of fiber optic cables in control cabinets and distribution boxes, with a maximum of 24 fibers.

    Features and Benefits

    • Made of a special PC/ABS plastic material
    • Quick and easy mounting for standard 35 mm DIN rails
    • High density solutions up to 24F with LC Quad and SC Duplex adapters
    • Four sided cable entry options
    • Horizontal and vertical mounting options
    • Suitable for pre-terminated fiber optic cables
    • Changeable angle direction (for angled face-plates) with patented clip structures
    • Gland or grommet option for cable entries and exits
    • Additional cable and strength member fixing accessories
    • Flame retardancy rating: UL94-V0
    • Temperature range: -20 °C to +60 °C

    Applications

    • Industrial Automation
    • Transportation
    • Oil & Gas
    • Power Generation and Transmission
    • Mining
    Packing Size (cm) Packing Weight (Kg)
    21 x 8 x 20 0.5
