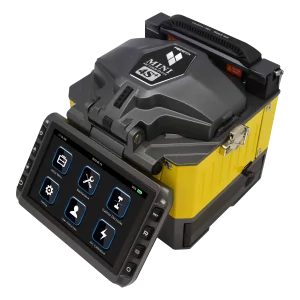

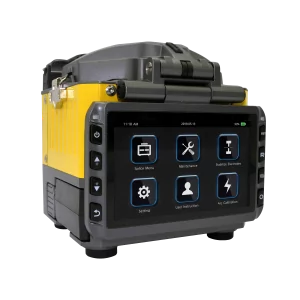

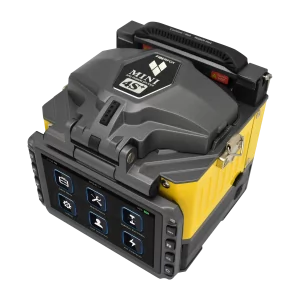

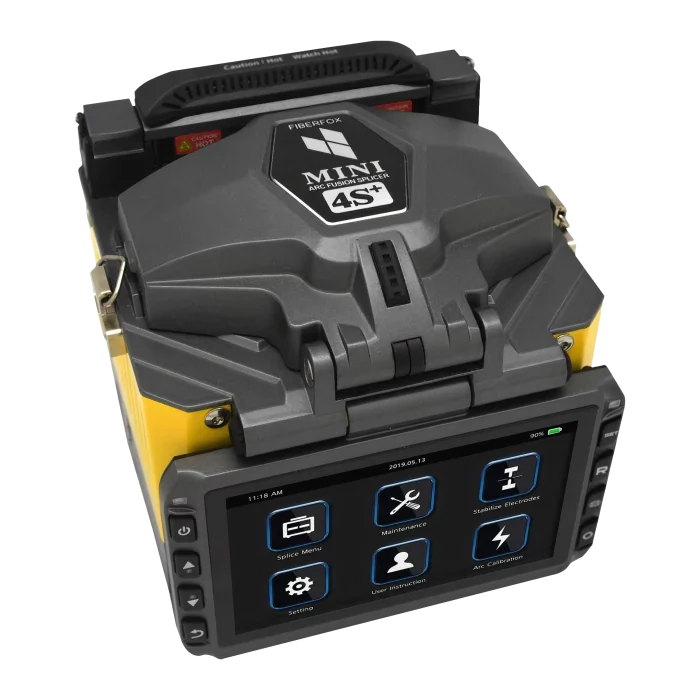

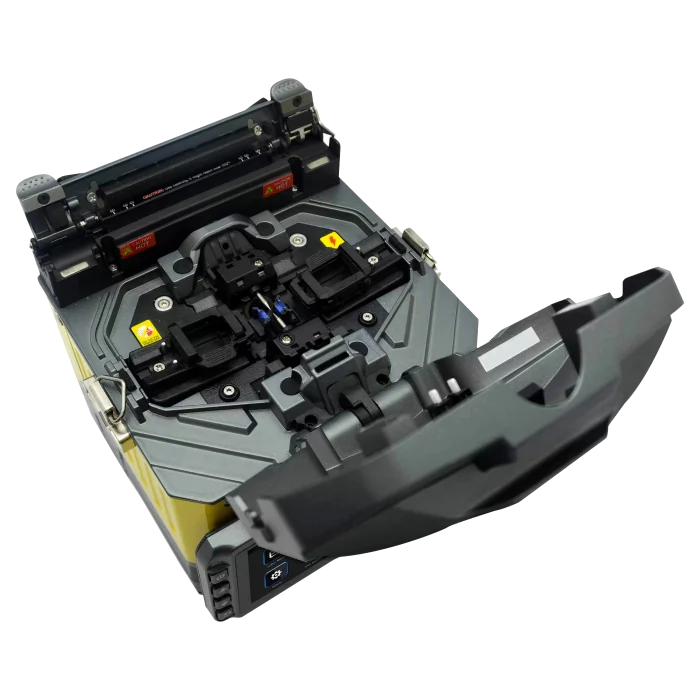

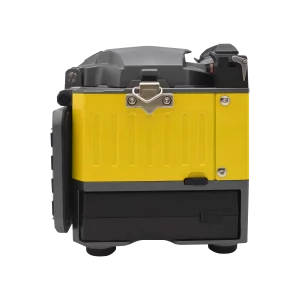

Mini 4S+ Fusion Splicer

Product Code MTVC726
Remaining Stock 0
Brand FiberFox
Mini 4S+ Fusion Splicer | Datasheet
To View the Price, Please Contact Us.
Alert When in Stock
Campaign
  • Features
  • Documents
  • Comments (1)
  • Request for Quote

  • Mini 4S+ Fusion Splicer

    Features

    Mini 4S+ fusion splicer with DAA (Digitalized Active Alignment) system from FiberFox. The Mini 4S+ has an average 0.03 dB splicing loss and 6 seconds fast performance. In addition, it can heat shrink a splice protector sleeve in 10 seconds from room temperature and in 6 seconds with continuous heating. It also uses two batteries that can last for 600 cycles of splicing and sleeve heating. Furthermore, FiberFox Mini 4S+ has LED lighting, a tempered glass touch screen and it is compatible with SOC (splice on connectors). All FiberFox fusion splicer dust-proof, anti-shock and waterproof.

    FiberFox Mini 4S+ Specs

    Splicing Method
    Active Alignment DAA(Digitalized Active Alignment)
    Average Loss
    SM(0.03dB) / MM(0.01dB) / DS(0.05dB) / NZDS(0.05dB) / G.657(0.03dB)
    Return Loss
    >>60dB
    Splice Time
    8s average SM / SM 6s Quick mode
    Electrode Lifespan
    >5,500 arcs
    Applicable Fiber
    SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A,
    IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
    Cleaved Length
    Coating Diameter < 0.25mm = 5-16mm, Coating Diameter > 0.25mm = 8-16mm minimum
    Coating Diameter
    100-3000um
    Cladding Diameter
    80-150um
    Heating Programs
    Factory installed mode : 4, User installable mode : 32
    Heating Time
    Typical 10s (60mm sleeve) / 5 Sec (Micro Sleeve)
    Protection Sleeve
    20, 25, 30, 40, 60mm, SOC-3.0, SOC-0.9 & Micro sleeve
    Data Output
    Mini USB 2.0
    Splice Programs
    Factory Installed : 12 user modes, User installable mode : 128
    Splice Memory
    Up to 10,000 records and 2,000 splice images
    Battery
    Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>
    Power Supply
    AC 100-240V input or DC 9~14V
    Monitor
    Color 4.3’’ HD LCD monitor, with Touch Screen (Tempered Glass)
    Cameras
    2 CCD camera system
    Magnification
    XY : 160 times , X/Y : 320 times
    Fiber Display
    X/Y or XY, single X.Y
    Weight
    2.88 lbs. (without battery)
    Size
    4.8 x 4.88 x 5.4 (in)
    Wind Protection
    The max wind speed 15m/s
    Operating Environment
    Elevation 0-5000 meters, -10 ~ +60 ˚C, 0~95% relative humidity
    Storage Condition
    Temperature -40 ~ 80˚C, 0~95% relative humidity, battery -20~30˚C
    Pull Test
    1.96~2.25N (standard)

    FiberFox Mini 4S+ Package Contents

    1. MINI 4S+ Fusion Splicer
    2. Cleaver Soft-case
    3. MINI 50GB+ Cleaver
    4. Power Cord
    5. USB Cable
    6. AC Adapter
    7. Car Cigar Cable
    8. Cooling Tray
    9. Spare Electrode
    10. 2 Battery Packs
    11. Shoulder Strap
    12. User Manual CD
    13. Hand Carrying Case
    Fiberfox Mini 4S+ Fusion Spliucer Package Contents
