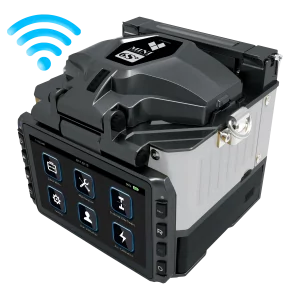

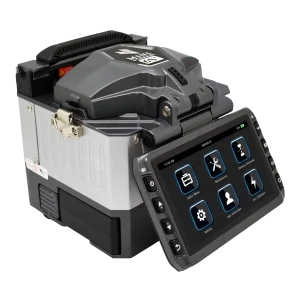

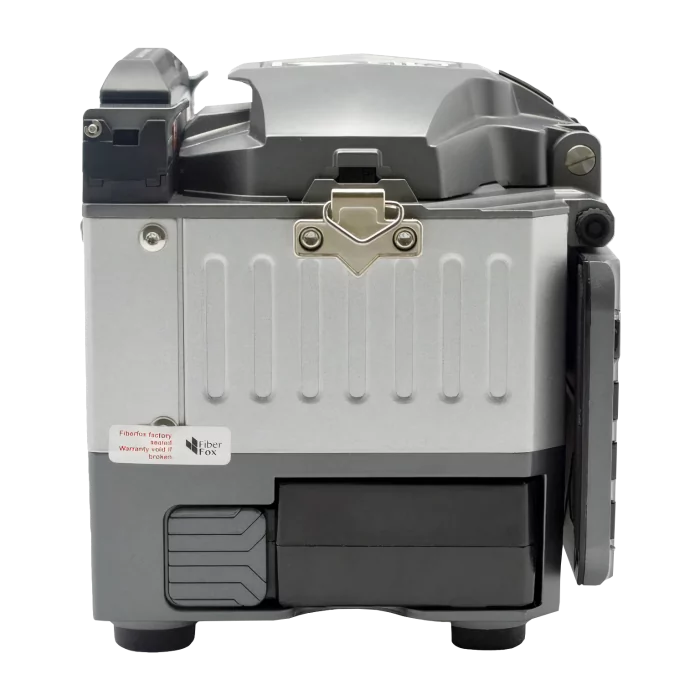

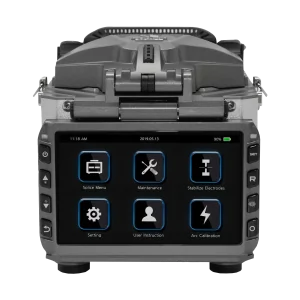

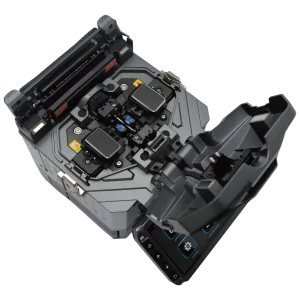

Mini 6S+ Wi-Fi Fusion Splicer
| Product Code | MTVC624 |
| Lead Time | 30 work days |
| Brand | FiberFox |
- Features
- Documents
- Comments (1)
- Request for Quote
-
Mini 6S+ Wi-Fi Fusion Splicer
FeaturesMini 6S+ W fusion splicer with WiFi connection and AOCAT (Automatic Optical Core Analysis & Tracking) system from FiberFox. The Mini 6S+ has and automatic alignment and fusion process and it has an average 0.02 dB splicing loss and 6 seconds fast performance. It can connect and send PDF reports to phones using a WiFi connection and the Android or the iOS application. Mini 6S+ W can heat shrink a splice protector sleeve in 10 seconds from room temperature and in 6 seconds with continuous heating, and it also uses two batteries that can last for 600 cycles of splicing and sleeve heating. Furthermore, FiberFox Mini 6S+ W has LED lighting, a tempered glass touch screen and it is compatible with SOC (splice on connectors). All FiberFox fusion splicer dust-proof, anti-shock and waterproof.
FiberFox Mini 6S+ W Fusion Splicer Specs
Splicing MethodCore Alignment AOCAT(Automatic Optical Core Analysis & Tracking) SystemAverage LossSM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)Return Loss>>60dBSplice Time6s average SMElectrodve Lifespan>5,500 arcsApplicable FiberSM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655),
IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)Cleaved LengthCoating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimumCoating Diameter100-3,000umCladding Diameter80-150umHeating ProgramsFactory installed mode : 10, User installable mode : 32Heating Time10s (* 6 sec with continuous heating mode)Protection Sleeve40mm, 60mm, SOC ConnectorData OutputMini USB - Wi-Fi - Phone AppSplice ProgramsFactory installed mode: 38, User installable mode: 90Splice MemoryUp to 10,000 records and 2,000 splice imagesBatteryTypical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>Power SupplyAC 100-240V input or DC 9~14VMonitor720P Color 4.3’’ LCD monitor, with Full Touch Screen (Tempered Glass)Cameras2 CCD camera systemmagnificationXY style : 160 power, X/Y : 320 powerFiber DisplayX/Y or XY, single X.YWeight3.09 lbs (without battery)Size4.8 x 4.88 x 5.4 (in)Wind ProtectionThe max wind speed 15m/sOperating EnvironmentElevation 0-5,000 meters, -15~60˚C, 0~95% relative humidityStorage ConditionTemperature -40 to 176˚F, 0~95% relative humidity, battery -4~86˚FPull Test1.96~2.25N (standard)FiberFox Mini 6S+ W Package Contents
- MINI 6S+ Wi-Fi Fusion Splicer
- Cleaver Soft-case
- MINI 50GB+ Cleaver
- Power Cord
- USB Cable
- AC Adapter
- Car Cigar Cable
- Cooling Tray
- Spare Electrode
- 2 Battery Packs
- Shoulder Strap
- User Manual CD
- Hand Carrying Case
