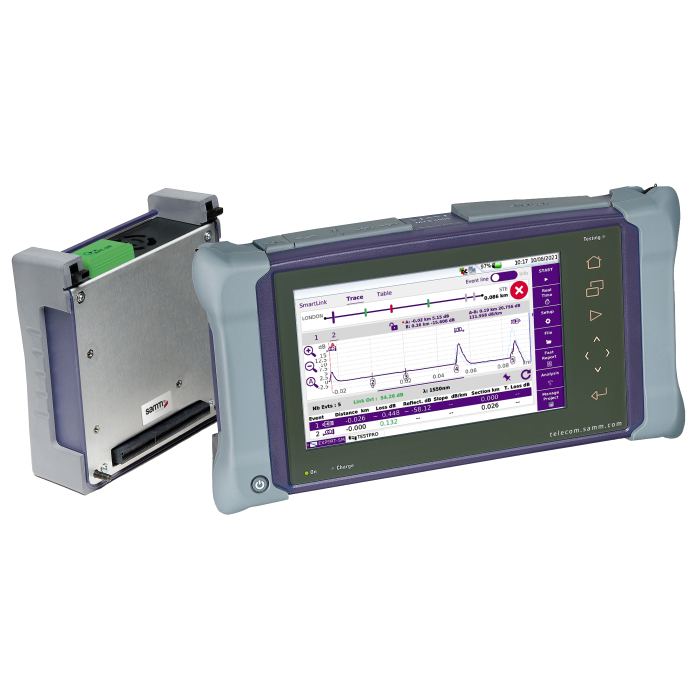

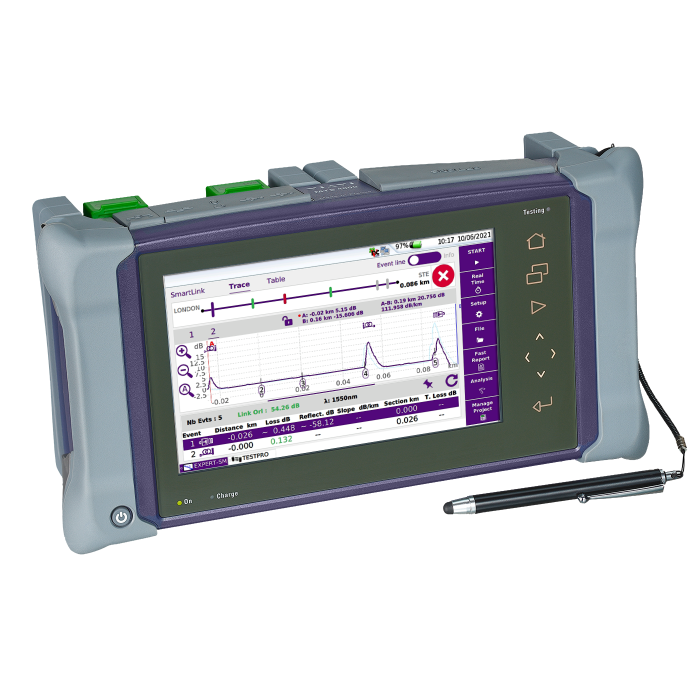

MTS-4000 OTDR + 4126A Module (Single Mode)

The VIAVI MTS-4000 OTDR, with the 4126A module, is designed for installation, turn-up and maintenance of fiber optic networks such as data center interconnection, metro, long-haul, FTTx/access, wireless/5G x-haul, point-to-point, point-to-multipoint and passive optical networks.

VIAVI 4126A OTDR Module Key Features

• Dynamic range of up to 46 dB and 256,000 capture points
• Unbalanced and indexed splitters, up to 1x256 split ratio, and PON-optimized for next-generation topologies
• Versions with two or three wavelengths, 1310/1550/1625 or 1650 nm
• Single test port connection for filtered and standard wavelengths allows for speedier, error-free testing while minimizing disruption to client services.
• The volume of test findings to manage is halved by consolidated reporting for all wavelengths tested by 50%.
• Check the test port's state to avoid bad launch circumstances and inaccurate event detection
• Supports SLM software designed for a variety of network applications (FTTA, FTTH, Enterprise, High fiber count cables)
• High fiber count, OTDR loopback, and bi-directional OTDR analysis (TrueBIDIR) are field upgradeable for FiberComplete PRO applications (MPO)

VIAVI MTS-4000 OTDR Highlights

• Solution that requires no training and has an easy icon-based graphical user interface (GUI) and multi-touch screen
• Combines several modules and functions into one little package.
• Integrating and supporting key fiber tools: Talkset, Automated Fiber Microscope, Visual Fault Locator, and Broadband Power Meter

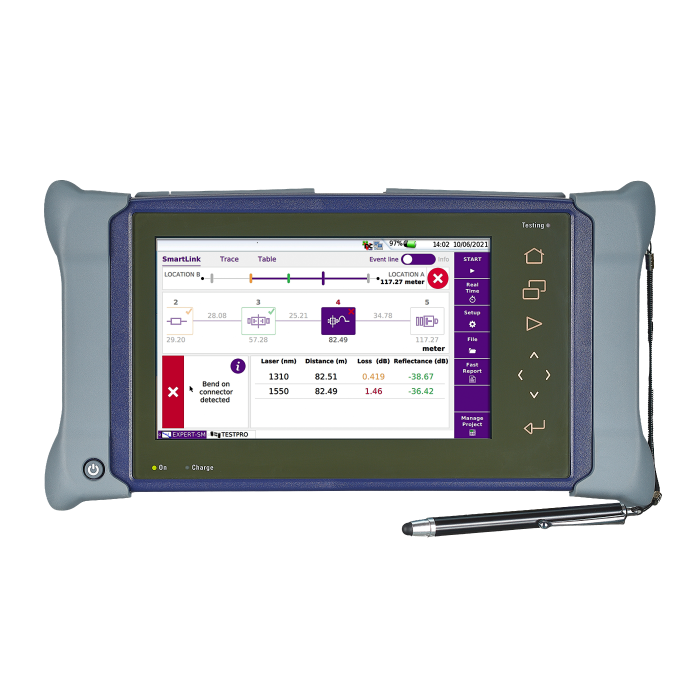

• With Smart Link Mapper (SLM), a clear icon-based view of the fiber link, and specialized applications for FTTH/PON, FTTx (P2P, Access, HFC), FTTA, Enterprise, and Data Center, you may simplify OTDR trace interpretation.
• Fast data transfer with flexible connectivity: Ethernet, WiFi, USB, and Bluetooth
• Coach and assist field technicians remotely with Smart Access Anywhere (SAA)
• VIAVI StrataSync provides optimal operation and workflow on the platform or through the cloud.

VIAVI MTS-4000 OTDR Applications

• Construction, activation, maintenance, and troubleshooting for the entire network lifecycle

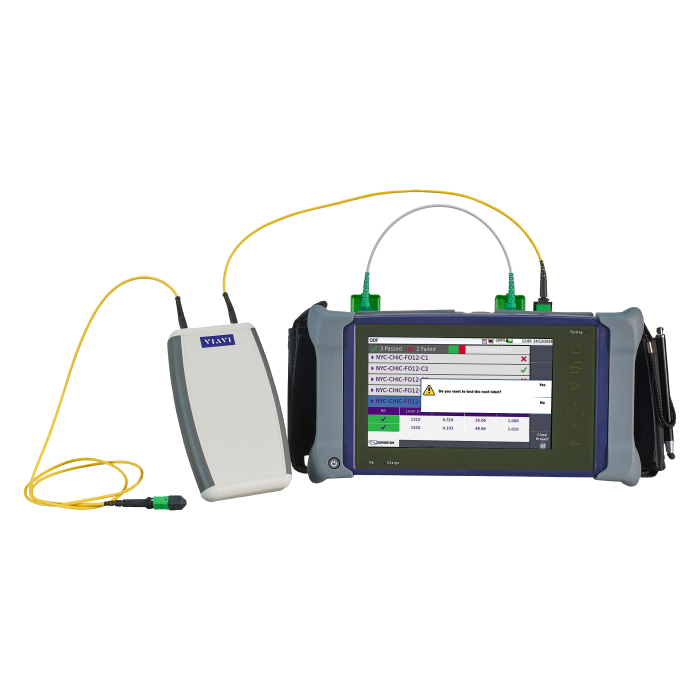

• FiberCompleteTM (automatic bi-directional IL/ORL & OTDR), connector inspection with IEC Pass/Fail Analysis, and OTDR Testing are essential fiber tests.
• For E-PON, G-PON, XGS-PON, and NG-PON2 networks, passive optical network (PON) optimized OTDR and selective power meters are available.
• Combining CWDM or DWDM OTDR and a C-OSA test platform is known as hybrid CWDM/DWDM.
• Single-mode tests for wireless deployments of C-RAN, DAS, and 5G
• Integrated multi-fiber MPO cable tier-2 certification solution for businesses and data centers
• Metro Core: certification of high-speed 10G, 40G, and 100G fiber links over large distances

VIAVI MTS-4000 OTDR Key Features

• Platform is lightweight, weighing only 1.4 kg (3 lbs), and has a 9-inch multi-touch screen with permanent function keys.
• Platform with two modules that can be replaced in the field
• Management of the workflow and advice for an error-free test
• Report generation using an on-board instrument, a PC or laptop, and StrataSync
• Affordable, portable, and handheld platform
• Modules' compatibility with the test platforms T-BERD/MTS-2000 and -5800
