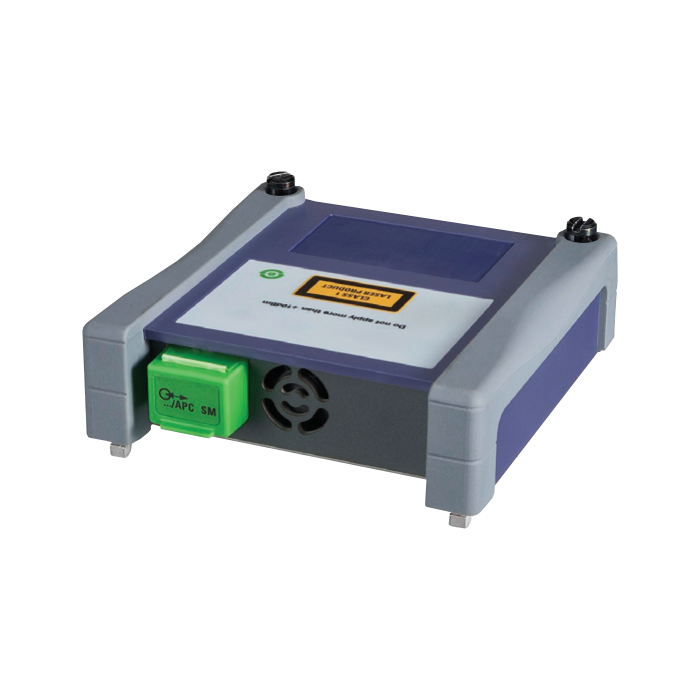

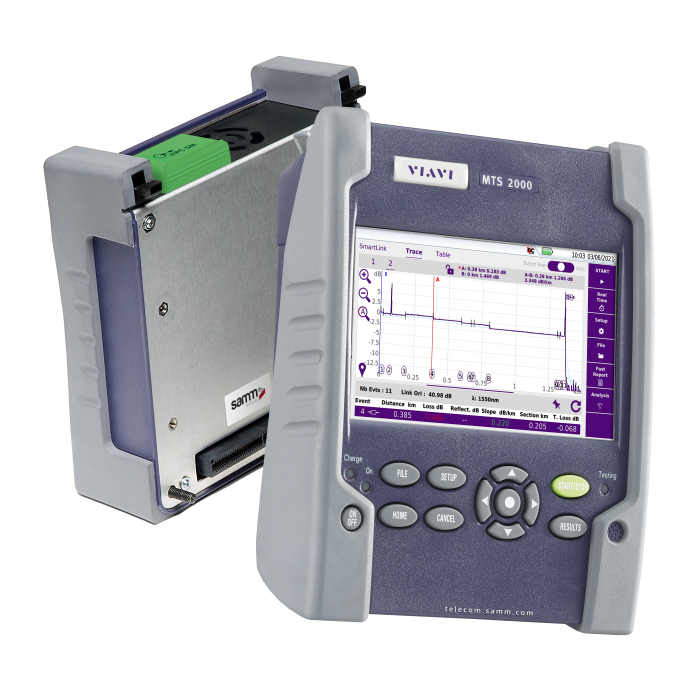

MTS-2000 + DWDM OTDR

Product Code T1345
Lead Time 30 work days
Brand VIAVI
Request for Quote
Campaign
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • MTS-2000 + DWDM OTDR

    Features

    The VIAVI MTS-2000 with C-band DWDM OTDR module gives cable, wireless, and telco operators the ability to characterize and diagnose DWDM and hybrid CWDM/DWDM networks completely from end to end. The optical performance of the DWDM OTDR module, along with the full complement of T-BERD/MTS, CellAdvisor 5G, and OneAdvisor-800 platform testing tools, ensures that thorough testing is carried out correctly the first time. Technicians need comprehensive and portable xWDM test tools as xWDM adoption in access networks for broadband services continues to increase.

    Standard testing features include

    • Auto-setting of the acquisition parameters
    • Summary results table with pass/fail analysis per the international standards
    • Comprehensive event diagnosis
    • FastReport onboard report generation

    Key Benefits

    • Characterize fiber links with exact DWDM wavelengths
    • Troubleshoot live networks with in-service testing capability
    • Verify end-to-end continuity through MUX/DEMUX and ROADMs using the continuous wave source function
    • Automatically identify and test DWDM port channel/link with patented Wavescan
    • Avoid accidental transceiver damage with SFP Protect

    Key Features

    • C-Band (1528nm to 1568nm) tunable DWDM OTDR module at ITU-T G.694.1 wavelengths (CH12 to CH62)
    • Integrated CW light source with modulation capability
    • Instantaneous traffic detection
    • Automatically identify Mux and Demux components with SmartLink Mapper

    Applications

    • Metro & access rings, business to business, advanced C-RAN fronthauls & next gen FTTH networks
    • Qualification of fronthaul access networks
    • Testing new DWDM wavelength routes without disrupting traffic on active channels
    • Pinpointing faults and their exact locations while in service

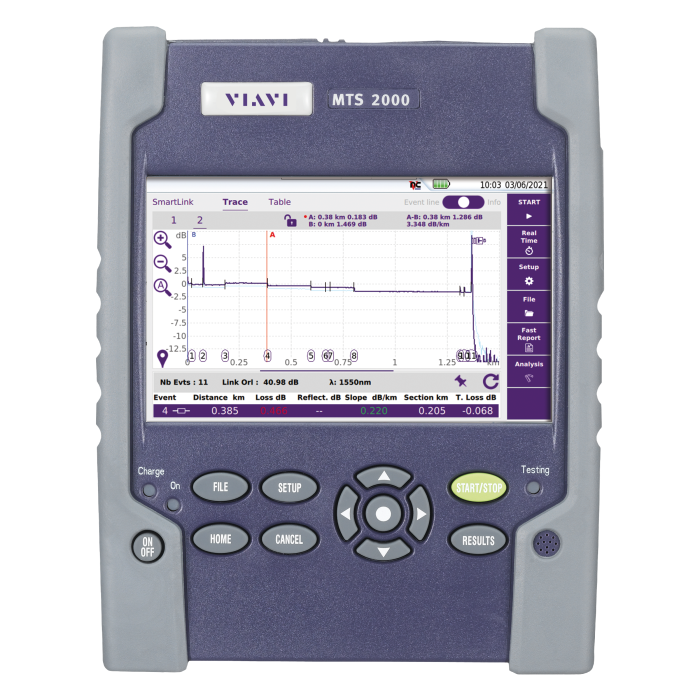

    VIAVI MTS-2000 Details

    1. 5-inch touch screen
    2. Charge indicator
    3. On indicator
    4. File menu
    5. Setup menu
    6. Start/Stop
    7. Testing indicator
    8. On/Off
    9. Home page
    10. Cancel
    11. Direction and validation keys
    12. Results page
    13. Loudspeaker
    14. Headset jack
    15. AC/DC input
    16. Slave mini USB port
    17. RJ45 connector
    18. Master USB ports (2)
    19. Power meter port
    20. VFL or talk set port
    21. WiFi and Bluetooth options
    22. Stylus for touch screen
      Multimode Singlemode+Multimode Singlemode
    Type MM OTDR QUAD OTDR LM OTDR MA OTDR MP OTDR
    Wavelengths 850/1300 850/1300/1310/1550 1310/1550/1625/1650 1310/1550/1625/1650 1310/1490/1550/1625/1650 nm
    Dyn. range 27/25dB 27/25/37/35dB 34/32/32/30dB 37/35/35/33dB 42/40/40/40/40dB
    EDZ 0.8 m 08 m MM / 0.9 m SM 1 m 0.9 m 0.8 m
    ADZ 4 m 4 m 4 m 4 m 4 m
    Applications - MM networks (Datacom/IT/Private Enterprises) - MM networks
    - Short/Medium Range SM Distances
    - Short Distances
    - Test before or after the splitter or up to 1/16 splitter on PON Networks
    - Short/Medium Range Distances
    - Test through up to 1/32 splitter on PON Networks
    - Medium/Long  Range Distances
    - Test through up to 1/128 splitter on PON Networks
