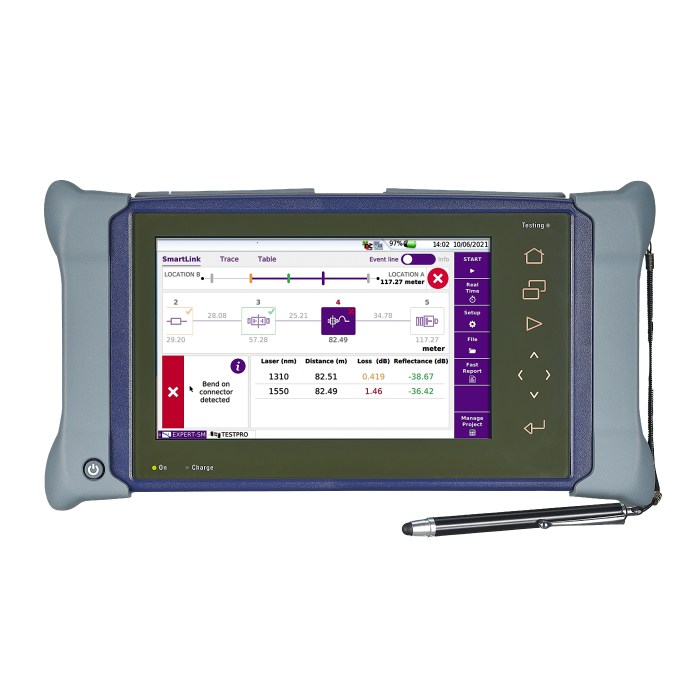

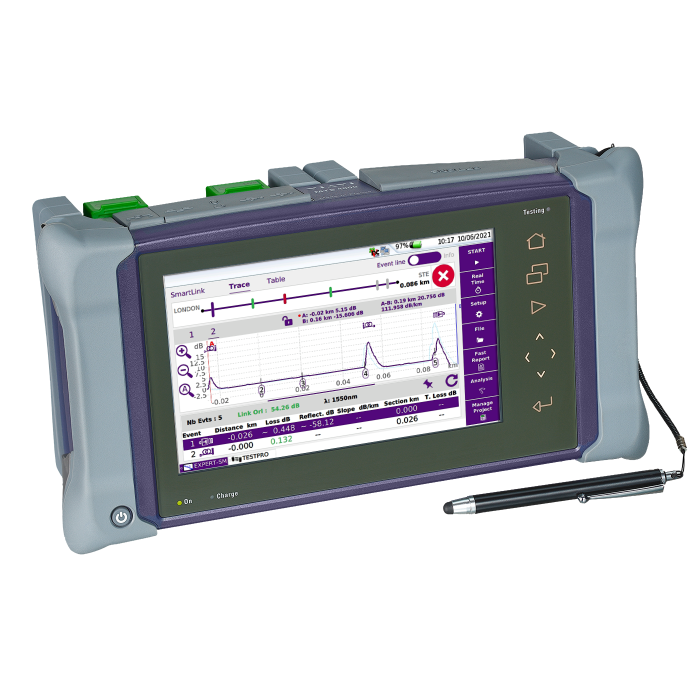

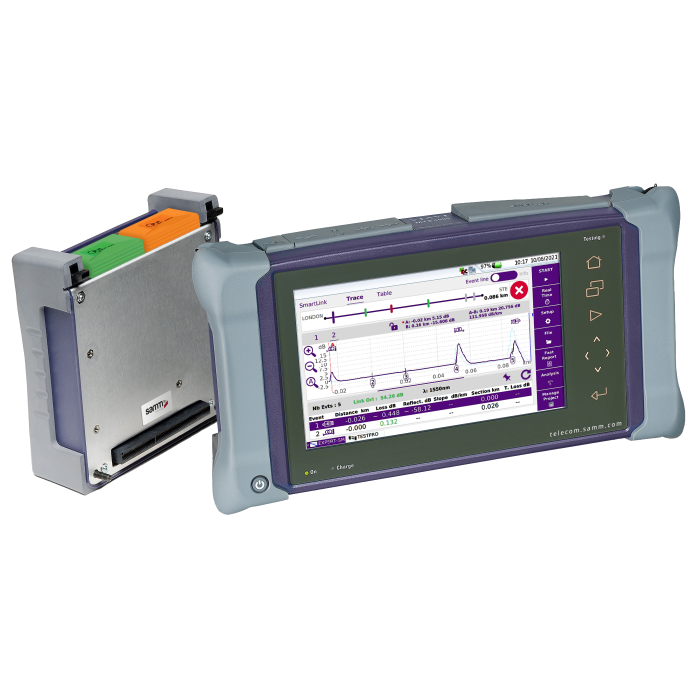

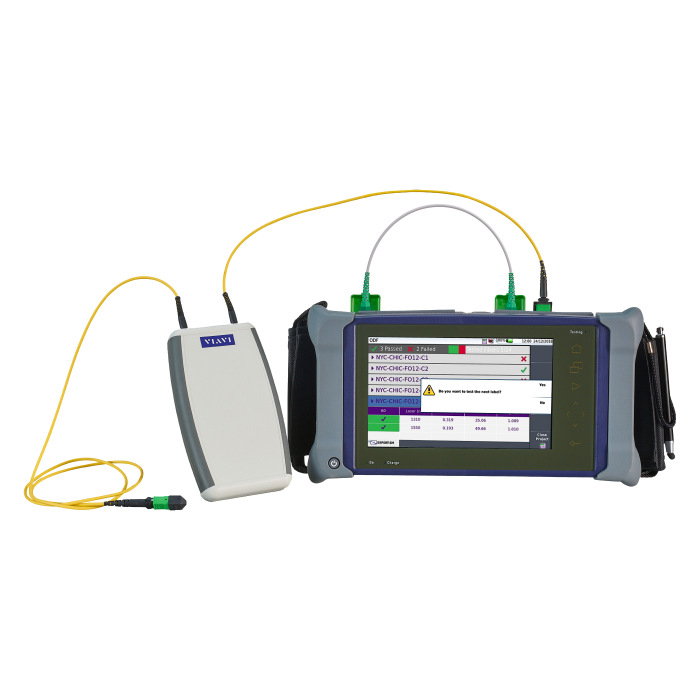

MTS-4000 OTDR + 4146 Quad Module (Single Mode + Multi Mode)

Product Code MTS-4000 OTDR + 4146 Quad
Lead Time 30 work days
Brand VIAVI
Request for Quote
Campaign
Alarm Icon Heart icon
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • MTS-4000 OTDR + 4146 Quad Module (Single Mode + Multi Mode)

    Features

    The VIAVI MTS-4000 OTDR, with the Quad module, is designed for installation, turn-up and maintenance of fiber optic networks that combine single-mode and multi-mode, such as premises, enterprise, access, metro, wireless fronthaul and backhaul networks.

    VIAVI Quad OTDR Module Key Features

    • Single-mode dynamic range up to 37 dB and multi-mode dynamic range up to 26 dB
    • Both a dual-wavelength variant with 850 and 1300 nm and a quad-wavelength version with 850, 1300, 1310, and 1550 nm
    • Integrated power meter with continuous wave (CW) light source
    • PASS/FAIL limits for TIA/IEC
    • Multi-mode measurement of propagation delay (TIA-568-C)
    • Optimized for testing from 10 MB to 40 GE
    • Utilizing an external modal controller, certifies IEC 61280-4-1 compliance for Tier 2 premises networks.
    • Software for intelligent optical applications, including SLM, FTTA-SLM, and FTTHSLM

    VIAVI MTS-4000 OTDR Highlights

    • Solution that requires no training and has an easy icon-based graphical user interface (GUI) and multi-touch screen
    • Combines several modules and functions into one little package.
    • Integrating and supporting key fiber tools: Talkset, Automated Fiber Microscope, Visual Fault Locator, and Broadband Power Meter
    • With Smart Link Mapper (SLM), a clear icon-based view of the fiber link, and specialized applications for FTTH/PON, FTTx (P2P, Access, HFC), FTTA, Enterprise, and Data Center, you may simplify OTDR trace interpretation.
    • Fast data transfer with flexible connectivity: Ethernet, WiFi, USB, and Bluetooth
    • Coach and assist field technicians remotely with Smart Access Anywhere (SAA)
    • VIAVI StrataSync provides optimal operation and workflow on the platform or through the cloud.

    VIAVI MTS-4000 OTDR Applications

    • Construction, activation, maintenance, and troubleshooting for the entire network lifecycle
    • FiberCompleteTM (automatic bi-directional IL/ORL & OTDR), connector inspection with IEC Pass/Fail Analysis, and OTDR Testing are essential fiber tests.
    • For E-PON, G-PON, XGS-PON, and NG-PON2 networks, passive optical network (PON) optimized OTDR and selective power meters are available.
    • Combining CWDM or DWDM OTDR and a C-OSA test platform is known as hybrid CWDM/DWDM.
    • Single-mode and multi-mode tests for wireless deployments of C-RAN, DAS, and 5G
    • Integrated multi-fiber MPO cable tier-2 certification solution for businesses and data centers
    • Metro Core: certification of high-speed 10G, 40G, and 100G fiber links over large distances

    VIAVI MTS-4000 OTDR Key Features

    • Platform is lightweight, weighing only 1.4 kg (3 lbs), and has a 9-inch multi-touch screen with permanent function keys.
    • Platform with two modules that can be replaced in the field
    • Management of the workflow and advice for an error-free test
    • Report generation using an on-board instrument, a PC or laptop, and StrataSync
    • Affordable, portable, and handheld platform
    • Modules' compatibility with the test platforms T-BERD/MTS-2000 and -5800
