MTS-2000 OTDR + FiberComplete Module VIAVI
| Product Code | T1346 |
| Lead Time | 30 work days |
| Brand | VIAVI |
- Features
- Documents
- Comments (0)
- Request for Quote
-

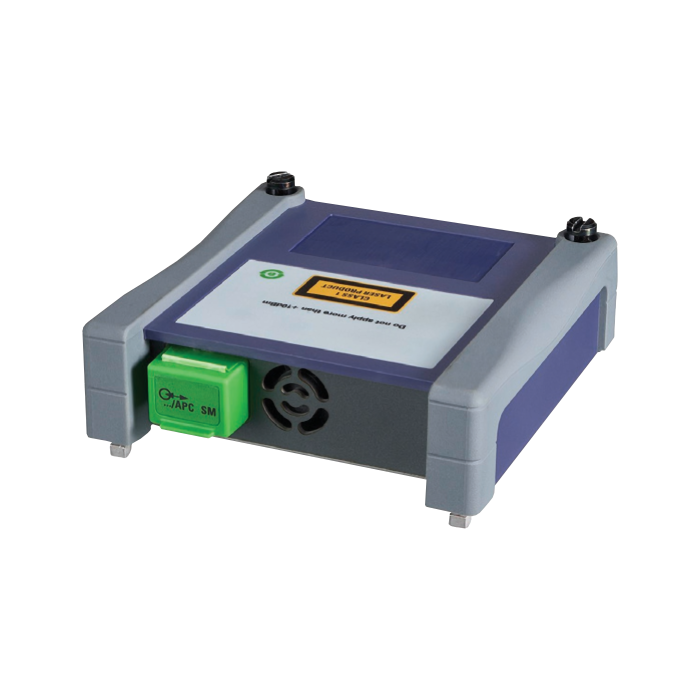

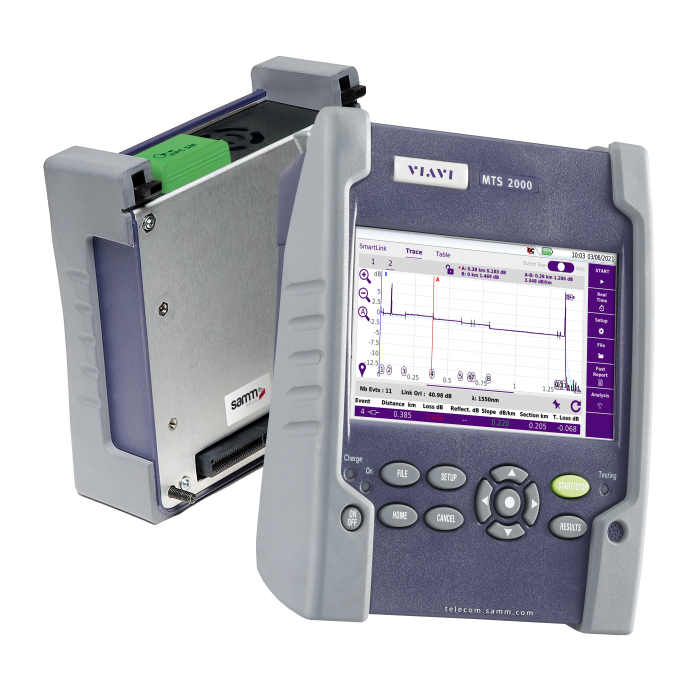

MTS-2000 OTDR + FiberComplete Module
FeaturesThe VIAVI MTS-2000 OTDR with FiberComplete Module is the first method to completely automate all essential fiber-qualification tests, including bidirectional insertion loss (IL), optical return loss (ORL), and optical time domain reflectometry (OTDR), with a single module from a single optical port. Every technician may now be supplied with a single piece of equipment that meets all the requirements for conventional fiber testing. The most comprehensive fiber-testing solution for quickly and easily assessing point-to-point or point-to-multipoint passive-optical networks is provided by the MTS-2000 OTDR VIAVI with FiberComplete module.
VIAVI MTS-2000 OTDR with FiberComplete Key Benefits
- One powerful unit equips field technicians with all the fundamental fiber tests they need
- Cuts test time by more than half with fewer connections and disconnections, automatic continuity check, and an intelligent fault finder
- Minimizes training and gets reliable measurements using a single connection port that combines a fully automated process with easy-to-read results
- Optimizes workflow: Compiles test results into one complete cable view, automatically stores measurements
VIAVI MTS-2000 OTDR with FiberComplete Key Features
- 4.5 s measurement time for bi-directional IL/ORL and length at two wavelengths
- Full setup and data exchange between near end and far end units for fewer mistakes and retests
- Smart Link Mapper (SLM) icon-based map view of the fiber link
- Real-time continuity check and automatic product pairing (single strand and ribbon/MPO cables)
- Manage fiber and cable results
- Step-by-step wizard lets you reference initial IL/ORL tests
- Smart Access Anywhere (SAA) for remote control and field tech support
- StrataSync enabled for centralized cloud based asset, configuration, test data and workflow management
VIAVI MTS-2000 OTDR with FiberComplete Applications
- Measure bidirectional OTDR, IL, and ORL with one unit
- Troubleshoot in FaultFinder mode for immediate results
- Conduct acceptance tests in Bidirectional OTDR mode
- Certify ribbon and MPO-based cables by adding VIAVI MPO switch module

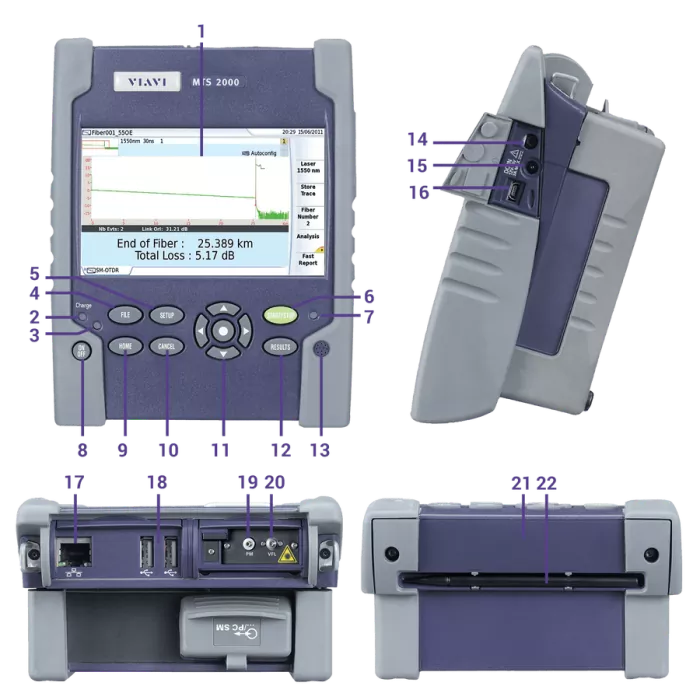

VIAVI MTS-2000 Details
- 5-inch touch screen
- Charge indicator
- On indicator
- File menu
- Setup menu
- Start/Stop
- Testing indicator
- On/Off
- Home page
- Cancel
- Direction and validation keys
- Results page
- Loudspeaker
- Headset jack
- AC/DC input
- Slave mini USB port
- RJ45 connector
- Master USB ports (2)
- Power meter port
- VFL or talk set port
- WiFi and Bluetooth options
- Stylus for touch screen
VIAVIMultimode Singlemode+Multimode Singlemode Type MM OTDR QUAD OTDR LM OTDR MA OTDR MP OTDR Wavelengths 850/1300 850/1300/1310/1550 1310/1550/1625/1650 1310/1550/1625/1650 1310/1490/1550/1625/1650 nm Dyn. range 27/25dB 27/25/37/35dB 34/32/32/30dB 37/35/35/33dB 42/40/40/40/40dB EDZ 0.8 m 08 m MM / 0.9 m SM 1 m 0.9 m 0.8 m ADZ 4 m 4 m 4 m 4 m 4 m Applications - MM networks (Datacom/IT/Private Enterprises) - MM networks
- Short/Medium Range SM Distances- Short Distances
- Test before or after the splitter or up to 1/16 splitter on PON Networks- Short/Medium Range Distances
- Test through up to 1/32 splitter on PON Networks- Medium/Long Range Distances
- Test through up to 1/128 splitter on PON Networks
