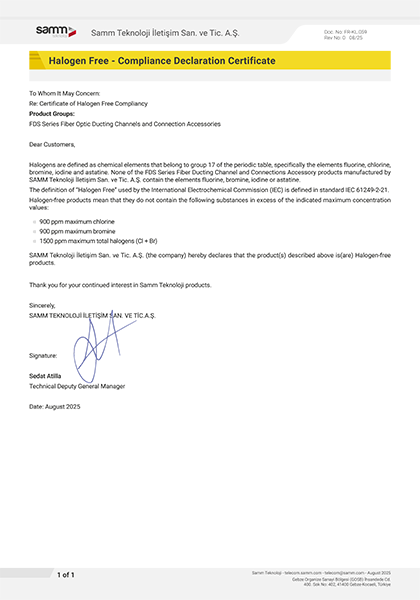

Halogen Free Compliance Certificate | FDS Resources

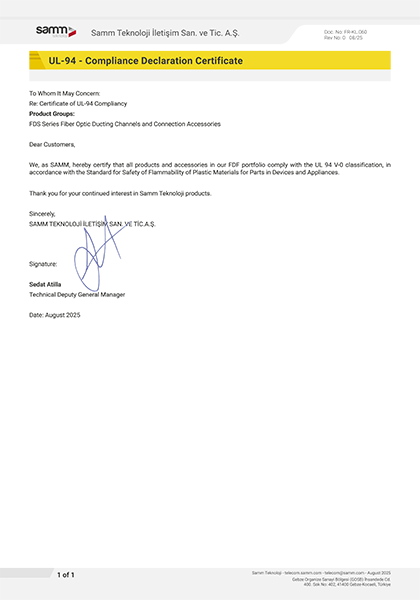

UL-94 Compliance Certificate | FDS Resources
Installation Videos
Product Drawings Resource Center
| No | Part Number | Description | Drawing Format | Illustration | ||
|---|---|---|---|---|---|---|
| DXF | BIM | |||||

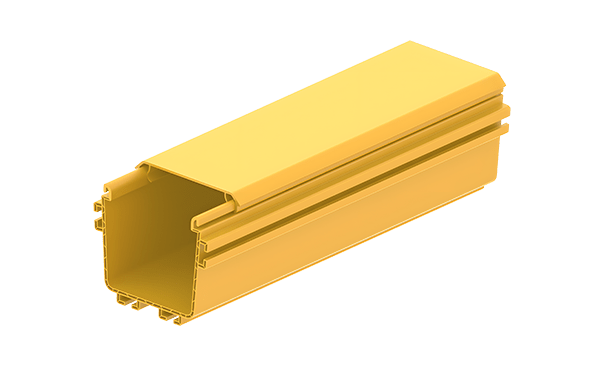

| 01 | ME11001-1X/ME11001-2X | FDS_100mm Straight Solid Channel | Download |
|
||

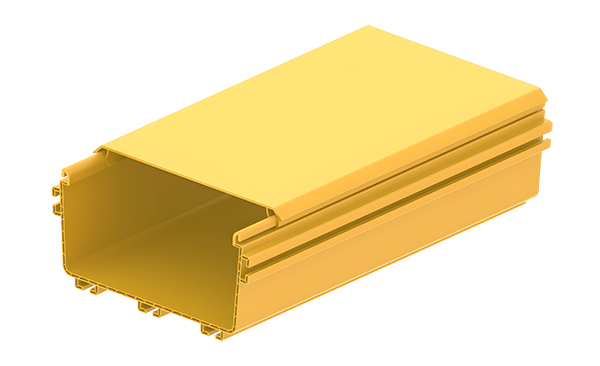

| 02 | ME12001-1X/ME12001-2X | FDS_200mm Straight Solid Channel | Download |
|
||

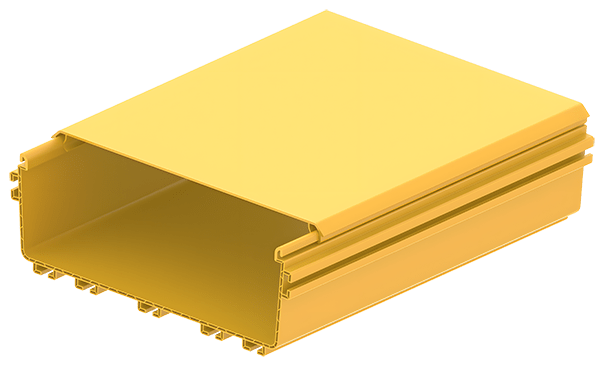

| 03 | ME13001-1X/ME13001-2X | FDS_300mm Straight Solid Channel | Download |
|
||
| 04 | ME11002-0X | FDS_100mm Channel to Channel Coupler | Download |
|
||

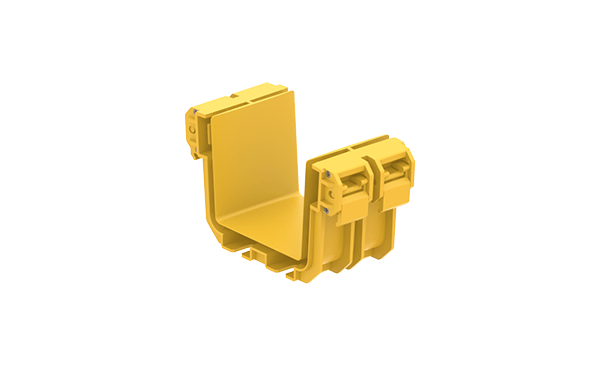

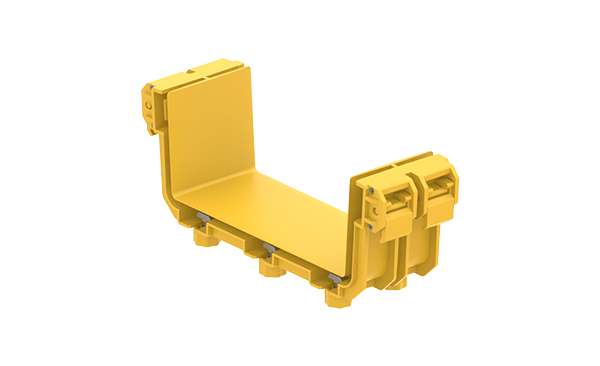

| 05 | ME12002-0X | FDS_200mm Channel to Channel Coupler | Download |
|
||

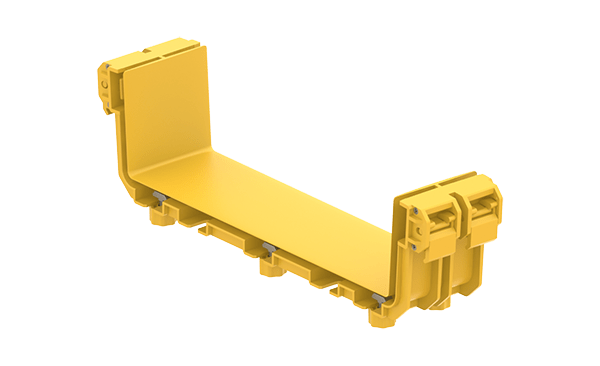

| 06 | ME13002-0X | FDS_300mm Channel to Channel Coupler | Download |
|
||

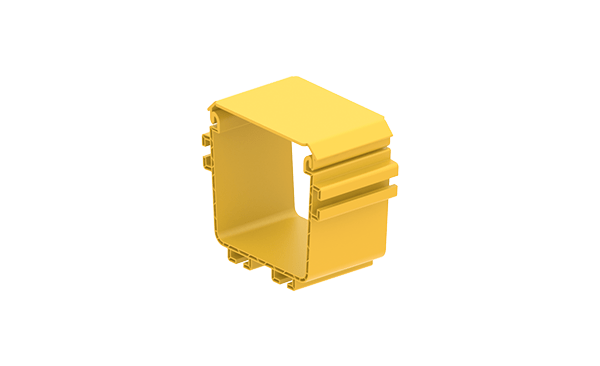

| 07 | ME11004-0X | FDS_100mm Accessory to Accessory Coupler | Download |
|
||

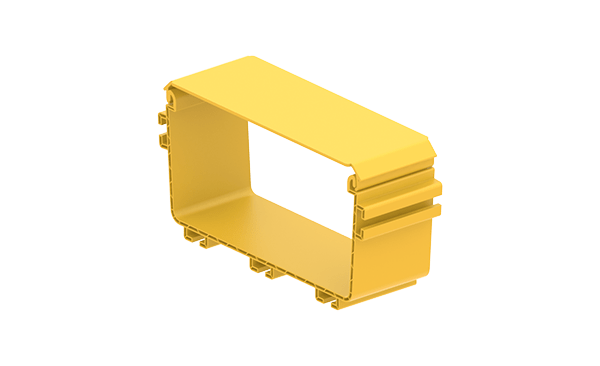

| 08 | ME12004-0X | FDS_200mm Accessory to Accessory Coupler | Download |
|
||

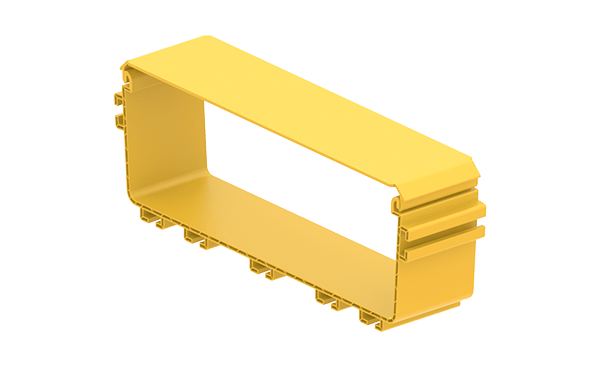

| 09 | ME13004-0X | FDS_300mm Accessory to Accessory Coupler | Download |
|
||

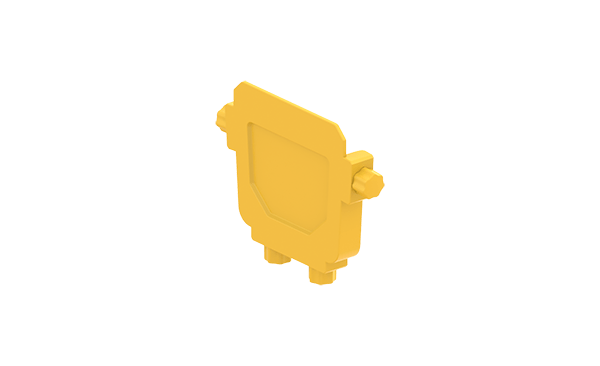

| 10 | ME11003-0X | FDS_100mm Channel End Cap | Download |
|
||

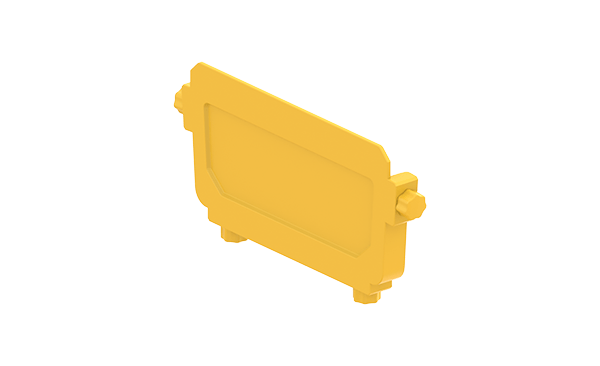

| 11 | ME12003-0X | FDS_200mm Channel End Cap | Download |
|
||

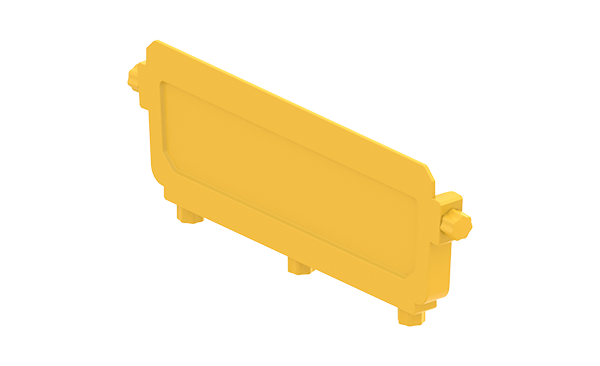

| 12 | ME13003-0X | FDS_300mm Channel End Cap | Download |
|
||

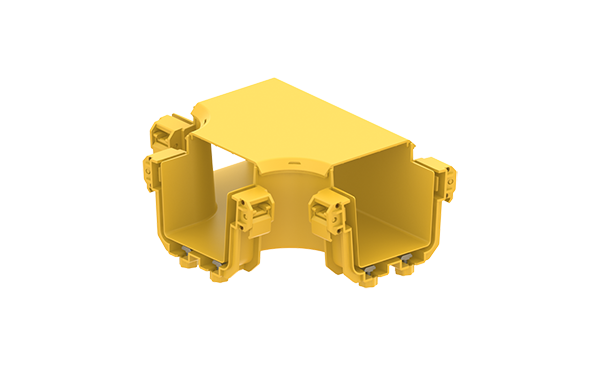

| 13 | ME11005-1X/ME11005-2X | FDS_100mm Horizontal TEE Connection | Download |
|
||

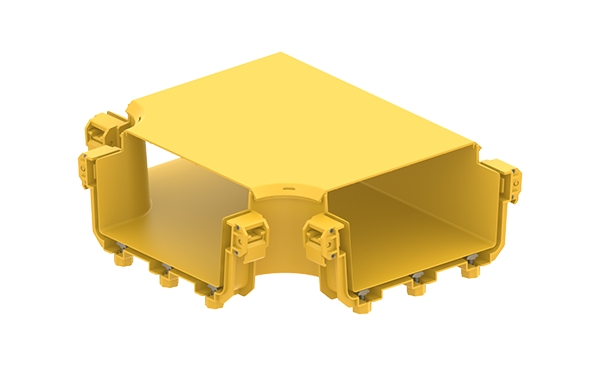

| 14 | ME12005-1X/ME12005-2X | FDS_200mm Horizontal TEE Connection | Download |
|
||

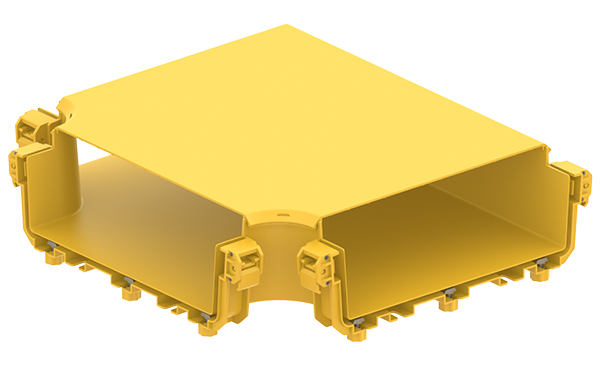

| 15 | ME13005-1X/ME13005-2X | FDS_300mm Horizontal TEE Connection | Download |
|
||

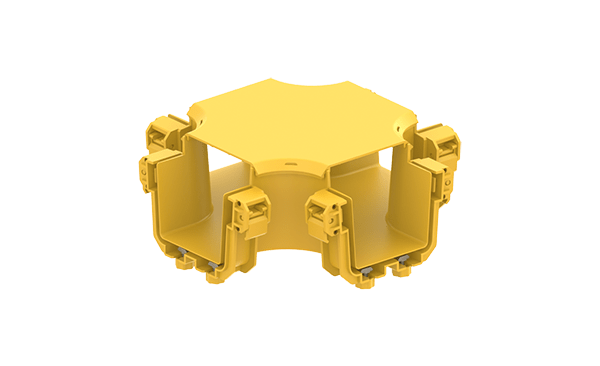

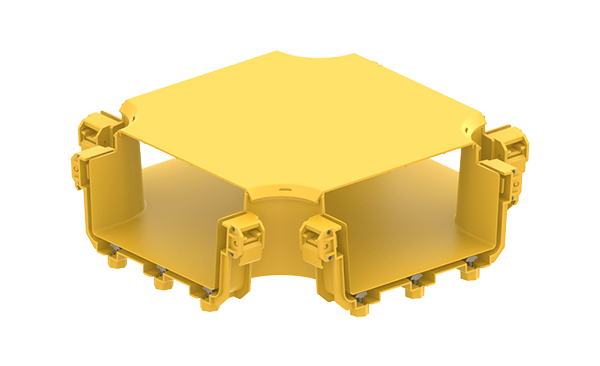

| 16 | ME11008-1X/ME11008-2X | FDS_100mm 4-Way Cross Connection | Download |
|
||
| 17 | ME12008-1X/ME12008-2X | FDS_200mm 4-Way Cross Connection | Download |
|
||

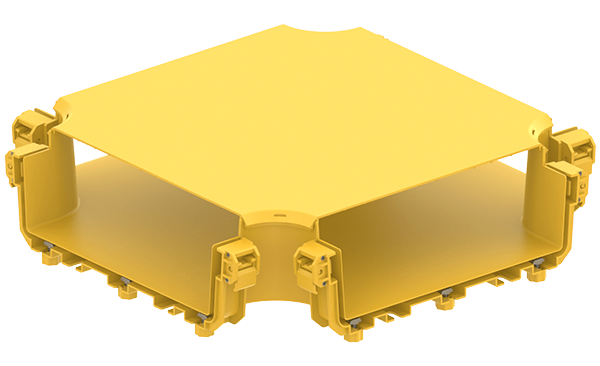

| 18 | ME13008-1X/ME13008-2X | FDS_300mm 4-Way Cross Connection | Download |
|
||

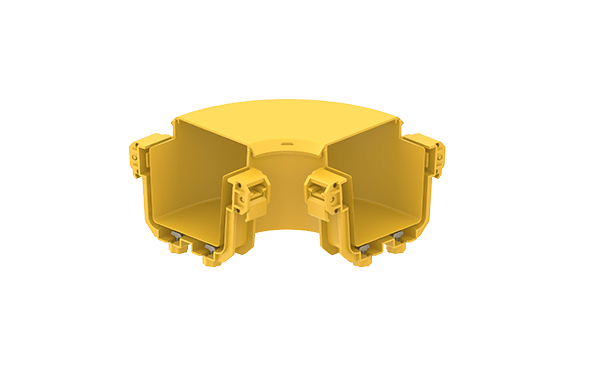

| 19 | ME11007-1X/ME11007-2X | FDS_100mm 90˚ Horizontal Elbow Connection | Download |
|
||

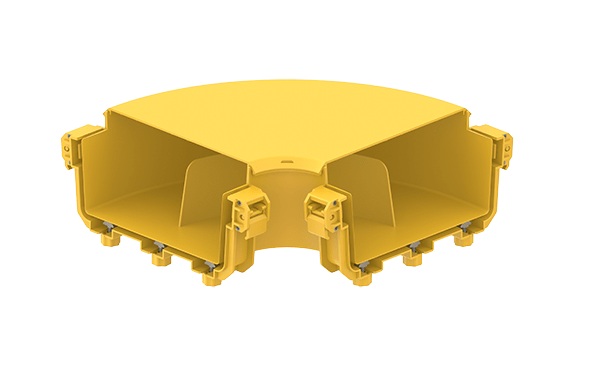

| 20 | ME12007-1X/ME12007-2X | FDS_200mm 90˚ Horizontal Elbow Connection | Download |
|
||

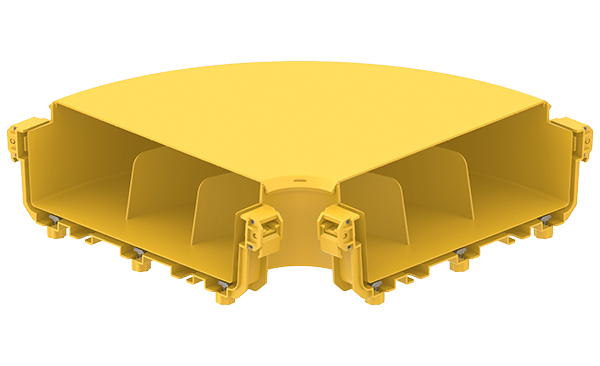

| 21 | ME13007-1X/ME13007-2X | FDS_300mm 90˚ Horizontal Elbow Connection | Download |
|
||

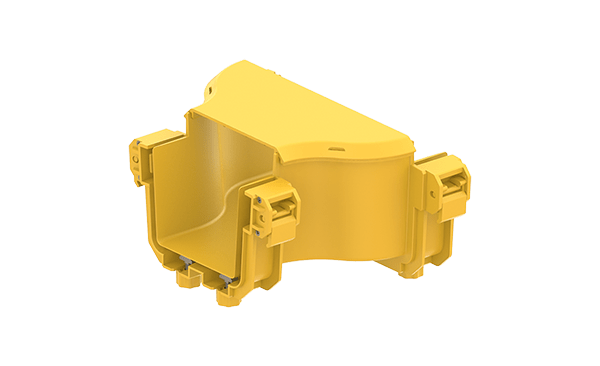

| 22 | ME11011-1X/ME11011-2X | FDS_200/100mm Line Reducer | Download |
|
||

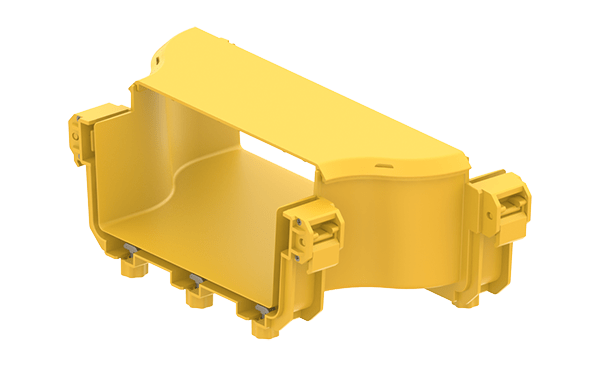

| 23 | ME11012-1X/ME11012-2X | FDS_300/200mm Line Reducer | Download |
|
||

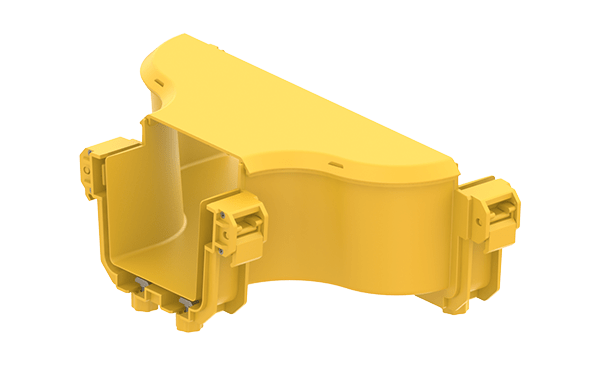

| 24 | ME11013-1X/ME11013-2X | FDS_300/100mm Line Reducer | Download |
|
||

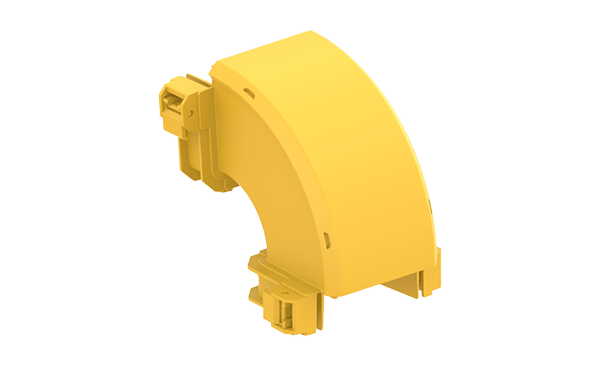

| 25 | ME11009-1X/ME11009-2X | FDS_100mm 90˚ Vertical Outside Elbow | Download |
|
||

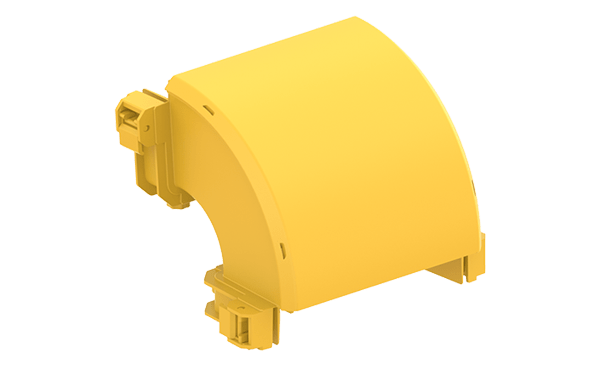

| 26 | ME12009-1X/ME12009-2X | FDS_200mm 90˚ Vertical Outside Elbow | Download |
|
||

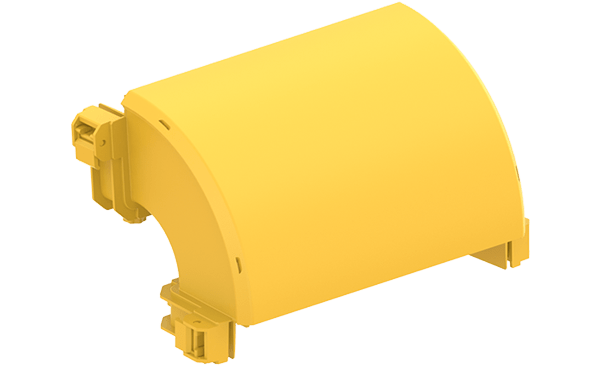

| 27 | ME13009-1X/ME13009-2X | FDS_300mm 90˚ Vertical Outside Elbow | Download |
|
||

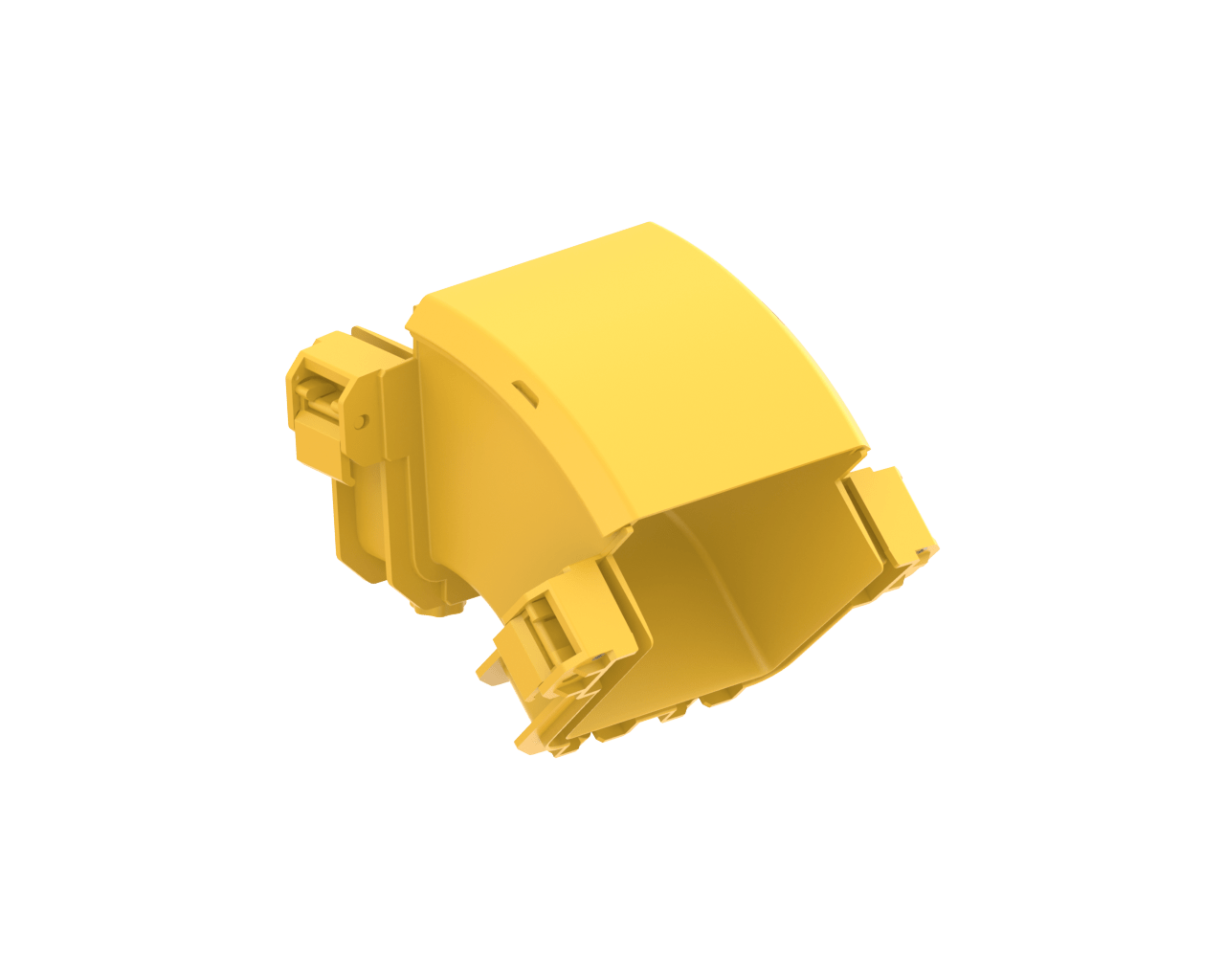

| 28 | ME11019-1X/ME11019-2X | FDS_100mm 45˚ Vertical Outside Elbow | Download |
|
||

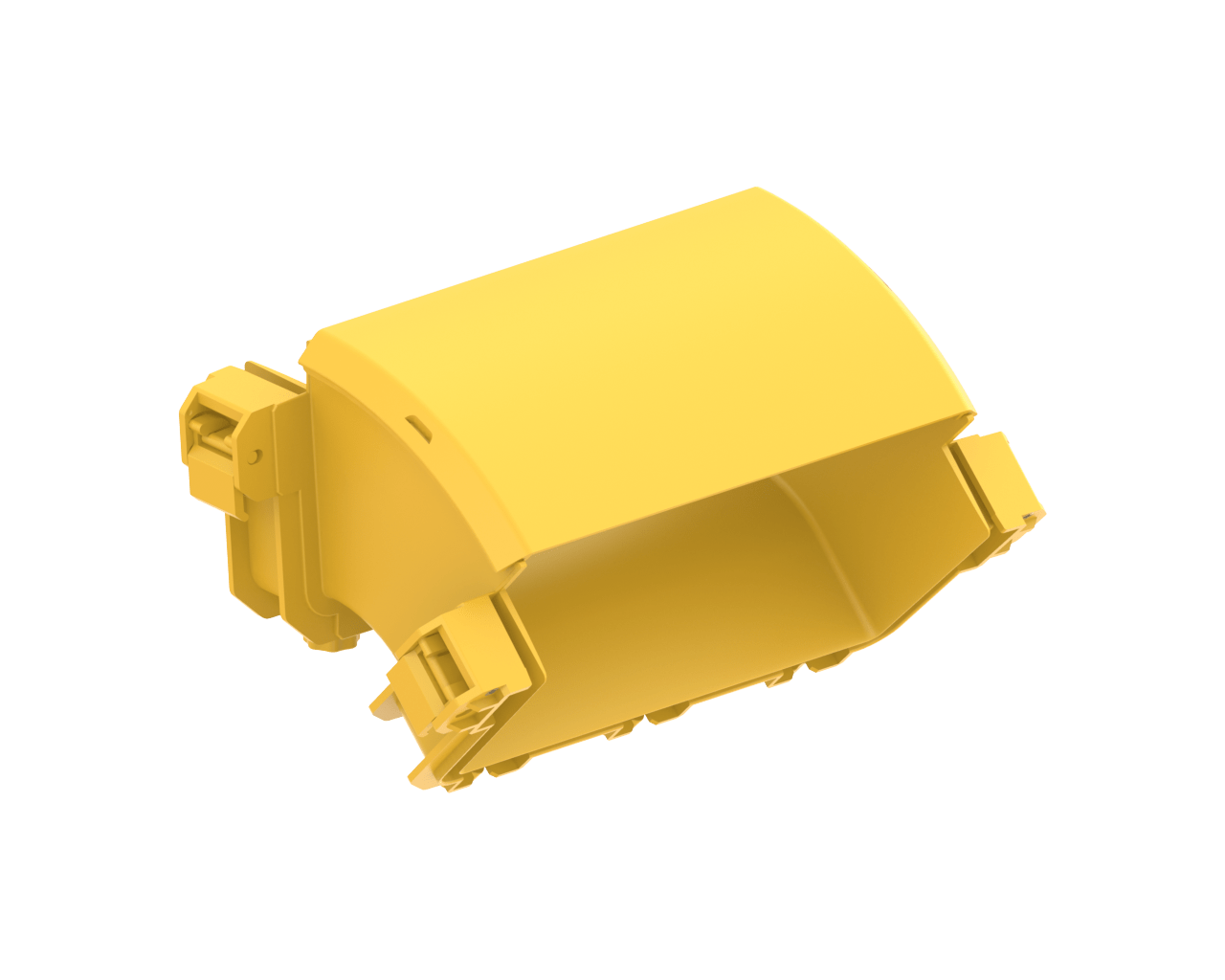

| 29 | ME12019-1X/ME12019-2X | FDS_200mm 45˚ Vertical Outside Elbow | Download |
|
||

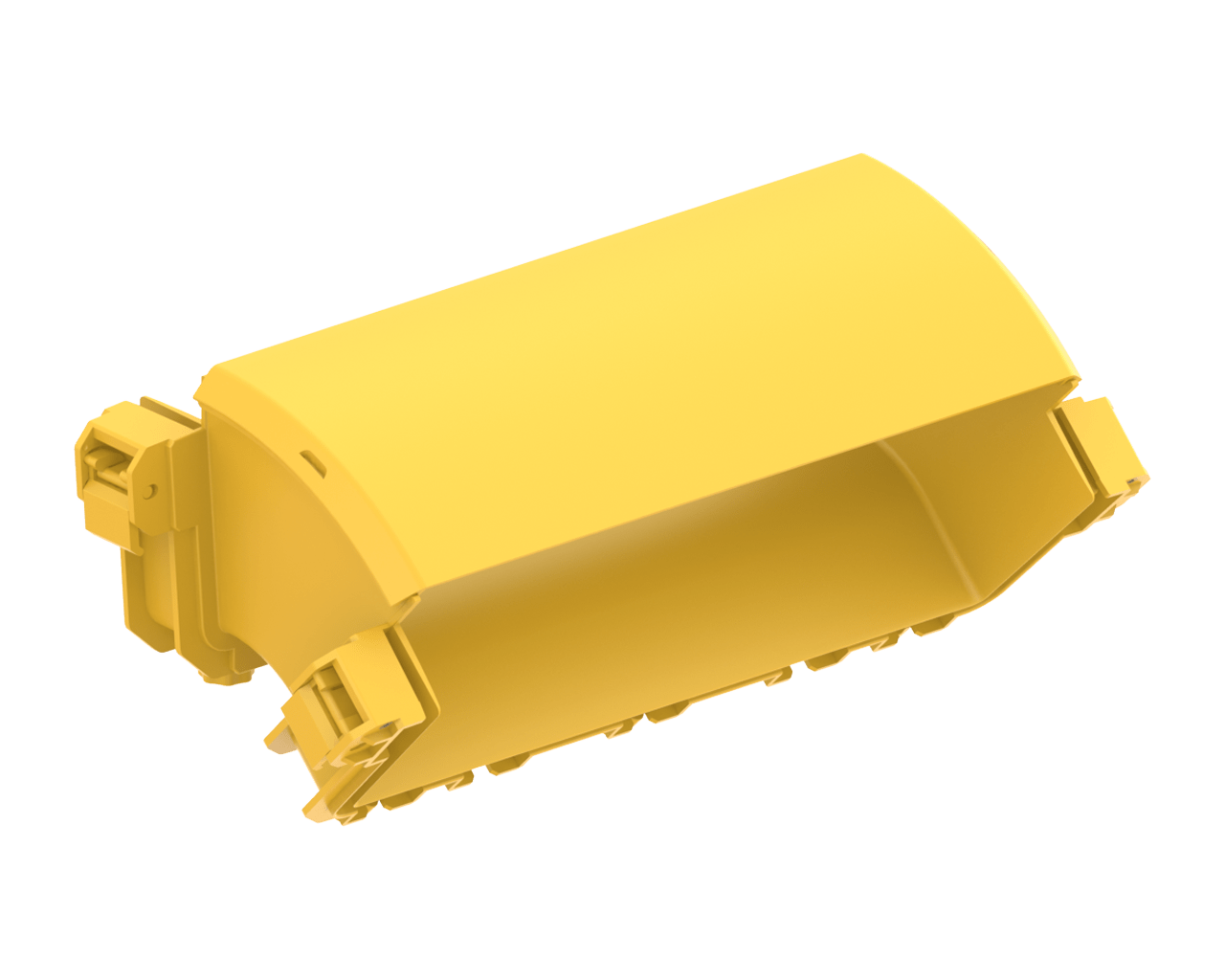

| 30 | ME13019-1X/ME13019-2X | FDS_300mm 45˚ Vertical Outside Elbow | Download |
|
||

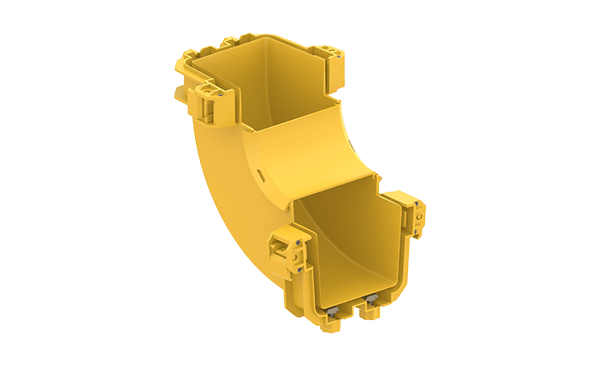

| 31 | ME11010-1X/ME11010-2X | FDS_100mm 90˚ Vertical Inside Elbow | Download |
|
||

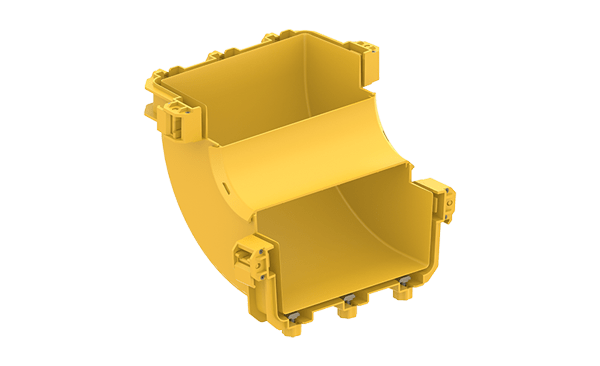

| 32 | ME12010-1X/ME12010-2X | FDS_200mm 90˚ Vertical Inside Elbow | Download |
|
||

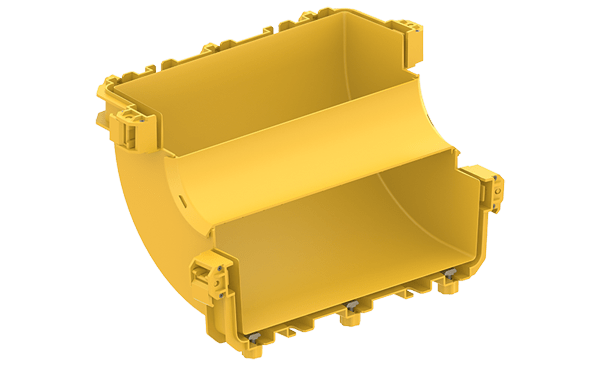

| 33 | ME13010-1X/ME13010-2X | FDS_300mm 90˚ Vertical Inside Elbow | Download |
|
||

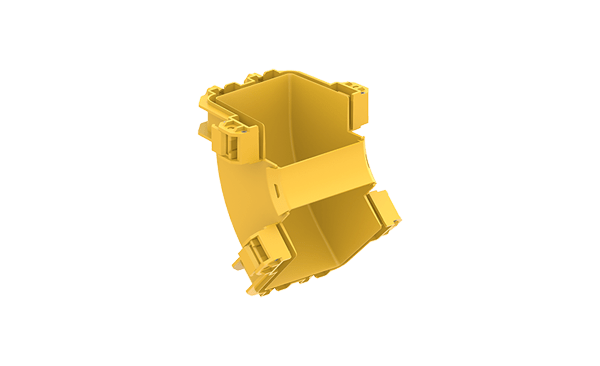

| 34 | ME11020-1X/ME11020-2X | FDS_100mm 45˚ Vertical Inside Elbow | Download |
|
||

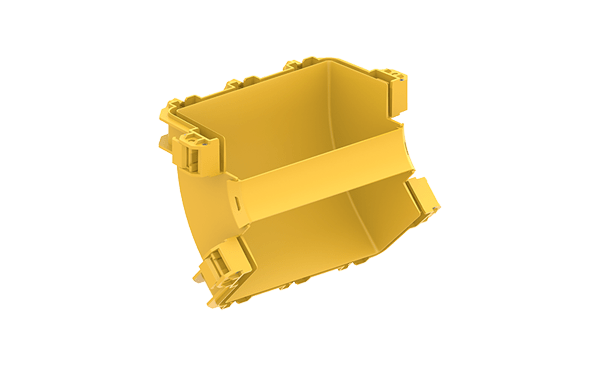

| 35 | ME12020-1X/ME12020-2X | FDS_200mm 45˚ Vertical Inside Elbow | Download |
|
||

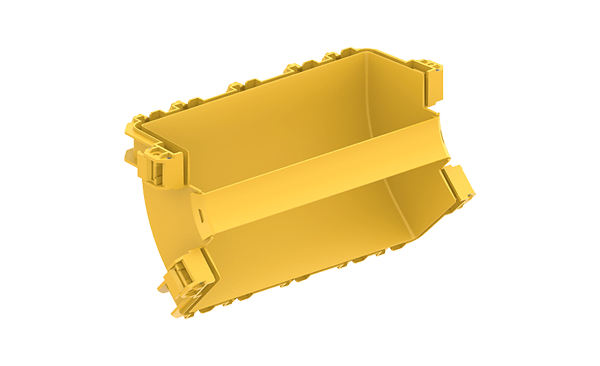

| 36 | ME13020-1X/ME13020-2X | FDS_300mm 45˚ Vertical Inside Elbow | Download |
|
||
| 37 | ME11012-0X | FDS_100mm_Vertical Quick Drop | Download |
|
||

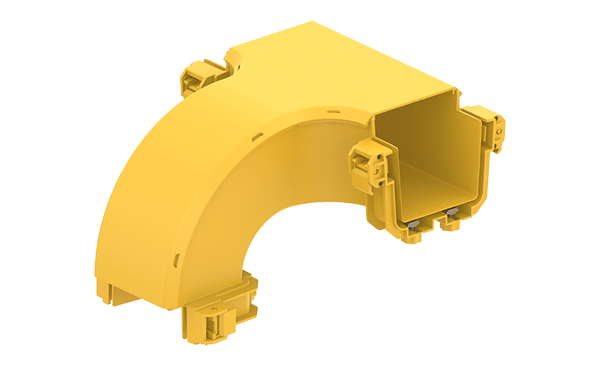

| 38 | ME11013-0X | FDS_100mm Vertical Offset Drop | Download |
|
||

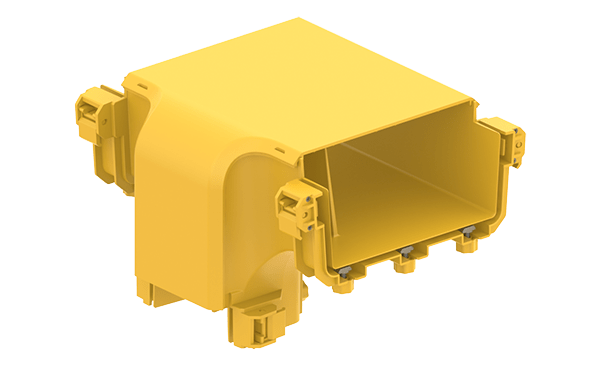

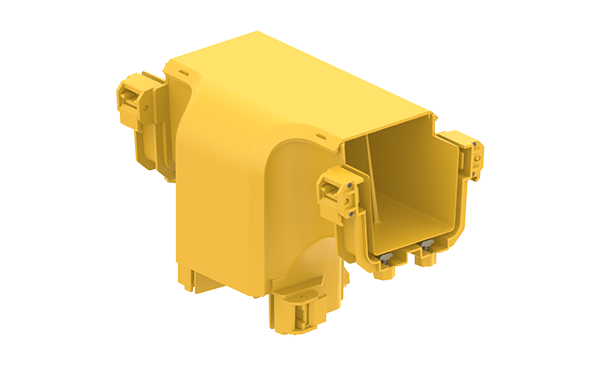

| 39 | ME11014-1X/ME11014-2X | FDS_100-100mm Vertical Line Drop | Download |
|
||
| 40 | ME12014-1X/ME12014-2X | FDS_200-100mm Vertical Line Drop | Download |
|
||

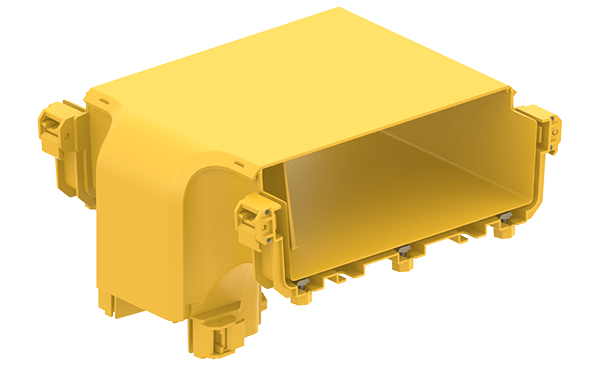

| 41 | ME13014-1X/ME13014-2X | FDS_300-100mm Vertical Line Drop | Download |
|
||

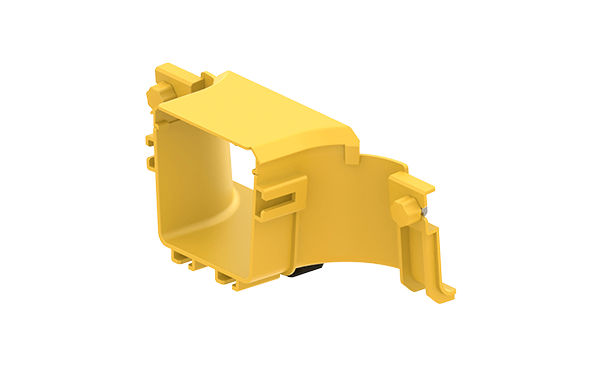

| 42 | ME11006-1X/ME11006-2X | FDS_100mm Horizontal Cut-Off Connection | Download |
|
||
| 43 | ME12006-1X/ME12006-2X | FDS_200mm Horizontal Cut-Off Connection | Download |
|
||

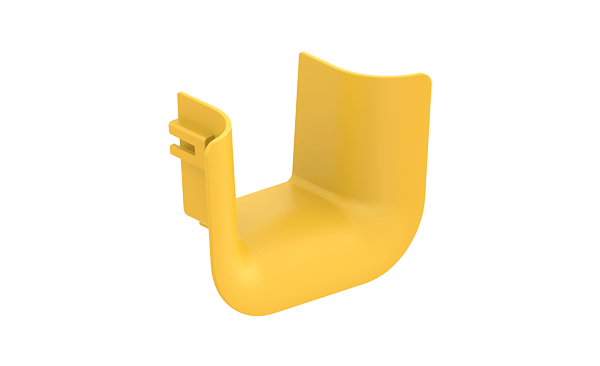

| 44 | ME11015-0X | FDS_100mm Outlet Bend Radius Trumpet | Download |
|
||

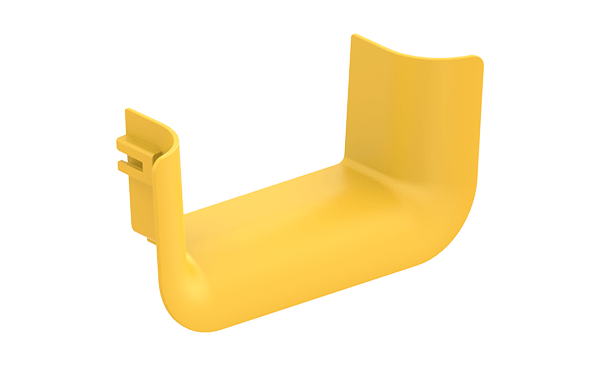

| 45 | ME12015-0X | FDS_200mm Outlet Bend Radius Trumpet | Download |
|
||

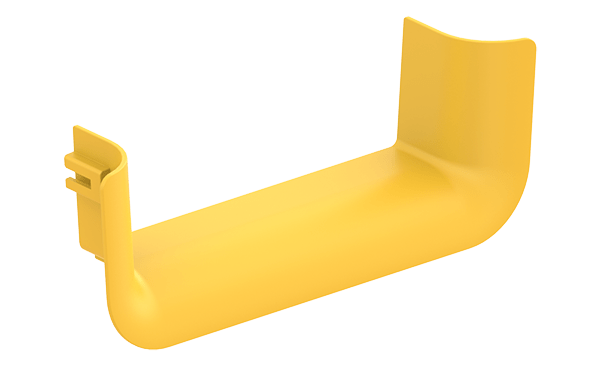

| 46 | ME13015-0X | FDS_300mm Outlet Bend Radius Trumpet | Download |
|
||
| 47 | ME11016-0X | FDS_100mm/1x48mm Outlet Flex Tube Adapter | Download |
|
||

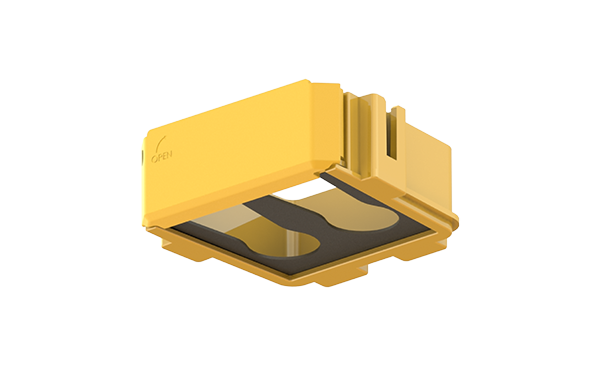

| 48 | ME11017-0X | FDS_100mm/2x36mm Outlet Flex Tube Adapter |
|
|||
