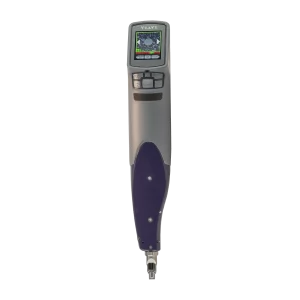

FiberChek Probe Microscope

Product Code FiberChek Probe
Lead Time 30 work days
Request for Quote
Campaign
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • FiberChek Probe Microscope

    Features

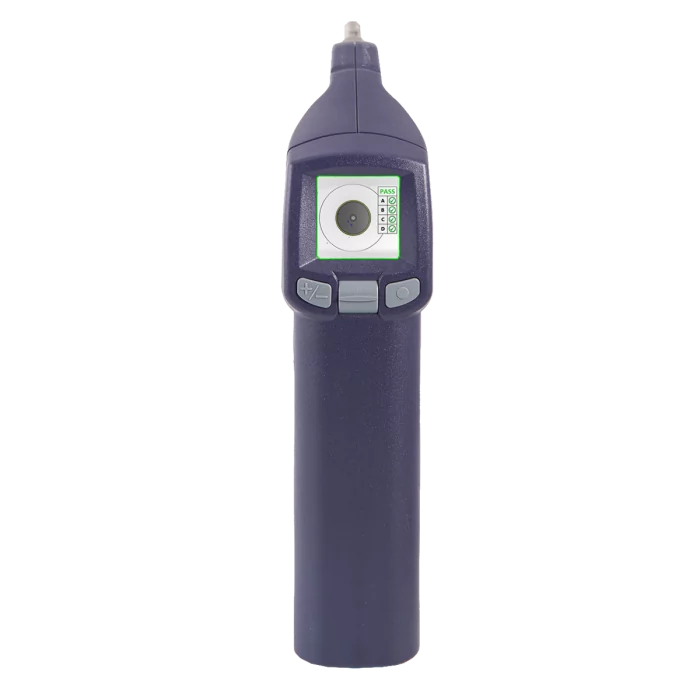

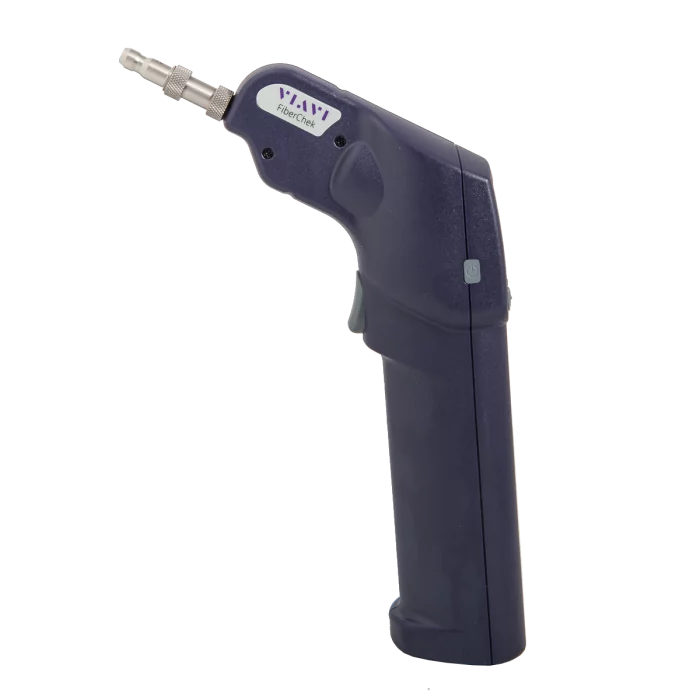

    The FiberChek fiber probe from VIAVI is an "all-in-one" autonomous handheld inspection device that every fiber technician can rely on for all of today's fiber optic inspection needs. VIAVI FiberChek Probe has built-in capabilities for image viewing, auto-focus, Pass/Fail analysis, storing and recalling results. VIAVI FiberChek probe makes fiber inspection an automatic procedure and ensures high performance and precise results. FiberChek probe can be used as on its own and can be connected (using WiFi or USB) to other test devices or computers.

    VIAVI FiberChek Probe Features

    • Inspects fiber end faces for both patch cord and bulkhead
    • Percise endface tests with certification reports
    • Instantly captures, analyzes, and grades fiber end faces

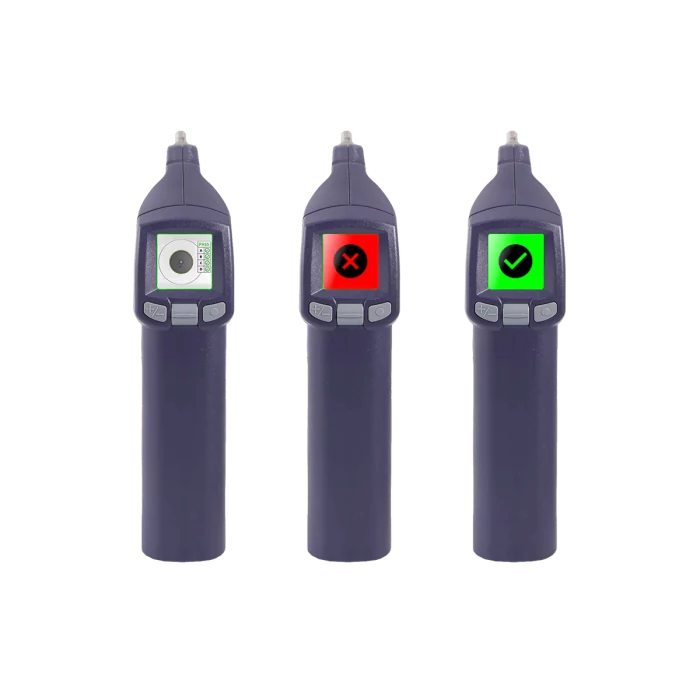

    • PASS/FAIL results according to pre-configured setting
    • Fully autonomous inspection
    • Automate the inspection workflow
    • Accurate and fast test performance
    • Easily access connections in any location
    • Connect with anything and test anywhere!
    • Integrated touch screen with live fiber viewing
    • Auto-Center
    • Auto-Focus
    • Built-in fiber endface analysis
    • User-selectable acceptance profiles
    • Can store results on device or export them
    • WiFi and USB connection capabilities

    VIAVI FiberChek Probe Details


    Dimensions (H x W x D)  218 x 50 x 131 mm (8.6 x 2.0 x 5.2 in)
    Weight  272 g (9.5 oz)
    Display  128 x 128 x 1.5 in OLED touch screen
    Connector  USB 2.0 (Micro-B)
    Power source  Internal LiON battery, USB power
    Run time  6 hr
    Charge time  2 hr (2 A max power source)
    8 hr (500 mA max power source)
    Field-of-view
    values (µm)
    High
    Magnification
    Horizontal: 740 µm
    Vertical: 550 µm
    Low
    Magnification
    Horizontal: 370 µm
    Vertical: 275 µm
    Live image  640 x 480
    Power supply  12 V, 2 A with interchangeable wall
    plug for EU, UK, US, and AU
    Camera sensor  2560 x 1920, 1/2.5 in CMOS,
    5 megapixel
    Particle size detection  <1 µm
    Built-In LCD resolution (in pixels)  Live Image: 128 x 120
    Light source  Blue LED, 100,000+ hr life
    Lighting technique  Coax
    Certification  CE, EN/IEC 61326
    Storage Temperature  -10˚to +70˚C (14˚ to 158˚F)
    Operating Temperature  0˚ to +50˚ C (32˚ to 122˚F)
    Storage Humidity  0-95% non-condensing
    Operating Humidity  10-95% non-condensing
    Save Options  JPG image, PNG image, HTML
    report, PDF report
