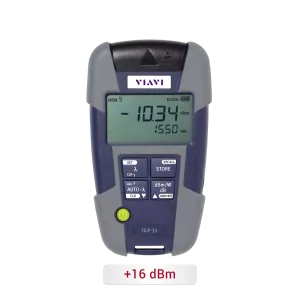

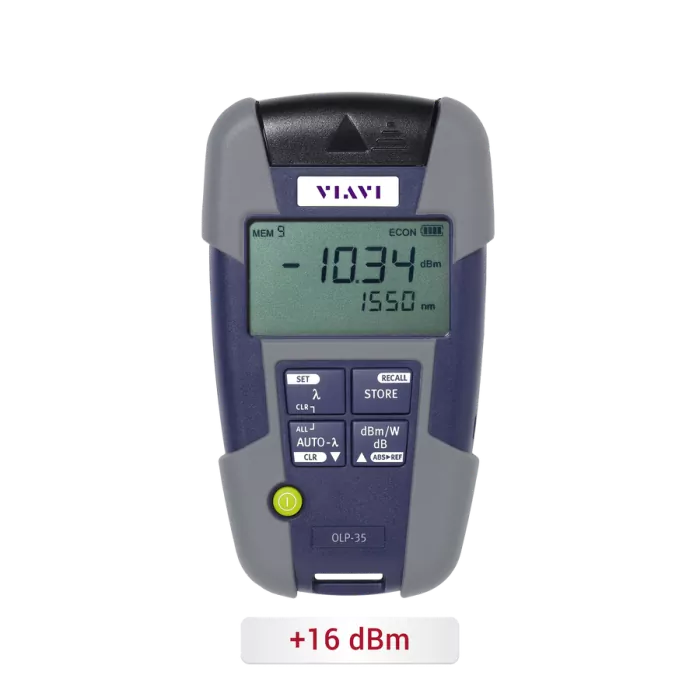

  • OLP-35 Optical Power Meter | Standard

    Features

    OLP-35 is the easy to use professional solution for testing fiber optic networks' insertion loss and continuity using a +16 dBm power range. An Optical Power Meter optimized for standard telecommunication network applications in single-mode. VIAVI OLP-35 is rugged and offers intuitive one-button operation, large display with constant readings, storage capacity and micro-USB data transfer.

    VIAVI OLP-35 Benefits

    • Cost-effective, rugged high-performance solution
    • 3-year recalibration period
    • 1 nm incremental universal wavelength settings
    • Universal optical interface supports all 2.5 mm
    • Can optionally support 1.25 mm connectors

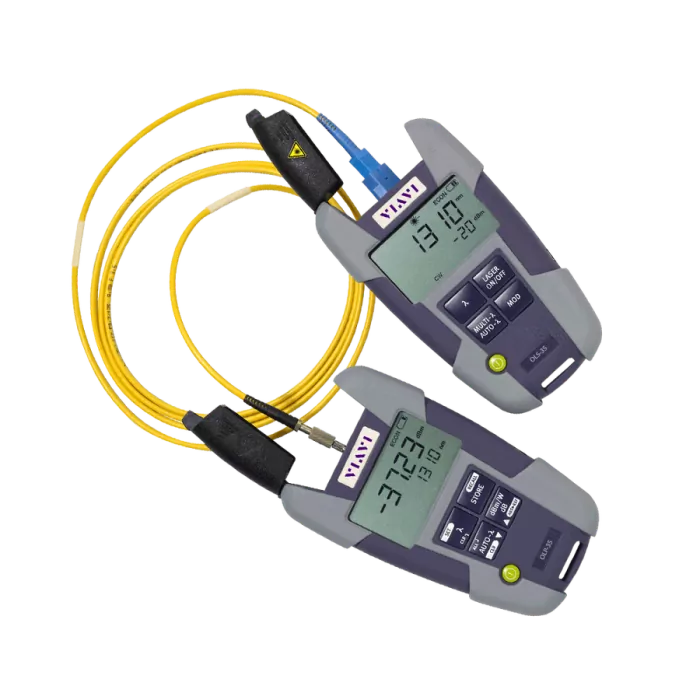

    • Auto wavelength detection and TwinTest mode
    • Internal data storage and PC download capability
    • Quick start operation with no warm-up

    VIAVI OLP-35 Applications

    • Measuring optical power levels and link insertion loss
    • 850/1300 nm single-mode wavelengths
    • Standard level tests for use in telecom, CATV, and military applications

    OLP-34 / OLP-35 / OLP-38 Comparison

    OLP-34 OLP-35 OLP-38
    Detector type InGaAs InGaAs Filtered InGaAs
    Optical interface/connectors Universal 2.5 mm/1.25 mm1 Universal 2.5 mm/1.25 mm1 Universal 2.5 mm/1.25 mm1
    Wavelength range 780 to 1600 nm 780 to 1650 nm 780 to 1650 nm
    Wavelength settings 780 to 1600 nm, step size 1 nm 780 to 1650 nm, step size 1 nm 780 to 1650 nm, step size 1 nm
    Programmable wavelengths 5 presets (customized) 5 presets (customized) 5 presets (customized)
    Calibrated wavelengths 850, 980, 1310, 1490, 1550 nm 850, 980, 1310, 1490, 1550, 1625 nm 850, 980, 1310, 1490, 1550, 1625 nm
    Power range –60 to +5 dBm –65 to +10 dBm –50 to +26 dBm
    Display range –60 to +10 dBm –65 to +13 dBm –50 to +26 dBm
    Max. input power +13 dBm +16 dBm +27 dBm
    Measurement units dB/dBm/W dB/dBm/W dB/dBm/W
    Intrinsic uncertainty2 ±0.2 dB (±5%) ±0.2 dB (±5%) ±0.2 dB (±5%)
    Linearity3 ±0.06 dB (–50 to +5 dBm) ±0.06 dB (–50 to +5 dBm) ±0.06 dB (–32 to +20 dBm)
    Tone detection 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz
    Auto λ mode4 Yes Yes Yes
    Multi λ mode4 TwinTest/serial TripleTest TwinTest/serial TripleTest TwinTest/serial TripleTest
