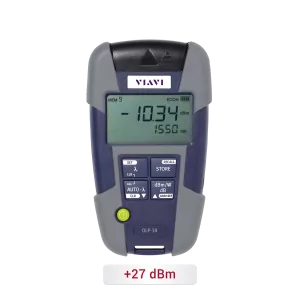

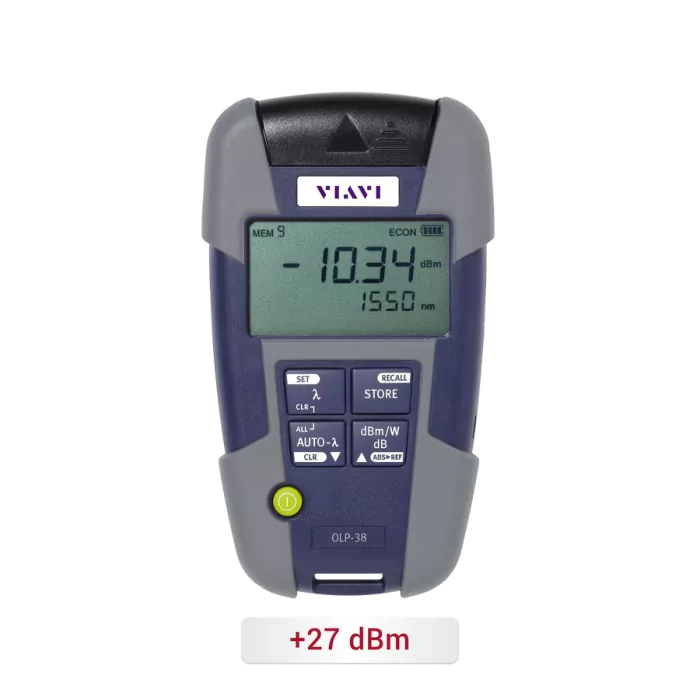

OLP-38 Optical Power Meter | Higher Power
FeaturesThe OLP-38 is a higher-power +27 dbm Optical Power Meter for analog RF transmission in CATV, and for amplified DWDM systems networks in multi-mode or single-mode. VIAVI OLP-38 is the easy to use professional solution for testing fiber optic networks' insertion loss and continuity using a +27 dBm power range. OLP-38 is rugged and offers intuitive one-button operation, large display with constant readings, storage capacity and micro-USB data transfer.
VIAVI OLP-38 Benefits
- Cost-effective, rugged high-performance solution
- 3-year recalibration period
- 1 nm incremental universal wavelength settings
- Universal optical interface supports all 2.5 mm
- Can optionally support 1.25 mm connectors
- Auto wavelength detection and TwinTest mode
- Internal data storage and PC download capability
- Quick start operation with no warm-up
VIAVI OLP-38 Applications
- Measuring optical power levels and link insertion loss
- Enterprise LAN networks
- 850/1300 nm multimode wavelengths
- Access and metro (LAN/WAN) in multimode and single-mode
- Standard level tests for use in telecom, CATV, and military applications
OLP-34 OLP-35 OLP-38 Detector type InGaAs InGaAs Filtered InGaAs Optical interface/connectors Universal 2.5 mm/1.25 mm1 Universal 2.5 mm/1.25 mm1 Universal 2.5 mm/1.25 mm1 Wavelength range 780 to 1600 nm 780 to 1650 nm 780 to 1650 nm Wavelength settings 780 to 1600 nm, step size 1 nm 780 to 1650 nm, step size 1 nm 780 to 1650 nm, step size 1 nm Programmable wavelengths 5 presets (customized) 5 presets (customized) 5 presets (customized) Calibrated wavelengths 850, 980, 1310, 1490, 1550 nm 850, 980, 1310, 1490, 1550, 1625 nm 850, 980, 1310, 1490, 1550, 1625 nm Power range –60 to +5 dBm –65 to +10 dBm –50 to +26 dBm Display range –60 to +10 dBm –65 to +13 dBm –50 to +26 dBm Max. input power +13 dBm +16 dBm +27 dBm Measurement units dB/dBm/W dB/dBm/W dB/dBm/W Intrinsic uncertainty2 ±0.2 dB (±5%) ±0.2 dB (±5%) ±0.2 dB (±5%) Linearity3 ±0.06 dB (–50 to +5 dBm) ±0.06 dB (–50 to +5 dBm) ±0.06 dB (–32 to +20 dBm) Tone detection 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz Auto λ mode4 Yes Yes Yes Multi λ mode4 TwinTest/serial TripleTest TwinTest/serial TripleTest TwinTest/serial TripleTest
