OLS-35 Optical Light Source | Single-mode

Product Code MTVC030
Lead Time 30 work days
Brand VIAVI
Request for Quote
Campaign
  • Features
  • Documents
  • Comments (0)
  • Request for Quote

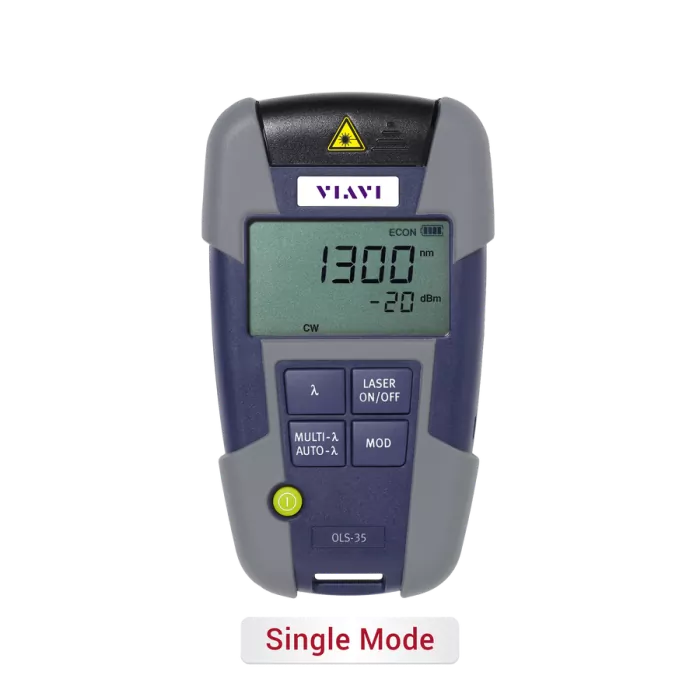

  • OLS-35 Optical Light Source | Single-mode

    Features

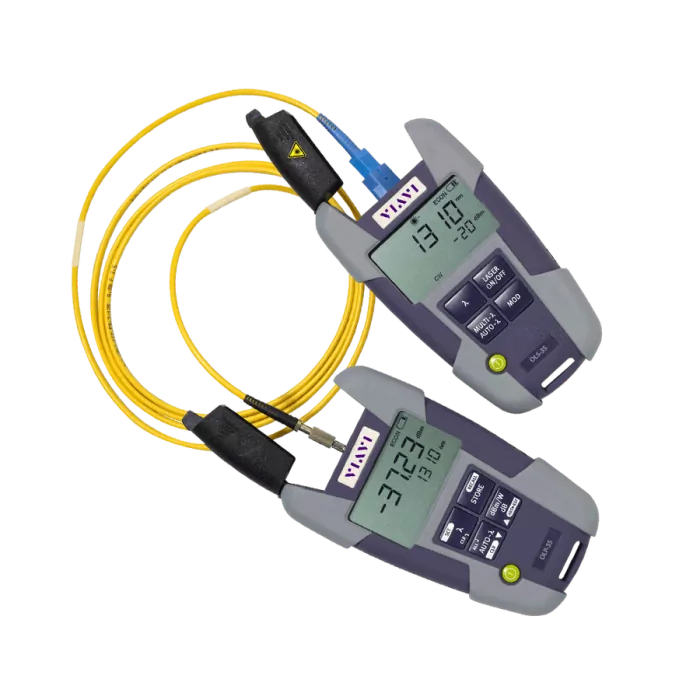

    OLS-35 is used specifically for standard single-mode telecommunication network applications with 1310/1550 nm wavelength, all it also has fixed ST and LC adapters, and switchable FC, SC, ST and LC adapters. OLS-35 optical light source is small, shock resistant, water splash resistant and can be powered by Micro USB and AA batteries, for 30 hours. SmartPocket small and rugged optical light source VIAVI OLS-35 is used with power meters for testing loss and continuity in fiber optic networks.

    VIAVI OLS-35 Benefits

    • Cost-effective, rugged, and compact
    • Switchable optical adapters for maximum flexibility
    • Auto λ and TwinTest transmission modes
    • 3-year calibration
    • Combines up to 2 wavelengths in SM

    VIAVI OLS-35 Applications

    • Link insertion loss measurements
    • Continuity checks
    • 1310/1550 nm Single-mode wavelengths
    • Standard single-mode wavelengths for telecom, CATV, and military application
    OLS-34
    Multimode Light Source
    OLS-35
    Single-Mode Light Source
    OLS-36
    Quad Light Source
    Source type LED Laser LED/Laser
    Laser safety IEC 60825-1: 2003
    IEC 60825-1: 2007
    IEC 60825-1: 2007 IEC 60825-1: 2003
    IEC 60825-1: 2007
    Fiber type MM (50/125 μm) SM (9/125 μm) MM (50/125 μm)/SM (9/125 μm)
    Optical interface type PC/1 single port for all wavelengths PC/1 single port for all wavelengths PC/1 port for MM and 1 port for SM
    Optical interface connectors Fixed: ST
    Switchable: LC, FC, SC, ST
    Fixed: LC
    Switchable SC, FC, ST, LC
    Switchable: SC, FC, ST, LC
    Central wavelength 850 nm (±20 nm)
    1300 nm (–20 nm/+40 nm)
    1310 nm (±20 nm)
    1550 nm (±20 nm)
    850 (±20 nm)
    1300 (–20 nm/+40 nm)
    1310 (±20 nm)
    1550 (±20 nm)
    Spectral width1 <170 nm <5 nm <170 nm/<5 nm
    Output power –20 dBm2 –7 dBm –20 dBm2/–7 dBm
    Stability short term (15
    min)3
    ±0.02 dB ±0.02 dB ±0.02 dB
    Stability long term (8h)3 ±0.05 dB ±0.05 dB ±0.05 dB
    Tone generation 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz
    Auto λ mode4 Yes Yes Yes
    Multi λ mode4 Yes (2 λs) Yes (2 λs) Yes (4 λs)
    Launch conditions CPR capability for MM launch
    conditions
    CPR capability for MM launch
    conditions
