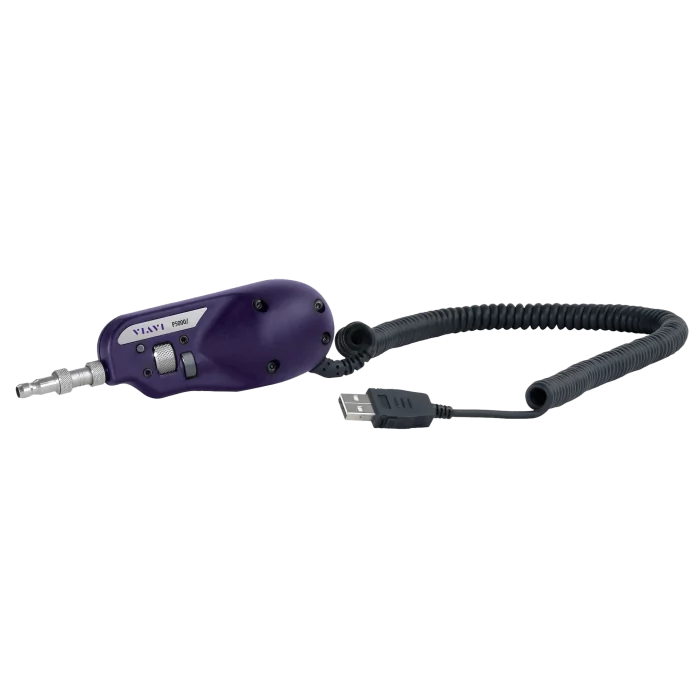

P5000i Fiber Microscope

Product Code MTVC228
Lead Time 30 work days
Request for Quote
Campaign
Alarm Icon Heart icon
  • Features
  • Documents
  • Comments (0)
  • Request for Quote
  • P5000i Fiber Microscope

    Features

    The P5000i fiber microscope provides decisive and objective Pass/Fail analysis of fiber optic lines, and generate reports based on industry standards. The VIAVI P5000i is a digital handheld microscope that automatically inspects and certifies the end faces of fiber optic connectors according to industry standards and specifications. VIAVI P5000i digital microscope provides instant pass/fail results at the push of a button, eliminating subjective and time-consuming guesswork.

    VIAVI P5000i Digital Microscope Features

    • Connects via USB with multiple devices including Viavi tools, laptops/PCs, and Android mobile devices
    • Repeatable pass/fail analysis eliminates subjective guesswork from the measurement process
    • User-selectable acceptance profiles allow certification to an acceptance criteria
    • Includes FiberChekPRO™ software for analysis and reporting with laptops/PCs
    • Automatic image centering ensures the fiber always appears in the center of the screen
    • Detailed report generation to certify and document results
    • Dual magnification (200X and 400X) functionality provides high-level and detailed inspection and analysis
    • Magnification toggle button allows easy switching in both live and analysis views
    • Accepts FBPT series tips for comprehensive support for all connector types used in today’s network

    VIAVI P5000i Digital Microscope Details


    Weight  110 g (3.88 oz)
    Dimensions (w × h × d)  140 x 46 x 44 mm (5.5 x 1.8 x 1.7 in)
    Low mag field-of-view
    (FOV)
    Horizontal: 740 μm
    Vertical: 550 μm
    High mag field-of-view
    (FOC)
    Horizontal: 370 μm
    Vertical: 275 μm
    Live image  640 x 480 fps
    Connector  USB 2.0 (backwards compatible to USB 1
    Cord length  183 cm (6 ft)
    Camera sensor  2560 x 1920, 1/2.5-in CMOS
    Particle size detection  <1 μm
    Light source  Blue LED, 100,000+ hour life
    Lighting technique  Coaxial
    Power source  USB Port
    Certification  CE
