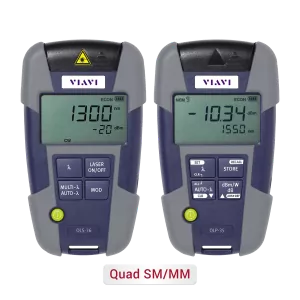

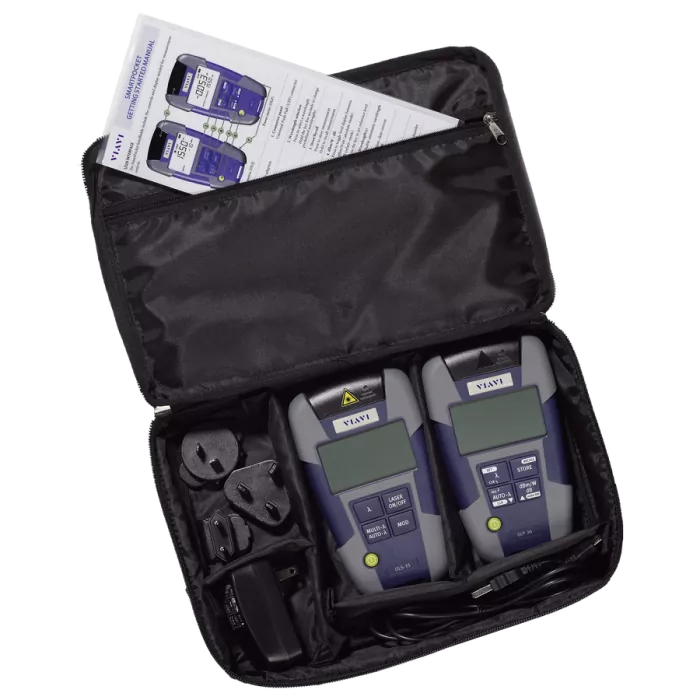

OMK-36P Fiber Optic Test Kit | Quad SM/MM

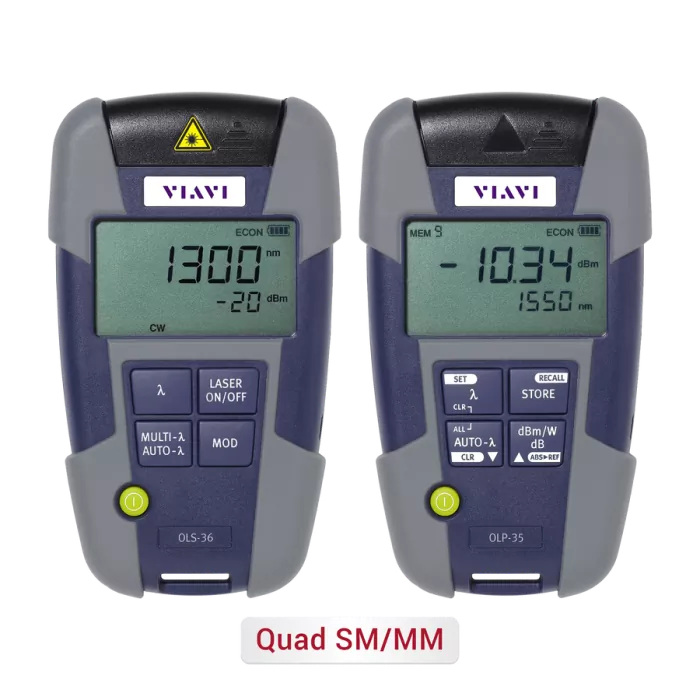

FeaturesOMK-36 is suitable for Multi-mode and Single-mode with quad wavelengths, 850/1300/1310/1550 nm; and it has a push/pull adapter interface UPP. Combining OLS-36 light source and OLP-35 power meter, from VIAVI, OMK-36 is best for power level and loss measurement tests in all Access, FTTx, Metro, Core, LAN, WAN and Enterprise fiber optic networks. VIAVI optic test kits are globally used for installing and maintaining fiber optic networks, and performing insertion loss measurements, and continuity checks.
VIAVI OMK-36 Features
- Essential optical test kit for enterprise applications
- Access and metro (LAN/WAN) networks
- Multi-mode and Single-mode testing combinations
- A lightweight, shock-resistant splash-proof design
- Push/Pull (UPP) 2.5 mm adapter -1.25 mm optional-
- Auto-ʎ automatic wavelength identification
- TwinTest automatically tests two wavelengths
- Error-free and efficient testing
- Storage capability of 100 results
- Micro USB port fast report transfer
- Compatible with SmartReporter free software
- Pass/Fail report generation for PDF or Excel
VIAVI OMK-36 Applications
Power level test, link Insertion loss measurement, continuity checking and tone detection for Access/FTTX, Metro/Core and LAN/WAN Enterprise networks with Multi-mode and Single-mode testing combinations in 850/1300/1310/1550 nm wavelengths.
instruments Applications Kit Light Source Power Meter Wavelength MM SM Access/FTTX Metro/Core LAN/WAN Enterprise Enterprise OMK-34 OLS-34 OLP-34 850/1300nm ✓ ✓ OMK-36 OLS-36 OLP-35 850/1300nm 1310/1550nm ✓ ✓ ✓ ✓ ✓ Service Providers OMK-35 OLS-35 OLP-35 1310/1550nm ✓ ✓ ✓ OMK-38 OLS-35 OLP-38 1310/1550nm ✓ ✓
Video overlay✓
CATV
OMK-34
Enterprise KitOMK-36
Enterprise Quad KitOMK-35
Service Provider KitOMK-38
Service Provider Hi-Power KitLight Source OLS-34 OLS-36 OLS-35 OLS-35 Fiber type MM (50/125 µm) MM (50/125 µm)/SM SM SM Output power -20 dBm -20 dBm/-7 dBm -7 dBm -7 dBm Wavelength uncertainty ± 20 nm Connector type Switchable adapters Power Meter OLP-34 OLP-35 OLP-35 OLP-38 Power range -60 to +5 dBm -65 to +10 dBm -65 to +10 dBm -50 to +26 dBm Max. input power +13 dBm +16 dBm +16 dBm +27 dBm Connector type Universal push pull (UPP), interface 2.5 mm (1.25 mm as accessory) Data storage 100 results General Loss Test Set Specifications 850 nm ✓ ✓ 1300 nm ✓ ✓ 1310 nm ✓ ✓ ✓ 1550 nm ✓ ✓ ✓ Loss dynamic range 40 dB 40/58 dB 58 dB 43 dB General Specifications Dimension w x h x d 280 x 215 x 50 mm (11 x 8.5 x 2 in) Weight 0.6 kg (1.32 lb)
